9355 Micrometer

Micrometer, 0.5 in. Travel, Unthreaded, For 9062 Series Stages

Model: 9355

$126

In Stock

Compare

Add to List

Product Series Overview

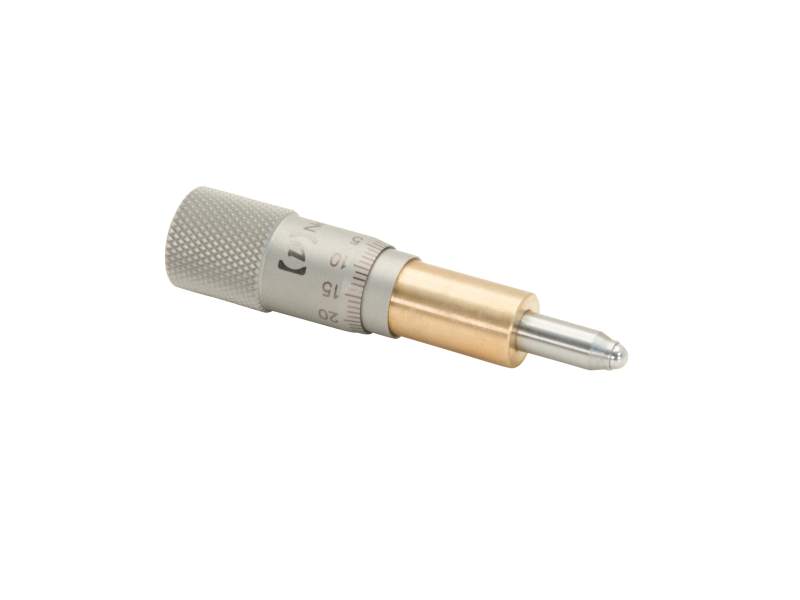

Smooth-bore Micrometer Heads

This high-quality micrometer feature a smooth-bore unthreaded mounting shank for use with slip-in, clamp style mounts. The 9355 Micrometer is a high-quality 0.5 inch travel micrometer that is ideal for use with our 9062 Series gothic-arch-bearing translation stages. The Model 9354 provides smooth and accurate motion over its 0.5 inch travel range.

Specifications

Technical Specs

Travel Range

12.7 mm
Adjustment Screw Thread

50.8 TPI
Drive Type

Knob
Graduations

10 µm
Axial Load Capacity

40 N

Sensitivity

1.0 µm
Drive Screw Pitch

0.5 mm
Mounting

9.5 mm Shank

Travel Range

12.7 mm
Adjustment Screw Thread

50.8 TPI
Drive Type

Knob
Graduations

10 µm
Axial Load Capacity

40 N

Sensitivity

1.0 µm
Drive Screw Pitch

0.5 mm
Mounting

9.5 mm Shank

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

910162B.pdf (266.8 kB, PDF)

Related Products

Customers Who Bought This Item Also Bought

Description	Compatibility	Avail.	Price

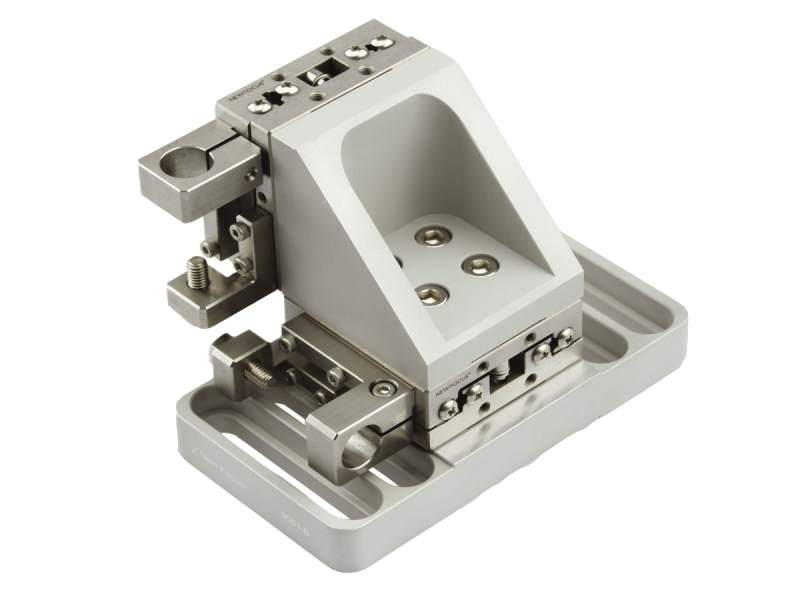

9062-XZ XZ Linear Stage, Gothic-Arch Bearings, 12.7 mm Travel, 8-32 & 1/4-20	IMPERIAL	In Stock	$933

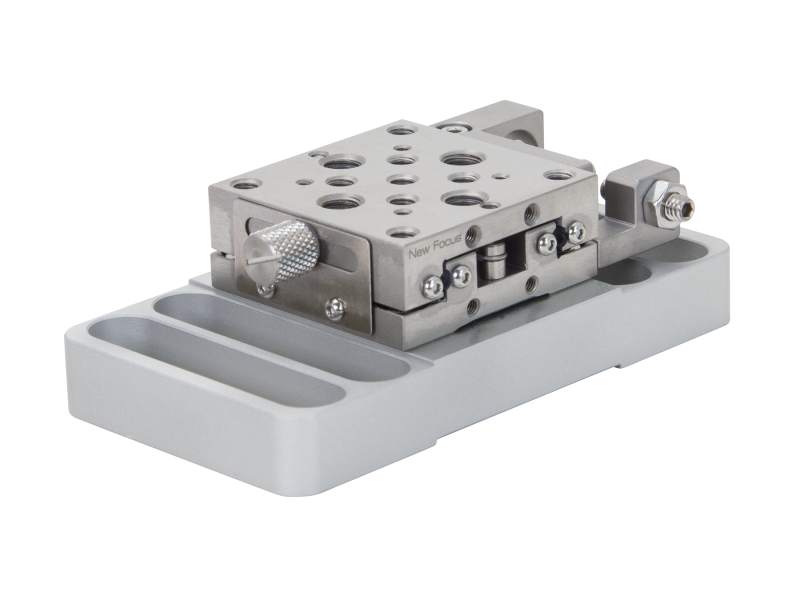

9062-X Manual Linear Stage, Gothic-Arch Bearings, 12.7 mm Travel, 8-32 & 1/4-20	IMPERIAL	Contact Us	$468

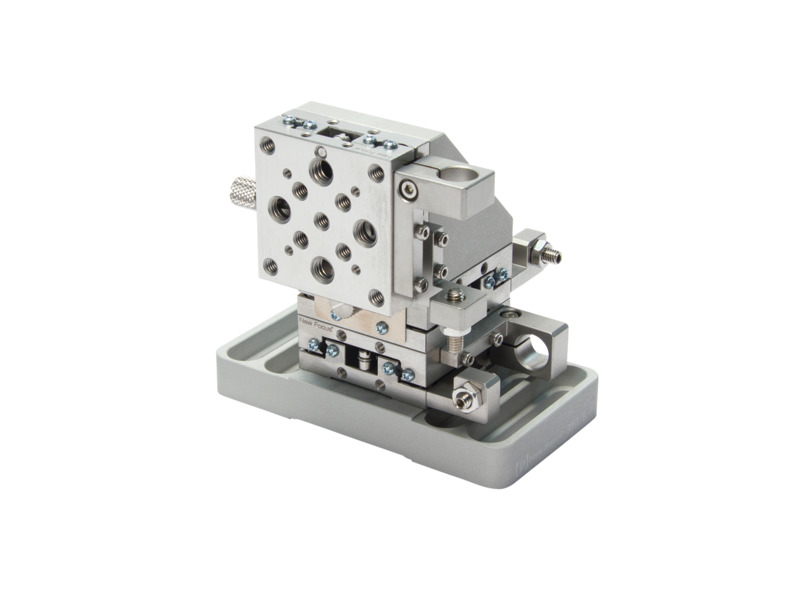

9062-XYZ XYZ Linear Stage, Gothic-Arch Bearings, 12.7 mm Travel, 8-32 & 1/4-20	IMPERIAL	In Stock	$1,316
