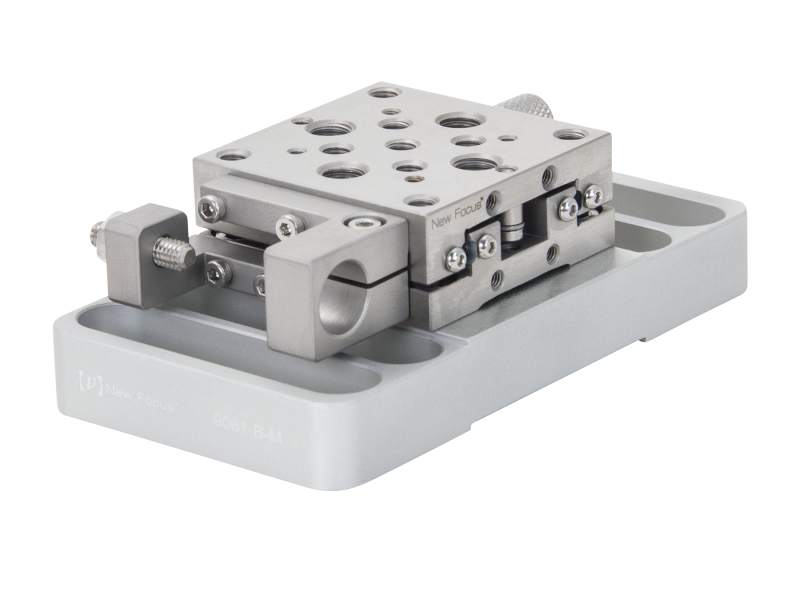

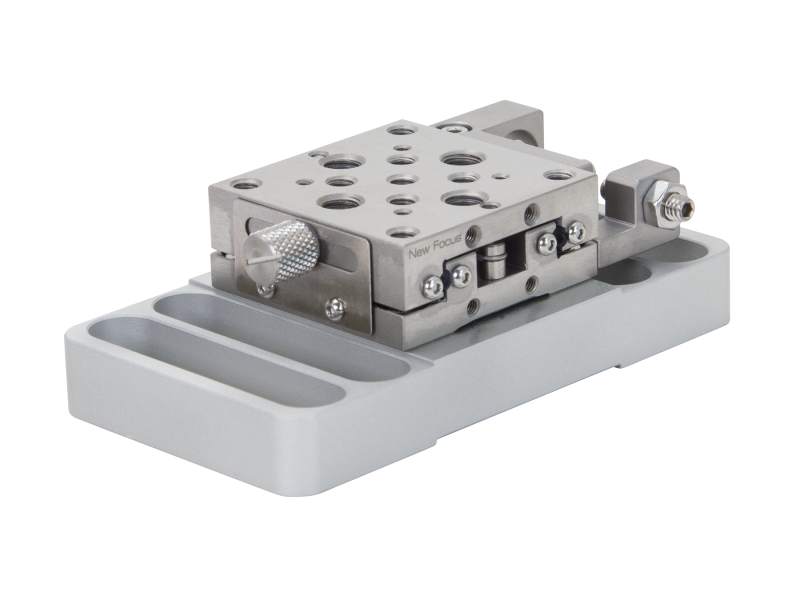

Manual Linear Stage, Gothic-Arch Bearings, 12.7 mm Travel, 8-32 & 1/4-20

Technical Specs

  • Axes of Travel
    X
  • Maximum Stage Travel
    12.7 mm
  • Thread Type
    2-56, 8-32, and 1/4-20
  • Load Capacity
    84 N
  • Vertical Load Capacity
    26 N
  • Material
    Aluminum
  • Bearings
    Gothic-Arch Bearings
  • Platform Size
    40 x 40 mm
  • Pitch
    15 arc sec
  • Roll
    10 arc sec
  • Yaw
    20 arc sec
  • Recommended Adjustment Screw
  • Recommended Micrometer
  • Recommended Picomotor Actuator
  • Travel Requirement
    12.7 to 25.4 mm
