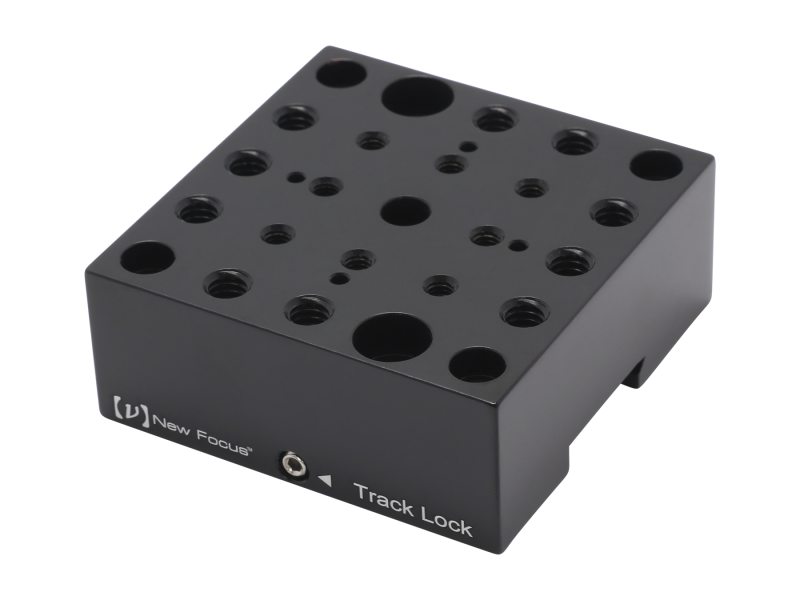

Riser Carrier, 1.0 in. Height, M4 and M6

Riser Carrier, 1.0 in. Height, M4 and M6

Model: 9027-M

$103

In Stock

Compare

Add to List

Product Series Overview

19 mm Surface Mount Optical Rails & Carriers

The 9027-M Riser Carrier allows you to add 1.0 inch of extra height and a generous assortment of M4 and M6 threads and through holes to our stages. It can be mounted either above or below the stage.

Specifications

Technical Specs

Type

Riser Carrier
Thread Type

M4 and M6
Height

25.4 mm

Length

63.5 mm
Width

63.5 mm

Type

Riser Carrier
Thread Type

M4 and M6
Height

25.4 mm

Length

63.5 mm
Width

63.5 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9027b-Drawing (111.8 kB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		9923 Double-Ended Set screw, 8-32, 0.75 in. Long, Qty10	UNIVERSAL		In Stock	$28
		9921 Adapter Washer, 1/4-20 (M6) to 8-32 (M4), Qty 25	UNIVERSAL		In Stock	$12.70

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		9026-M Riser Carrier, 0.5 in. Height, M4 and M6	METRIC		In Stock	$90
		9036-M Riser Carrier, Pint-Sized, 0.5 in. Height, M4 and M6 Threads	METRIC		In Stock	$84

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		9020NF ezTrac Optical Rail, 12.0 in. Length	UNIVERSAL		4 Weeks	$118
		9029-M 90 Degree Adapter, ezTrac Optical Rail, Metric	METRIC		In Stock	$133
		9021-M Baseplate, 9064-M Series Stages, M4 & M6	METRIC		In Stock	$90
		9023NF ezTrac Optical Rail, 6.0 in. Length	UNIVERSAL		In Stock	$74
		9022NF ezTrac Optical Rail, 2.5 in. Length	UNIVERSAL		In Stock	$41
