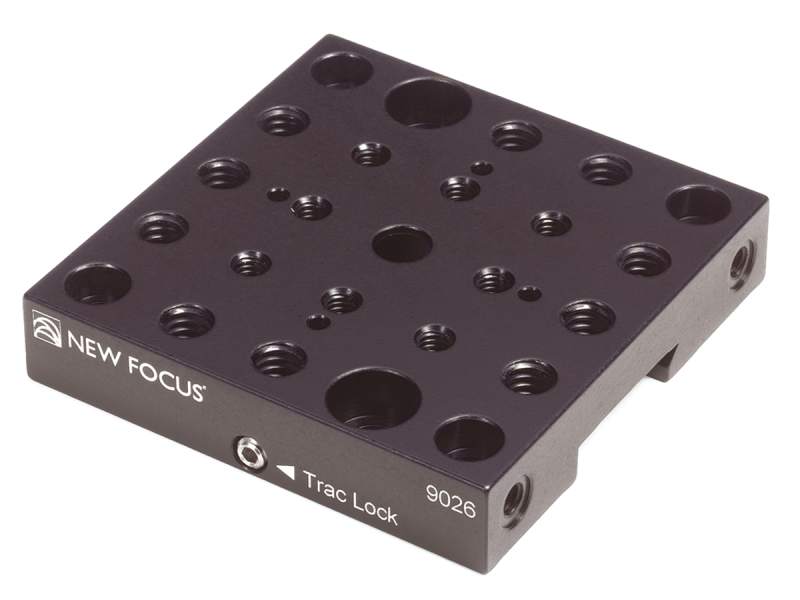

Riser Carrier, 0.5 in. Height, M4 and M6

Riser Carrier, 0.5 in. Height, M4 and M6

Model: 9026-M

$90

In Stock

Compare

Add to List

Product Series Overview

19 mm Surface Mount Optical Rails & Carriers

The 9026-M Riser Carrier is 1/2 inch thick and allows you to add extra height and a generous assortment of M4 and 1/4-20 M6 threads and through holes to our stages. It can be mounted either above or below the stage.

Specifications

Technical Specs

Type

Riser Carrier
Thread Type

M4 and M6
Height

12.7 mm

Length

63.5 mm
Width

63.5 mm

Type

Riser Carrier
Thread Type

M4 and M6
Height

12.7 mm

Length

63.5 mm
Width

63.5 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9026b-Drawing (118.8 kB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		9921 Adapter Washer, 1/4-20 (M6) to 8-32 (M4), Qty 25	UNIVERSAL		In Stock	$12.70
		9923 Double-Ended Set screw, 8-32, 0.75 in. Long, Qty10	UNIVERSAL		In Stock	$28

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		9036-M Riser Carrier, Pint-Sized, 0.5 in. Height, M4 and M6 Threads	METRIC		In Stock	$84
		9027-M Riser Carrier, 1.0 in. Height, M4 and M6	METRIC		In Stock	$103

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		9020NF ezTrac Optical Rail, 12.0 in. Length	UNIVERSAL		In Stock	$118
		9029-M 90 Degree Adapter, ezTrac Optical Rail, Metric	METRIC		In Stock	$133
		9023NF ezTrac Optical Rail, 6.0 in. Length	UNIVERSAL		In Stock	$74
		9022NF ezTrac Optical Rail, 2.5 in. Length	UNIVERSAL		In Stock	$41
		9021-M Baseplate, 9064-M Series Stages, M4 & M6	METRIC		In Stock	$90
