Baseplate, 9064-M Series Stages, M4 & M6

Model: 9021-M

$90

In Stock

Compare

Add to List

Product Series Overview

Translation Stage Base Plates, 906x Series

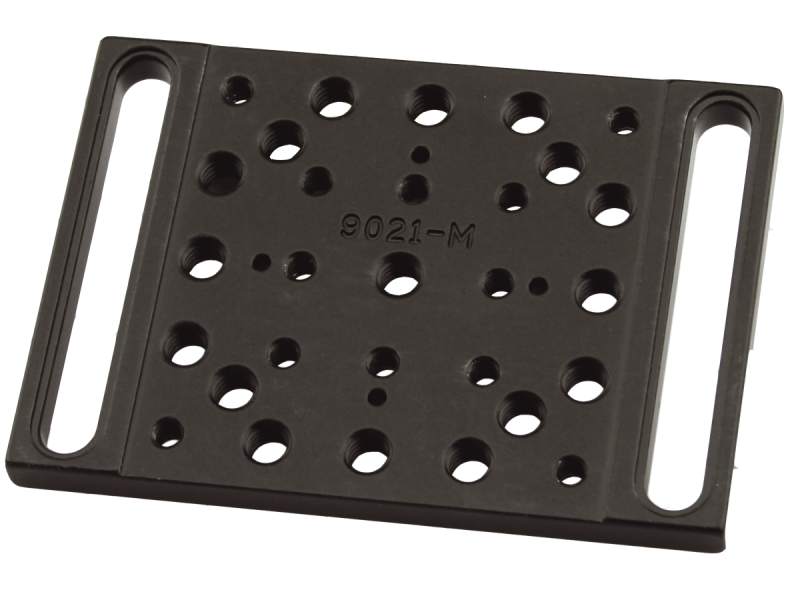

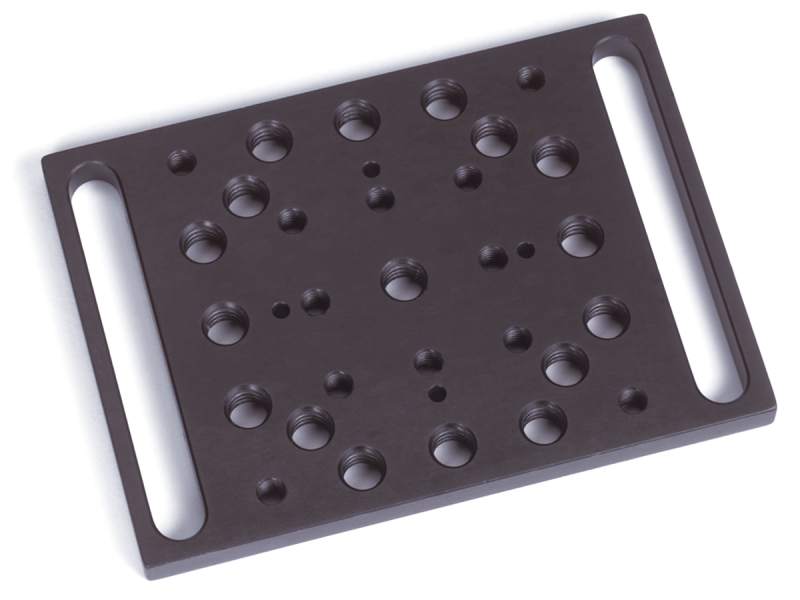

The 9021-M Translation Stage Baseplate is used with our translation stages to create a stage with conventional mounting slots. A variety of mounting holes allows you to mount the e⋅z⋅Trac™ Rail to the stage in either the X or Y direction, or even at 45°. M6 thru slots.

Specifications

Technical Specs

Type

Base Plate
Height

6.35 mm
Length

88.9 mm
Width

63.5 mm

Thread Type

M4 and M6
Material

Aluminum
Use

Universal

Type

Base Plate
Height

6.35 mm
Length

88.9 mm
Width

63.5 mm

Thread Type

M4 and M6
Material

Aluminum
Use

Universal

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9021b-Drawing (105.7 kB, PDF)

Other

MKS EU ROHS3 - 9021.pdf (223.4 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
9024-M Button Head Screw Kit, M6, Quantity 25	METRIC	In Stock	$19.40
M-SK-M6A Black Oxide Screw Kit, M6, Assortment, Qty 261	UNIVERSAL	In Stock	$72
BB-M Optical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL	In Stock	$35
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock	$19.40
M-BDK-1 Ball Driver Tool Set, Includes: 1.5, 2, 2.5, 3, 4 & 5 mm Wrenches	METRIC	In Stock	$38

Similar

Description	Compatibility	Avail.	Price
9039-M 90 Degree Adapter, Pint-Sized, ezTrac Optical Rail, Metric	METRIC	In Stock	$133
9038-M Spacer Plate, 9065-M Series Stages, M4 & M6	METRIC	In Stock	$56
9028-M Spacer Plate, 9064-M Series Stages, M4 & M6	METRIC	In Stock	$74

Compatible

Description	Compatibility	Avail.	Price
9029-M 90 Degree Adapter, ezTrac Optical Rail, Metric	METRIC	In Stock	$133
9023NF ezTrac Optical Rail, 6.0 in. Length	UNIVERSAL	In Stock	$74
9022NF ezTrac Optical Rail, 2.5 in. Length	UNIVERSAL	In Stock	$41
9020NF ezTrac Optical Rail, 12.0 in. Length	UNIVERSAL	In Stock	$118
