XYZ Linear Stage, Triple Divide, 25.4 mm, YZ Pico, X Micro, M4, M6

1.0 in. Travel Ball Bearing Piezo Linear Stages

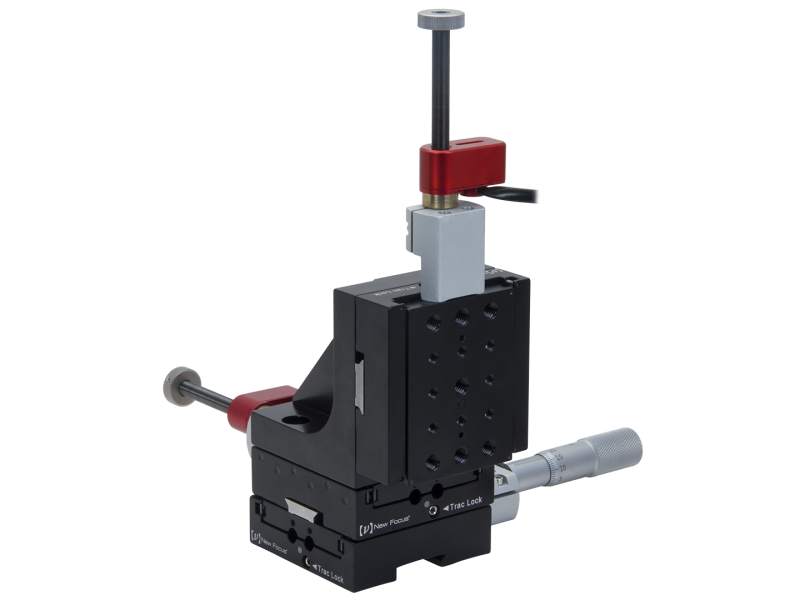

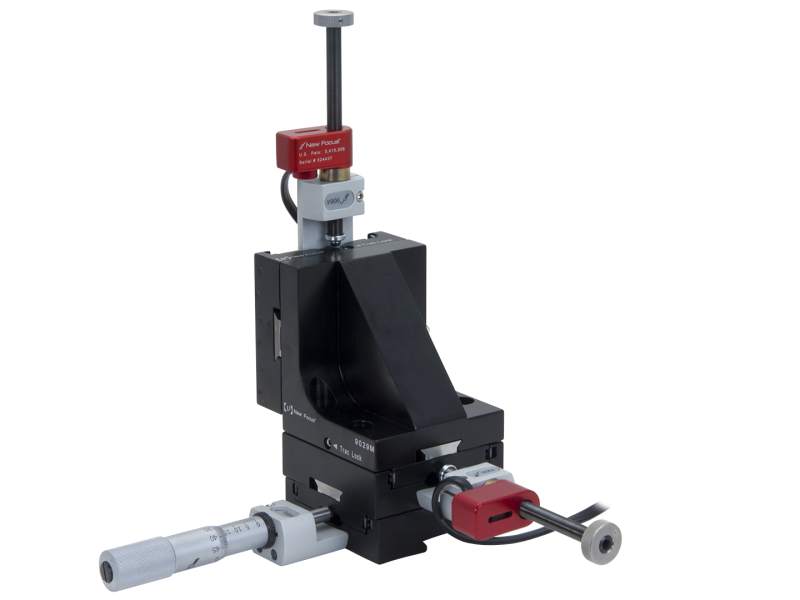

The 9064-XYZ-NPP-M Motorized Triple Divide Translation Stage incorporates our Picomotor™ actuators in the Y and Z axes and a micrometer in the X axis of our Triple Divide™ translation stage to meet your 25.4 mm XYZ travel laboratory applications. All necessary clamps, brackets, and baseplates are included so that the stage can be used right out of the box. Some assembly is required. The Triple Divide translation stage system is based on the unique e⋅z⋅Trac™ rail system and delivers the stability of an integrated stage but is effortlessly adaptable and easy to use. Because of its modularity, these stages are extremely economical. M4 and M6 mounting threads.

Specifications

Technical Specs

Travel Range
25.4 mm
Axes of Travel
XYZ
Motorized Axes
Y, Z
Micrometer Axes
X
Included Actuators
Picomotor:
Micrometer: 9353
Maximum Speed
0.02 mm/s
Minimum Incremental Motion
<30 nm (Picomotor)
Resolution
0.5 µm (Micrometer)
Centered Load Capacity
88 N
Vertical Load Capacity
22 N

Bearings
Ball Bearings
Material
Aluminum
Feedback
Open Loop
Cable Length
2.1 m
Connector Type
4-Pin
Thread Type
M4 and M6
Platform Size
63.5 x 63.5 mm
Operating Temperature
10 to 40°C

Travel Range
25.4 mm
Axes of Travel
XYZ
Motorized Axes
Y, Z
Micrometer Axes
X
Included Actuators
Picomotor:
Micrometer: 9353
Maximum Speed
0.02 mm/s
Minimum Incremental Motion
<30 nm (Picomotor)
Resolution
0.5 µm (Micrometer)
Centered Load Capacity
88 N
Vertical Load Capacity
22 N

Bearings
Ball Bearings
Material
Aluminum
Feedback
Open Loop
Cable Length
2.1 m
Connector Type
4-Pin
Thread Type
M4 and M6
Platform Size
63.5 x 63.5 mm
Operating Temperature
10 to 40°C

Resources & Downloads

2D Product Drawings

20029064-Xsm(107.8 kB, PDF)

Literature

Picomotor FAQ(3.1 MB, PDF)
