Picomotor Driver, Single-Axis, PCB-Mountable
Picomotor Driver, Single-Axis, PCB-Mountable
Model: 8712
3 Weeks
Product Series Overview

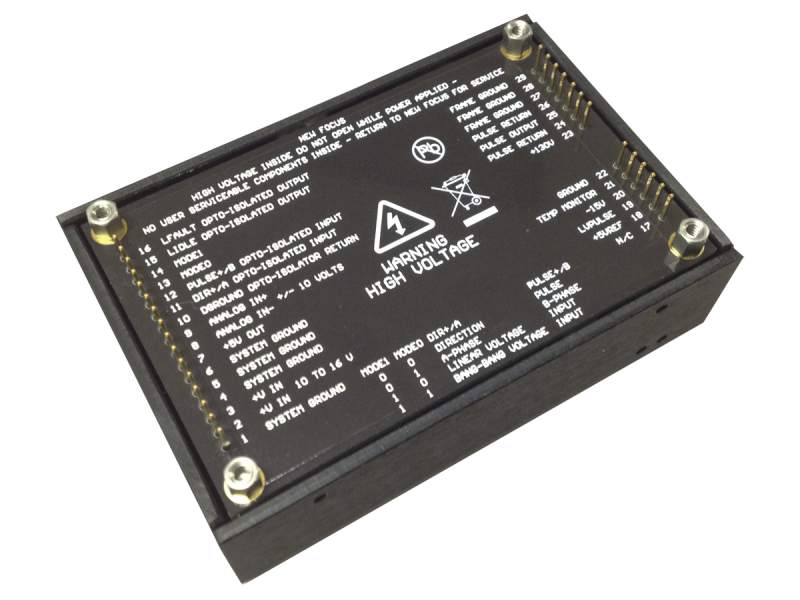

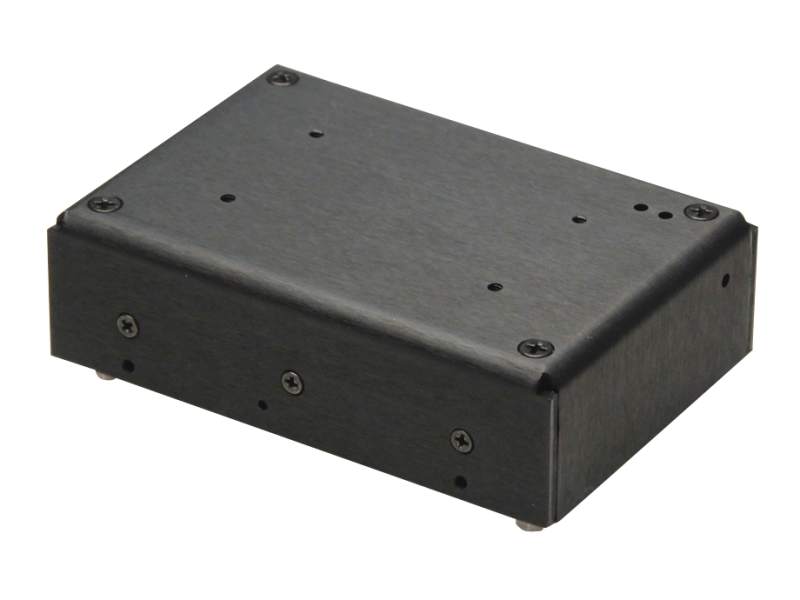

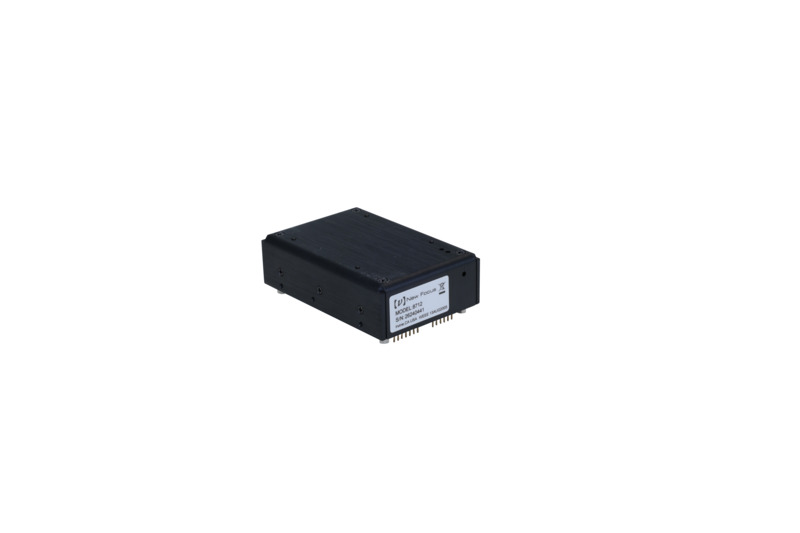

TTL and Analog Picomotor Controller BoardThe 8712 Picomotor™ Driver is designed to be integrated into OEM equipment by mounting directly onto your printed-circuit board. It can drive a single Picomotor axis at a time. If appropriately multiplexed it can be used switch between Picomotors that have been embedded into your system. For assistance and advise on integrating our OEM Driver please contact your local Newport representative.
It is the successor to our popular 8702 Driver is a drop in replacement with the same footprint and connectors. If you have previously been using the 8702 then the 8712 can be used in the same position. The height of the driver has been reduced and the RoHS version is now standard.
It is the successor to our popular 8702 Driver is a drop in replacement with the same footprint and connectors. If you have previously been using the 8702 then the 8712 can be used in the same position. The height of the driver has been reduced and the RoHS version is now standard.
Integrated PCB for Easy System Integration
The model 8703 TTL/Analog Driver module incorporates the model 8712 PCB-Mountable Driver module with a printed circuit board for quick and easy integration into your system. It is available with a choice of 4 industry-standard analog and digital motion-control interfaces, step/direction, quadrature, ±10V linear, or bang-bang voltage control interfaces.
Ideal for OEM and Laboratory Applications
These driver modules are simple to integrate and are designed to be directly built into your device, instrument, or laboratory setup.
