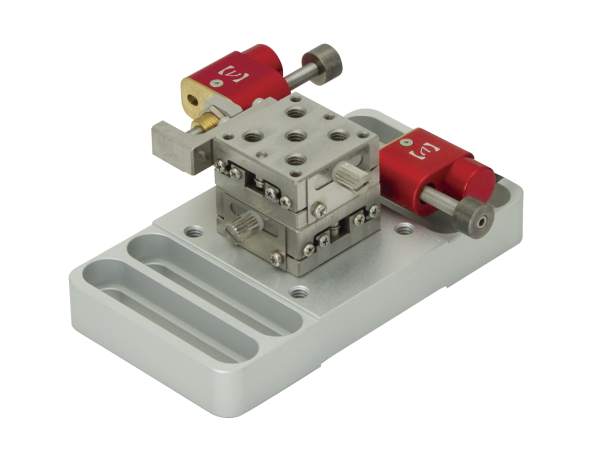

These 5 mm travel gothic-arch ball bearing linear translation stages are preconfigured with picomotor or micrometer actuators on each axis. They are unique in their construction of bearing ways, machined directly into their stainless steel bodies, to provide optimum stability in temperature-fluctuating environments and the best pre-load force maintenance over time.
Preconfigured stages with picomotor or micrometer actuators
Bearing ways machined directly into stage body for maximum stability
Gothic bearing profile extends contact area maximizing load capacity and smoothness
Optimally maintains preloaded bearing force
Side mounted 5 mm travel actuators provide for minimum footprint
Additional drawings are not available for this product.
Specifications
Travel Range
5 mm
Minimum Incremental Motion
<30 nm
Centered Load Capacity
13 N
Vertical Load Capacity
4 N
Bearings
Gothic Arch Bearings
Material
Stainless Steel
Feedback
Open Loop
Cable Length
2.1 m
Connector Type
4-Pin
Platform Size
25 x 25 mm
Operating Temperature
10 to 40 °C
Features
Machined Bearing Ways
The unique bearing design of these Gothic Series translation stages offer the ultimate stability in temperature-fluctuating environment. Unlike the multicomponent design of standard stages, which can loose their preload properties over time, Gothic Series bearing ways are machined directly out of the stage platform.
More Bearing Contact Area for Higher Loads
The gothic arch contact profile for the stainless steel ball bearings offers increased contact area to reduce bearing stresses, making the stage able to carry higher loads and more resistant to bearing-way damage.
Side Mounted Actuators
These compact gothic-arch ball bearing stages feature side-mounted actuator clamps, minimizing the final footprint while maintaining a low profile height. Motorized axes feature our 8354 tiny picomotor actuator and provide 5 mm of travel. Manual axes feature our 9354 smooth-bore micrometer heads and provide 6.5 mm of travel.
< 30 nm Resolution
Our Picomotor actuators have a step size of < 30 nm, allowing for very small, controlled movements of the gothic-arch bearing linear stage.
Easy-to-Use, Flexible Controllers and Drivers
Our Open-Loop Picomotor controllers and drivers are modular. You can daisy-chain up to 31 drivers together with four channels each, so you can have a network of up to 124 standard Picomotor actuators. You have two interface options with the controller system: hand pad or computer, both providing plug-and-play use. Alternatively, you may choose to use our TTL/Analog Picomotor driver.
Set-and-Forget Long-Term Stability
The Picomotor actuator moves when voltage is applied to the piezo, changing its length and in turn moving the jaws which turn the screw. When no power is applied, the actuator does not move. You can feel confident that your linear translation stage will stay put, even when you power down your system.
