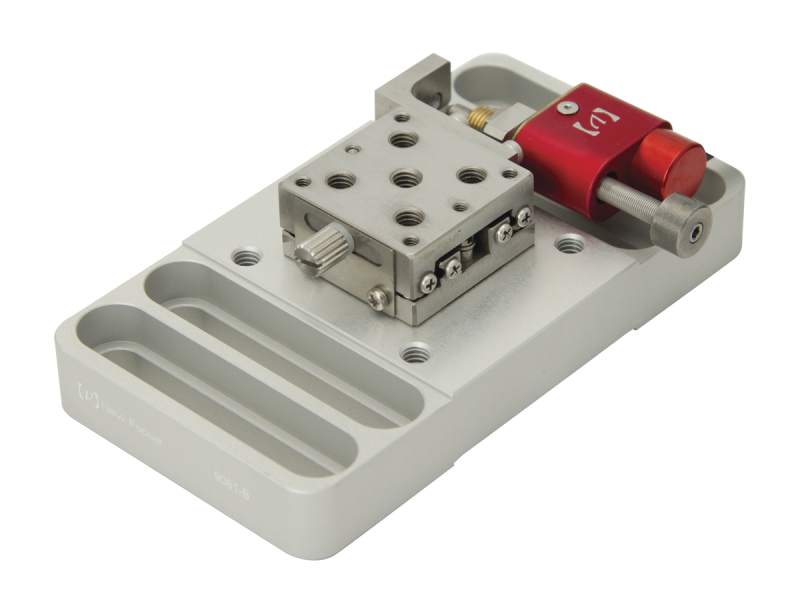

Motorized Linear Stage, Gothic-Arch Bearing, 25x25 mm, 5 mm, 8-32

Technical Specs

  • Axes of Travel
    X
  • Motorized Axes
    X
  • Travel Range
    5 mm
  • Platform Size
    25 x 25 mm
  • Minimum Incremental Motion
    <30 nm
  • Thread Type
    8-32
  • Material
    Stainless Steel
  • Bearings
    Gothic Arch Bearings
  • Axial Load Capacity
    13 N
  • Feedback
    Open Loop
  • Cable Length
    2.1 m
  • Connector Type
    4-Pin
  • Operating Temperature
    10 to 40°C
