LaserClean™ Low-VOC Optical Components

Many laser-based applications require extra care to reduce volatile organic compounds (VOC) and ensure added cleanliness. These VOCs and other contaminates deposit on to optical surfaces causing degradation in output power, beam quality, and wavelength. Newport now offers a collection of Opto-Mechanical components and optical breadboard products that are specially prepared with clear anodize, nickel plating or stainless steel materials, special lubrication and vacuum-level cleaning. We call these products, LaserClean™. A few of the key features of these environment sensitive products include:

  • Specially Cleaned Components for Low-contamination Applications
  • Class 1000 (ISO 6) cleanroom grade double bagging
  • Mirror Mounts, Linear Stages, Posts & Holders, Pedestals, and Accessories
  • Opto-Mechanics and Vibration Control products available
  • Extra Clean, Low-VOC Components

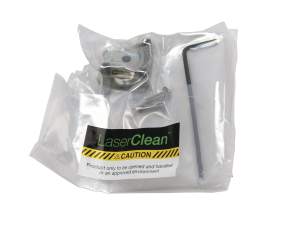

LaserClean Packaging

LaserClean Packaging

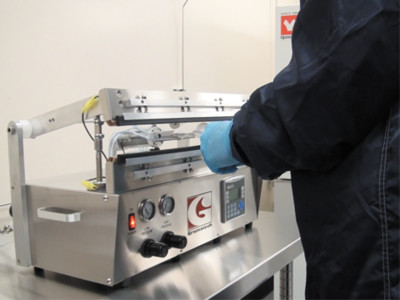

Products are packaged in Class 1000 (ISO 6) cleanroom grade bagging material and then double-bagged for further cleanliness precautions. The product is first bagged in a controlled environment. LaserClean™ products are cleaned in the same method as V6 vacuum-compatible parts. However, blind holes remain thereby making only V6 components suitable for vacuum applications.

NW_LC_USOP
NW_LC_U50A
NW_LC_MFM
NW_LC_DS40

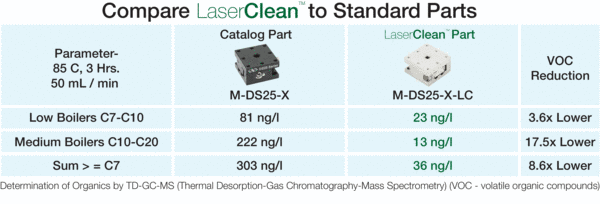

LaserClean Comparison Table

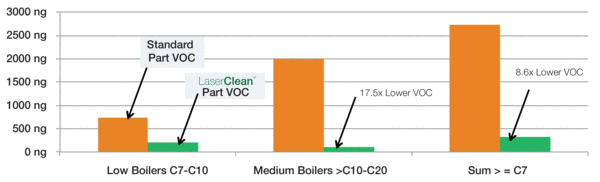

LaserClean Graph
Compare Description Avail. Price Qty.
Low Outgassing and LaserClean Mirror MountsMFM-050-LCIndustrial Optical Mount, Flexure, 0.5 in., 2 Allen, LaserClean
4 Weeks
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$208
Low Outgassing and LaserClean Mirror MountsMFM-075-LCIndustrial Optical Mount, Flexure, 0.75 in., 2 Allen, LaserClean
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$215
Low Outgassing and LaserClean Mirror MountsMFM-100-LCIndustrial Optical Mount, Flexure, 1.0 in., 2 Allen, LaserClean
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$221
Compare Description Avail. Price Qty.
Industrial Dovetail Linear StagesDS25-X-LCManual Linear Stage, 25 x 25 mm, LaserClean, Imperial
In Stock
$192
Industrial Dovetail Linear StagesDS40-X-LCManual Linear Stage, 40 x 40 mm, LaserClean, Imperial
In Stock
$261
Industrial Dovetail Linear StagesM-DS25-X-LCManual Linear Stage, 25 x 25 mm, LaserClean, Metric
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$192
Industrial Dovetail Linear StagesM-DS40-X-LCManual Linear Stage, 40 x 40 mm, LaserClean, Metric
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$261
Compare Description Avail. Price Qty.
0.5 in. LaserClean™ Optical Mounting PostsSP-1-LCOptical Post, 1 in. Height, 0.5 in. Diameter, 8-32, 1/4-20, LaserClean
In Stock
$19.50
0.5 in. LaserClean™ Optical Mounting PostsSP-1.5-LCOptical Post, 1.5 in. Height, 0.5 in. Diameter, 8-32, 1/4-20, LaserClean
In Stock
$22
0.5 in. LaserClean™ Optical Mounting PostsSP-2-LCOptical Post, 2 in. Height, 0.5 in. Diameter, 8-32, 1/4-20, LaserClean
In Stock
$26
0.5 in. LaserClean™ Optical Mounting PostsSP-3-LCOptical Post, 3 in. Height, 0.5 in. Diameter, 8-32, 1/4-20, LaserClean
Contact Us
$27
0.5 in. LaserClean™ Optical Mounting PostsM-SP-1-LCOptical Post, 25.4 mm Height, 12.7 mm Diameter, M4 and M6, LaserClean
Contact Us
$19.50
0.5 in. LaserClean™ Optical Mounting PostsM-SP-1.5-LCOptical Post, 38.1 mm Height, 12.7 mm Diameter, M4 and M6, LaserClean
Contact Us
$22
0.5 in. LaserClean™ Optical Mounting PostsM-SP-2-LCOptical Post, 50.8 mm Height, 12.7 mm Diameter, M4 and M6, LaserClean
Contact Us
$26
0.5 in. LaserClean™ Optical Mounting PostsM-SP-3-LCOptical Post, 76.2 mm Height, 12.7 mm Diameter, M4 and M6, LaserClean
Contact Us
$27
Compare Description Avail. Price Qty.
1.0 in. Optical Pedestals, Graduated DiameterPS-0.5-LCOptical Pedestal, 0.5 in. Height, 1.0 in. Diameter, 8-32, LaserClean
In Stock
$45
1.0 in. Post Spacers & Thread AdaptersPS-0.031-LCPedestal Spacer, 0.03125 in. Thick, 1 in. Posts, 8-32 (M4) CLR, LaserClean
Contact Us
$19.90
1.0 in. Post Spacers & Thread AdaptersPS-0.063-LCPedestal Spacer, 0.0625 in. Thick, 1 in. Posts, 8-32 (M4) CLR, LaserClean
Contact Us
$19.90
1.0 in. Post Spacers & Thread AdaptersPS-0.125-LCPedestal Spacer, 0.125 in. Thick, 1 in. Posts, 8-32 (M4) CLR, LaserClean
Contact Us
$22
1.0 in. Post Spacers & Thread AdaptersPS-0.25-LCPedestal Spacer, 0.25 in. Thick, 1 in. Posts, 8-32 (M4) CLR, LaserClean
Contact Us
$22
1.0 in. Optical Pedestals, Graduated DiameterM-PS-1-LCOptical Pedestal, 25.4 mm Height, 25.4 mm Diameter, M4, LaserClean
In Stock
$48
1.0 in. Optical Pedestals, Graduated DiameterM-PS-2-LCOptical Pedestal, 50.8 mm Height, 25.4 mm Diameter, M4, LaserClean
In Stock
$50
1.0 in. Optical Pedestals, Graduated DiameterM-PS-3-LCOptical Pedestal, 76.2 mm Height, 25.4 mm Diameter, M4, LaserClean
Contact Us
$54
Compare Description Avail. Price Qty.
1.0 in. Optical Pedestals, Graduated DiameterPS-0.5-LCOptical Pedestal, 0.5 in. Height, 1.0 in. Diameter, 8-32, LaserClean
In Stock
$45
1.0 in. Post Spacers & Thread AdaptersPS-0.031-LCPedestal Spacer, 0.03125 in. Thick, 1 in. Posts, 8-32 (M4) CLR, LaserClean
Contact Us
$19.90
1.0 in. Post Spacers & Thread AdaptersPS-0.063-LCPedestal Spacer, 0.0625 in. Thick, 1 in. Posts, 8-32 (M4) CLR, LaserClean
Contact Us
$19.90
1.0 in. Post Spacers & Thread AdaptersPS-0.125-LCPedestal Spacer, 0.125 in. Thick, 1 in. Posts, 8-32 (M4) CLR, LaserClean
Contact Us
$22
1.0 in. Optical Pedestals, Graduated DiameterM-PS-1-LCOptical Pedestal, 25.4 mm Height, 25.4 mm Diameter, M4, LaserClean
In Stock
$48

LaserClean™ Optical Breadboards

LaserClean optical breadboards feature low outgassing processes and components, provide off the shelf solutions for applications that require low VOC or low outgassing optical breadboards. These specialized optical breadboards feature:

  • Proprietary cleaning and manufacturing process ensures low outgassing interface
  • Scientific Grade performance, other performance grade available as custom
  • Clear anodized SA2 solid aluminum optical breadboards also available
  • Learn More
