Optical Pedestal, 1.0 in. Height, 1.0 in. Diameter, 8-32, LaserClean

1.0 in. Optical Pedestals, Graduated Diameter

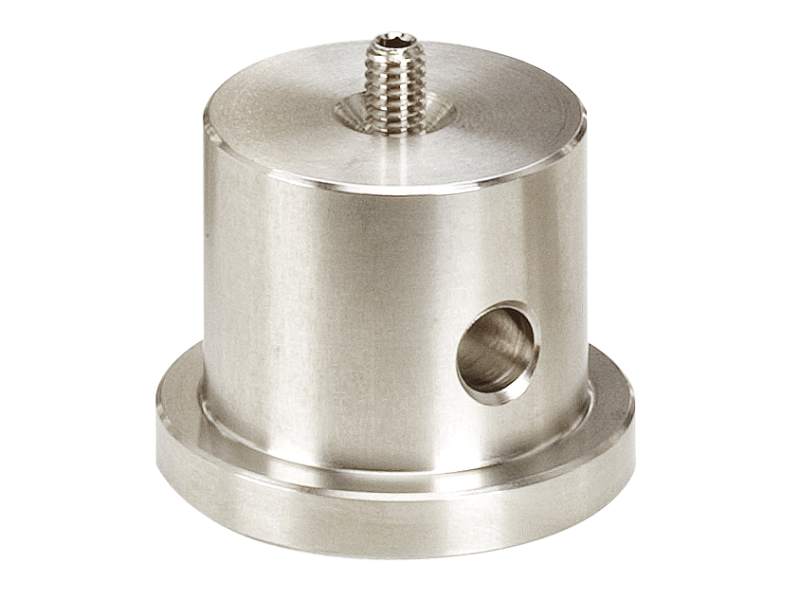

The PS-1-LC Precision Ground Stainless Steel Optical Pedestal maintains long-term optical system alignment. This 1.0 in. diameter post has a 1.0 in. height. Cross-drilled holes allow 3/16 in. hex wrenches to aid in tightening and loosening assembled posts. An 8-32 threaded hole on each end allows optical pedestals and pedestal extenders to be attached together end-to-end using a setscrew. In-between heights can be achieved by combining a pedestal post with a 1/2 in. high post and/or spacers, available in 0.125 and 0.25 in. heights. For direct mounting to a threaded hole on an optical table, use a 1/4-20 to 8-32 thread adaptor. Optical pedestals enable ultra-stable mounting of optical mounts at low beam heights. Slotted clamping forks secure pedestals anywhere on an optical table.

Specifications

Technical Specs

Type
LaserClean Optical Pedestal
Height
25.4 mm
Thread Type
8-32
Material
Stainless Steel

Diameter
25.4 mm

Type
LaserClean Optical Pedestal
Height
25.4 mm
Thread Type
8-32
Material
Stainless Steel

Diameter
25.4 mm

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

PS Posts-S(175.7 kB, PDF)

Other

PS-1-LC RoHS Certificate(279.3 kB, PDF)
PS-1-LC_RoHS2021.pdf(683.9 kB, PDF)
