Compare Model Drawings, CAD & Specs Axes of Travel Maximum Stage Travel Load Capacity Thread Type Availability Price
$238
In Stock
X 3 mm 2.2 N 2-56 and 8-32
In Stock
$453
In Stock
X, Y 3 mm 2.2 N 2-56 and 8-32
In Stock
$651
In Stock
X, Y, Z 3 mm 2.2 N 2-56 and 8-32
In Stock
$315
In Stock
X 5 mm 3.3 N 2-56 and 5/16-24
In Stock
$671
X, Y 5 mm 3.3 N 2-56 and 5/16-24
$1,022
In Stock
X, Y, Z 5 mm 3.3 N 2-56 and 5/16-24
In Stock
$249
1 Week
X 13 mm 3.3 N 2-56 and 5/16-24
1 Week
$473
In Stock
X, Y 13 mm 3.3 N 2-56 and 5/16-24
In Stock
$698
In Stock
X, Y, Z 13 mm 3.3 N 2-56 and 5/16-24
In Stock

80 TPI adjustment screws are included with these stages.

Features

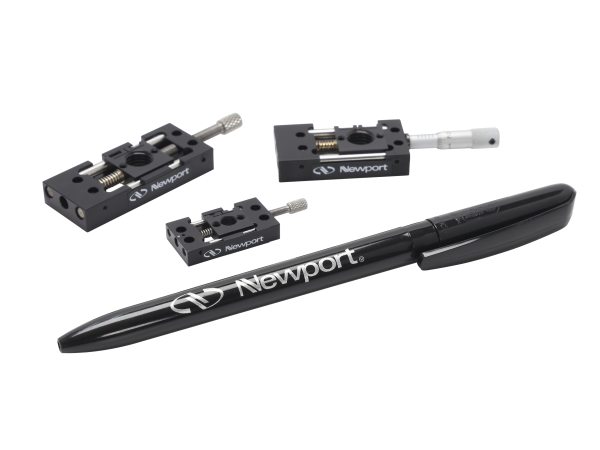

Miniature Size

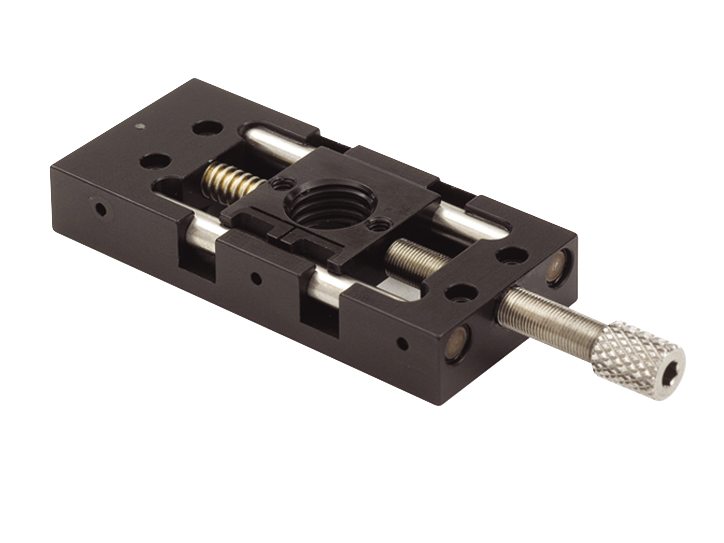

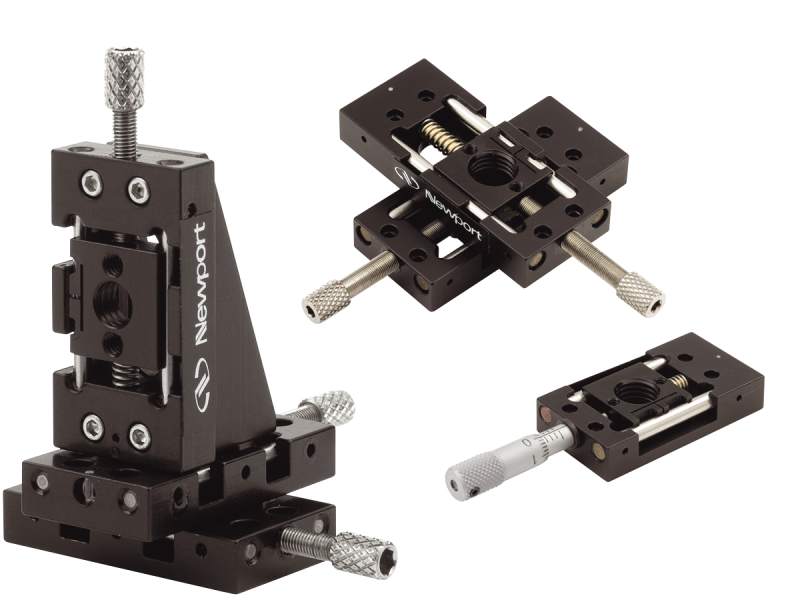

MS Series linear stages are great for space limited optical set-ups. MS-125 and MS-500 Series are equiped with precision 80 TPI adjustment screws. MS-200M Series are actuated by micrometers.

Wear Resistant Motion

Hardened precision rods are preloaded against a four corner hardened slider for smooth, wear-resistant motion. A return spring provides built-in preload to eliminate backlash. The unique carriage design eliminates wobble while providing an extremely robust stage. MS stages feature a precision 80 TPI adjustment screw to provide unmatched resolution in stages of this size.

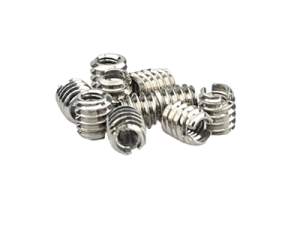

Wide Variety of Accessories

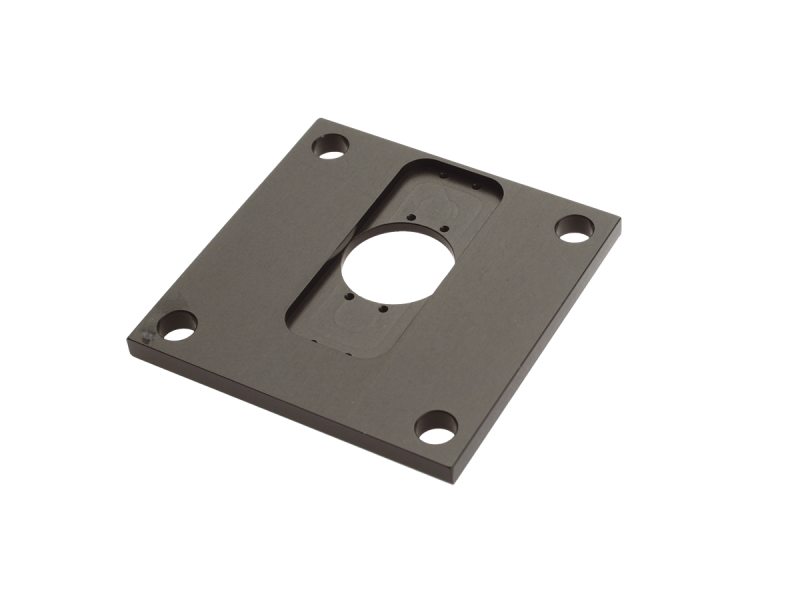

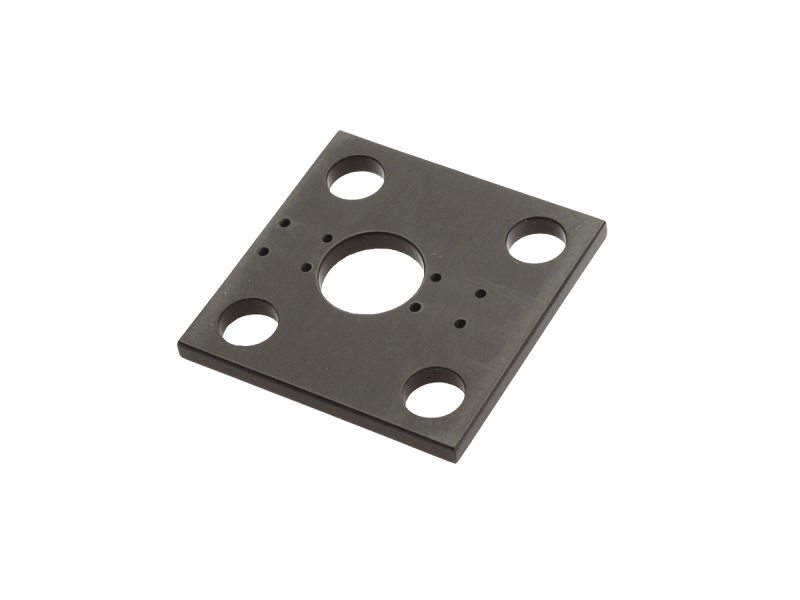

The multi-position adapter plates MS-AP-1 and MS-AP-3 interface with standard optical tables and can provide additional footprint to free-standing stages.

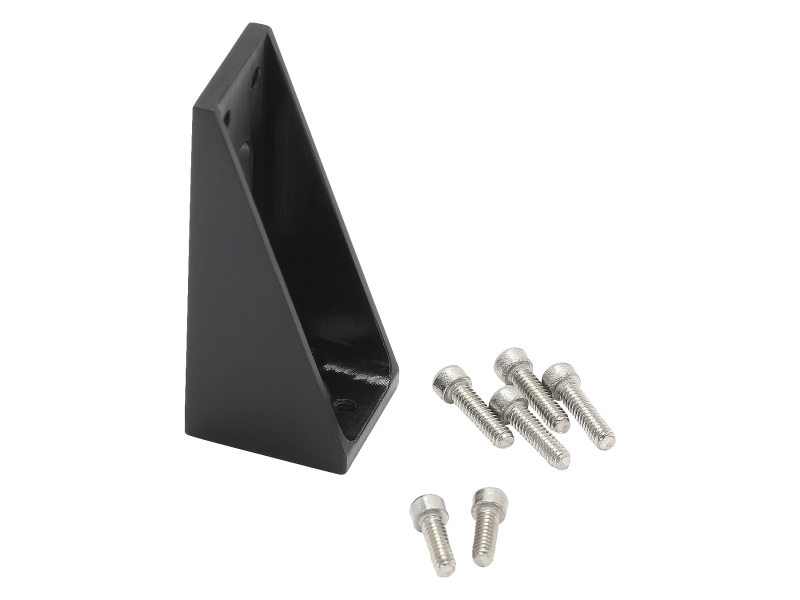

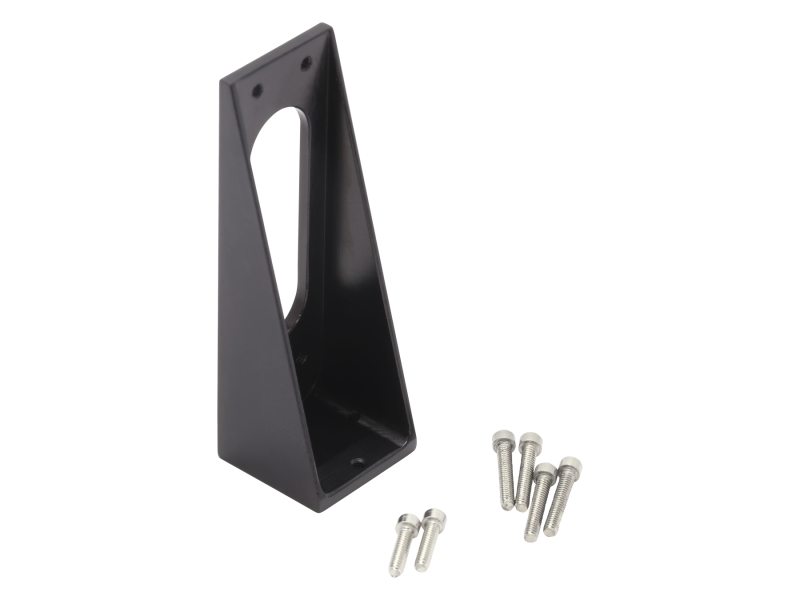

The Z-bracket and screw kits MS-KIT-Z-1 and MS-KIT-Z-3 are used to build XZ configuration of MS-125 and MS-500 Series miniature linear stages.

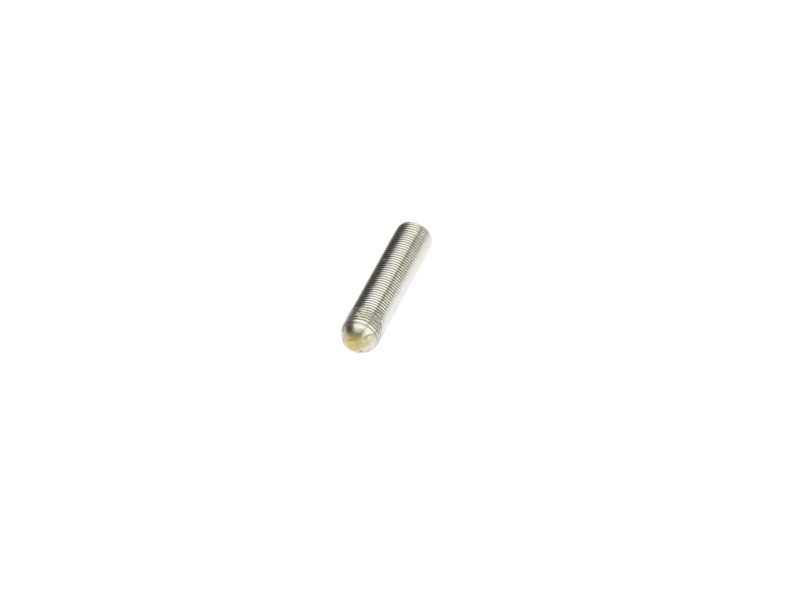

The headless adjusting screws MS-SS-1 and MS-SS-3 replace a standard thumb screw in MS-125 or MS-500. They provide full linear travel while reducing the length of the stage by 0.4 or 0.5 in. respectively.

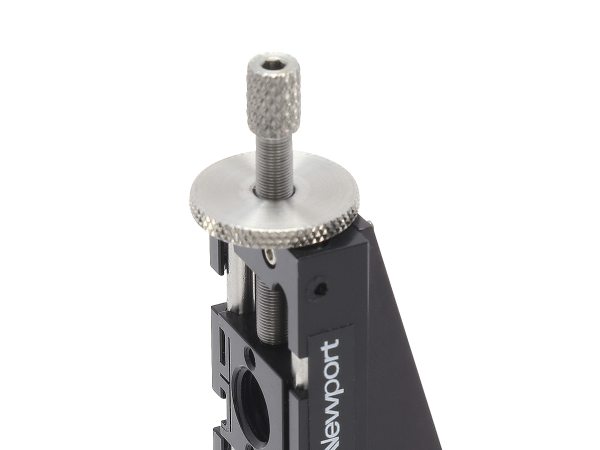

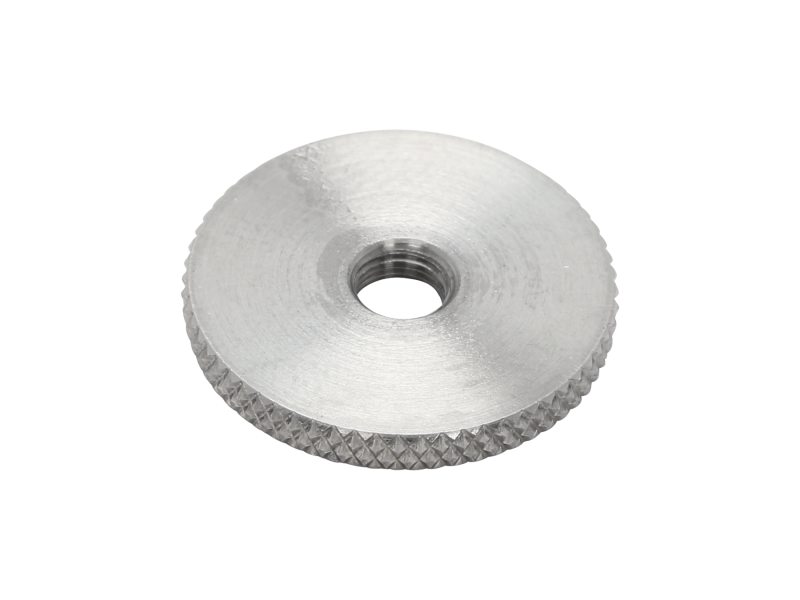

The knurled thumb grips MS-TG-1 and MS-TG-3 can be added to MS-125 and MS-500 stages to enhance resolution and alternatively can be used as a locking nut.

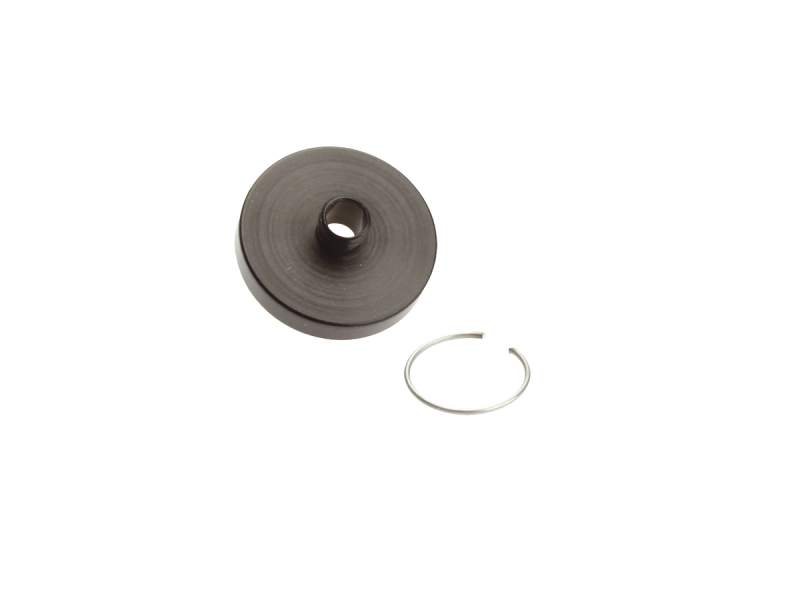

With the pinhole adapter MS-PA-1 or MS-PA-3, apertures can be changed by replacing the entire adapter or by removing and replacing the aperture only. A soft rubber washer can be used under the adapter for slit aperture orientation.

Objective Lens Positioning Application

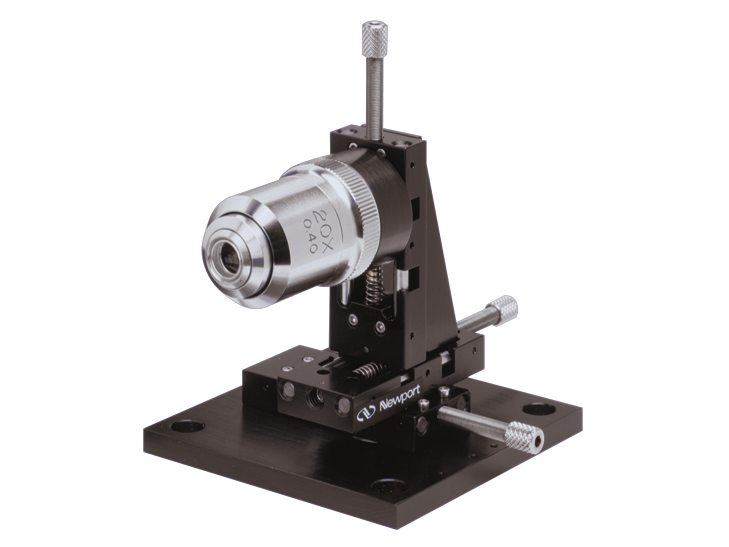

The objective adapter MS-OA-3 allows mounting of standard microscope objectives to MS-500 stages. A Newport M Series Objective Lens is shown with Model MS-500-XYZ stage to create a miniature XYZ objective lens positioner.
