Microscope Objective Lens, 5x, 0.10 NA, 25.4 mm Focal Length
$121
In Stock
5x
In Stock

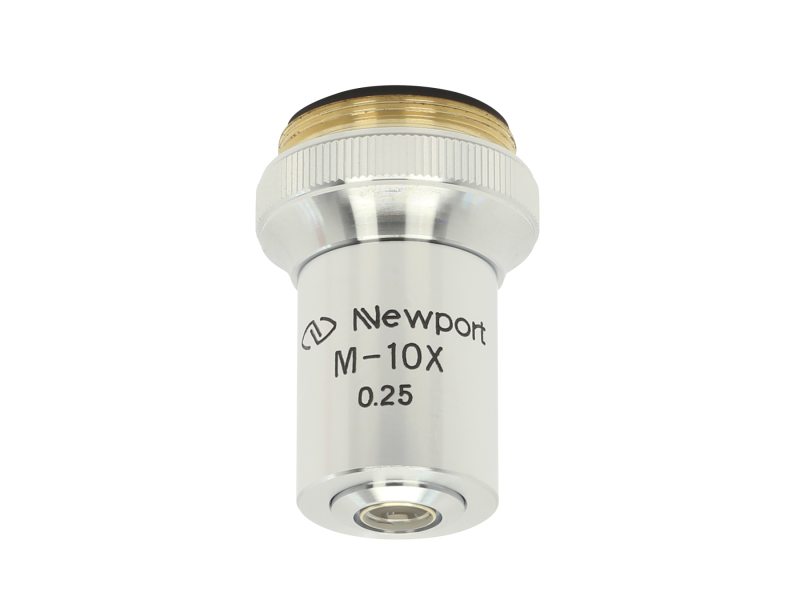

Microscope Objective Lens, 10x, 0.25 NA, 16.5 mm Focal Length
$146
In Stock
10x
In Stock
Microscope Objective Lens, 20x, 0.40 NA, 9.0 mm Focal Length
$197
In Stock
20x
In Stock
Microscope Objective Lens, 40x, 0.65 NA, 4.5 mm Focal Length
$208
In Stock
40x
In Stock
Microscope Objective Lens, 60x, 0.85 NA, 2.9 mm Focal Length
$207
In Stock
60x
In Stock
microscope objective lenses for collimating and focusing beams

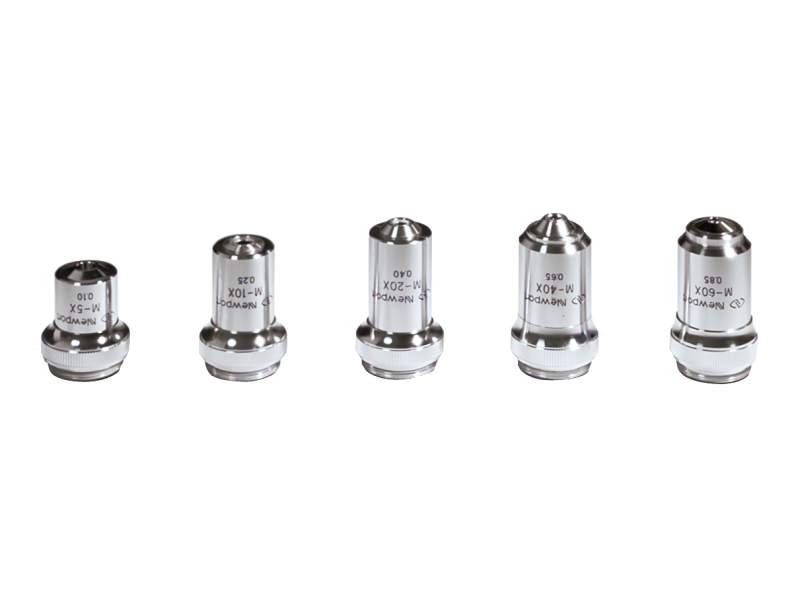

Microscope Objective Lens Set, Includes 5x, 10x, 20x, 40x, and 60x
$667
In Stock
In Stock

Specifications

Features

Finite Conjugate Objective Selection

Our M- microscope objectives are corrected for a rear conjugate at 160 mm, and this family is the most popular family in the microscope objective offering. The M- series is available in a range of powers from 5x to 60x, either individually or as a complete set.  If cost is an issue, the MV- series is the economical choice for standard laboratory applications.  Please see Economy Microscope Objective Lenses

Ideal for spatial filtering

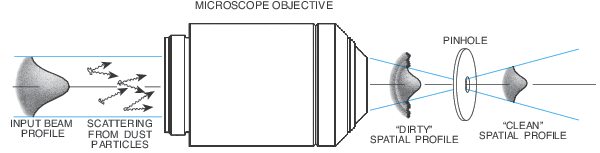

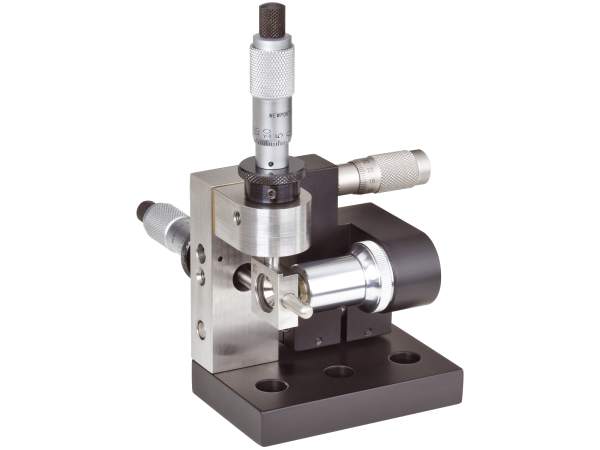

Our microscope objectives are broadband AR coated and designed for diffraction limited performance across the entire visible spectrum. This allows collimated beams from lasers such as HeNe, Argon, or frequency double Nd:YAG to be focused to a small spot for spatial filtering. In spatial filtering, a laser source is focused to a diffraction limited airy disk spot pattern. A pinhole is placed at the focal plane sized such that only the central lobe of the airy disk may pass through. This removes undesired higher spatial frequencies to produce a clean uniform output beam. Please see our Three-Axis Spatial Filters and our space-saving Compact Five-Axis Spatial Filters.

Spatial Filter Lens & Pinhole Selection*

Objective Lens Recommended Max Input Beam Diameter Calculated Pinhole Diameter Recommended Pinhole Diameter* Recommended Pinhole
M-5X 5.0 mm 32.2 µm 50 µm 900PH-50
M-10X 5.5 mm 20.9 µm 25 µm 900PH-25
M-20X 5.0 mm 11.4 µm 15 µm 900PH-15
M-40X 4.0 mm 5.7 µm 10 µm 900PH-10
M-60X 3.5 mm 3.7 µm 5 µm 900PH-5

*For 1 mm diameter beam at 632.8 nm

For a tutorial on spatial filters see Spatial Filter Technical Note

High Power Laser Application Example

The M-20X is highlighted here in a laser engraving example. This example highlights the fact that these objectives can be used without issue. Unfortunately there is no specific data for actual laser damage. For any high power application, due to the sensitive nature of the environment, the level of cleanliness, and laser power homogeneity, the objectives cannot be guaranteed to perform without damage.

This video shows a single point laser machine control system and interface for materials processing made using our Laser Machining Software, IDL65-200LM stages, and M-series microscope objective.
