Microscope Objective Mount, Fixed, A-LINE, 0.800-36 Thread, 8-32

A-Line™ Objective and C-Mount Lens Mounts

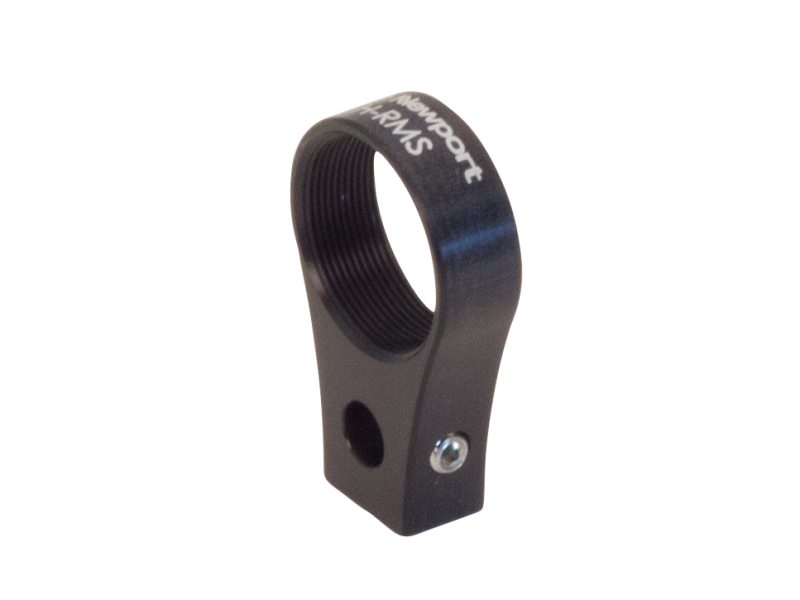

The LH-RMS Microscope Objective Mount is a convenient and economical solution for fixed mounting of microscope objectives with RMS thread. The holder incorporates an 8-32 threaded mounting hole for post mounting on English SP and MSP Series posts.

Specifications

Technical Specs

Type
Optic Adaptor
Adjustments
Fixed
Optic Diameter
RMS
Optical Axis Height
31.8 mm

Thread Type
8-32
Optic Retaining Thread
0.800‐36

Type
Optic Adaptor
Adjustments
Fixed
Optic Diameter
RMS
Optical Axis Height
31.8 mm

Thread Type
8-32
Optic Retaining Thread
0.800‐36

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

LH-A(128.2 kB, PDF)

Other

LH-RMS RoHS Certificate(278.8 kB, PDF)
LH-RMS_RoHS2021.pdf(684.5 kB, PDF)
