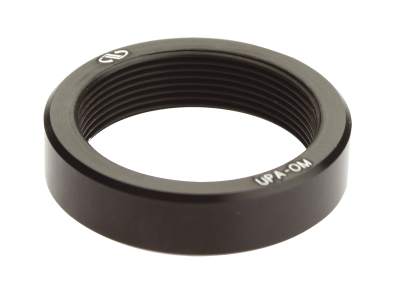

Objective Lens Adapter, RMS Thread, 1 inch Mount

Objective Lens Adapter For Mirror Mounts

The UPA-OM Objective Mount inserts into most 1-in. (25.4 mm) mirror and lens mounts and provides a 0.800-36 (M20.25) RMS thread for mounting microscope objectives and other RMS-threaded components.

Specifications

Technical Specs

Type
Mirror Mount Adapter
Diameter
25.4 mm
Thickness
6 mm
Use
1 inch Mirror Mounts

Objective Lens Thread
RMS
Material
Anodized Aluminum

Type
Mirror Mount Adapter
Diameter
25.4 mm
Thickness
6 mm
Use
1 inch Mirror Mounts

Objective Lens Thread
RMS
Material
Anodized Aluminum

Resources & Downloads

2D Product Drawings

UPA1-2 O-S(87.4 kB, PDF)

Other

UPA-OM_RoHS2021.pdf(680.7 kB, PDF)
