Features

Calibrated Models are NIST Traceable

We offer calibrated and standard photodiode sensors. The calibrated detectors come with NIST traceable spectral responsivity values for every 10 nm over the detector's calibrated wavelength range. The Germanium detectors NIST traceable calibrated responsivity factors cover the 0.7 to 1.8 µm range. The UV Si detectors are calibrated from 200 to 1100 nm.

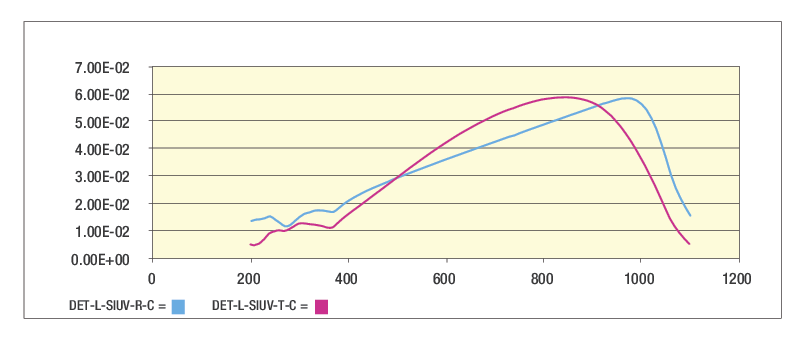

Typical Responsivity of Silicon Detectors

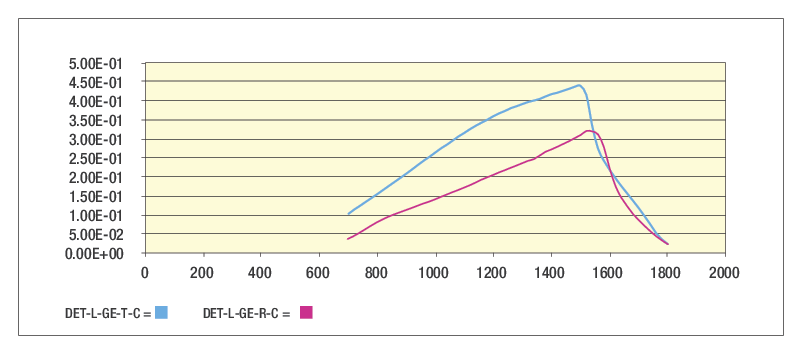

Typical Responsivity of Germanium Detectors

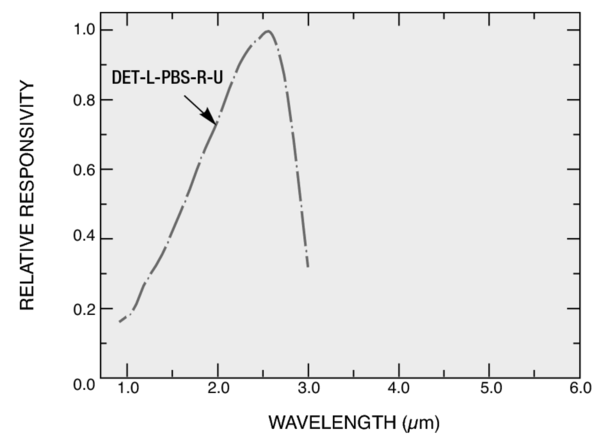

Typical Responsivity of PbS Detector

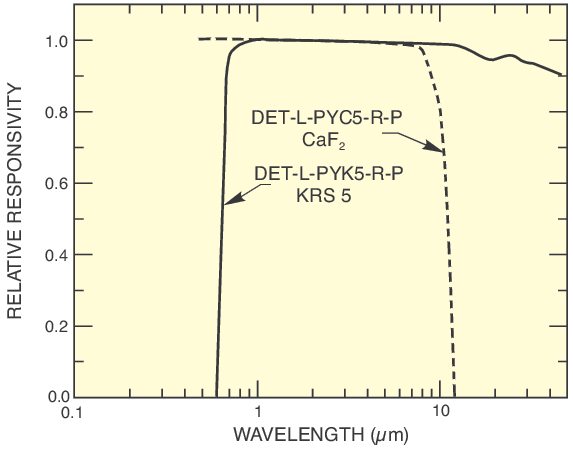

Typical Responsivity of Pyroelectric Detectors

Flange mounted for enclosed optical path

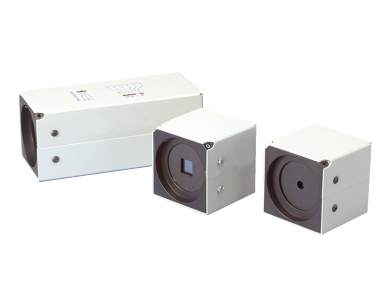

The flanged detectors are enclosed in aluminum housings with a 1/4-20 tapped hole in the bottom for rod mounting, and a 1.5 Inch Series female flange for direct coupling to Oriel Monochromators and lamp housings.  Shown on the right is the 71582 Silicon detector mounted directly to one of our research housings, looking transversely at the lamp, utilizing the 68952

Model: 68952

Adapter Kit, Research Lamp Housing to Light Intensity Controller/Timer

$315.00
Contact Us
Product Series Overview
Digital Light Intensity Controller
Adapter Kit.

Thermoelectric cooled options for optimum responsivity stability

Oriel offers a selection of Thermoelectric (TE) cooled detectors, that allows the direct temperature control of the internal detector element.  The primary benefit of TE cooling is to stabilize the detector responsivity, especially at the extremes of the responsivity range.  The 70062

Model: 70062

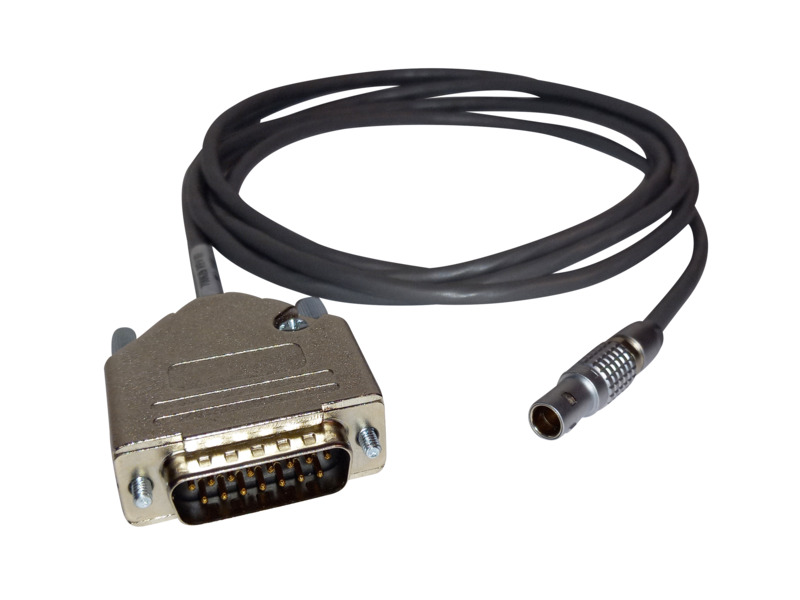

Cable, TE Cooled Detectors for Temperature Control, 1.8 m Length, 6895X Compatibility

$210.00
In Stock
Product Series Overview
Oriel Detector Cables

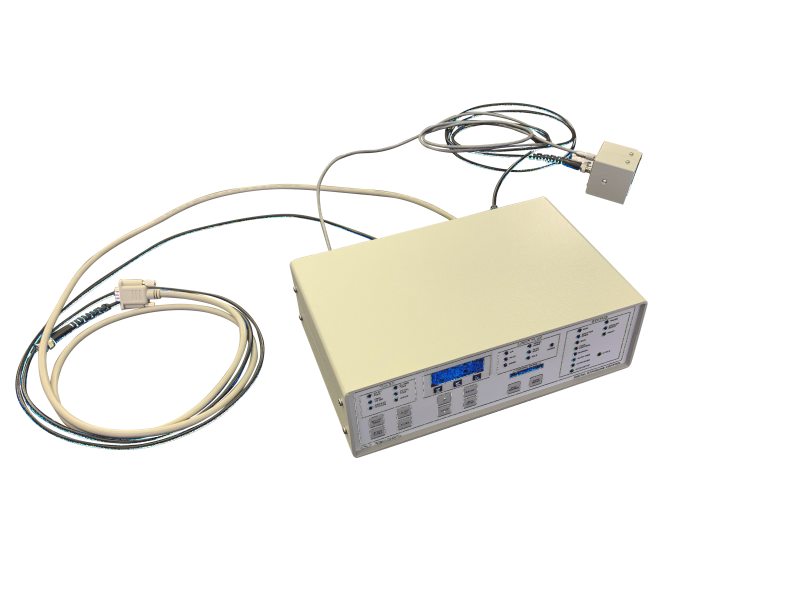

cable connects to one of our 6895X series of digital light intensity controllers (such as our 68950

Model: 68950

Digital Exposure System, Research Lamp Sources

$6,820.00
In Stock
Product Series Overview
Digital Light Intensity Controller
), while the 70062B

Model: 70062B

Cable, TE Cooled Detectors for Temperature Control, 1.8 m Length, ILX Compatibility

$155.00
In Stock
Product Series Overview
Oriel Detector Cables

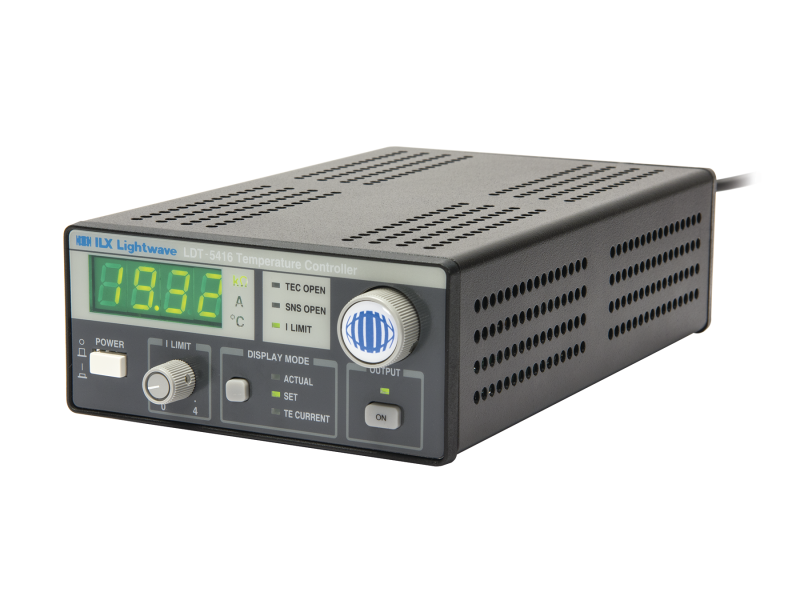

cable connects to a number of our ILX branded temperature controllers (our LDT-5416

Model: LDT-5416

Temperature Controller, Thermoelectric, ±4A, ±4V, 16W, Low Power

$1,905.00
In Stock
Product Series Overview
±4 A Thermoelectric Temperature Controllers
shown on the left).

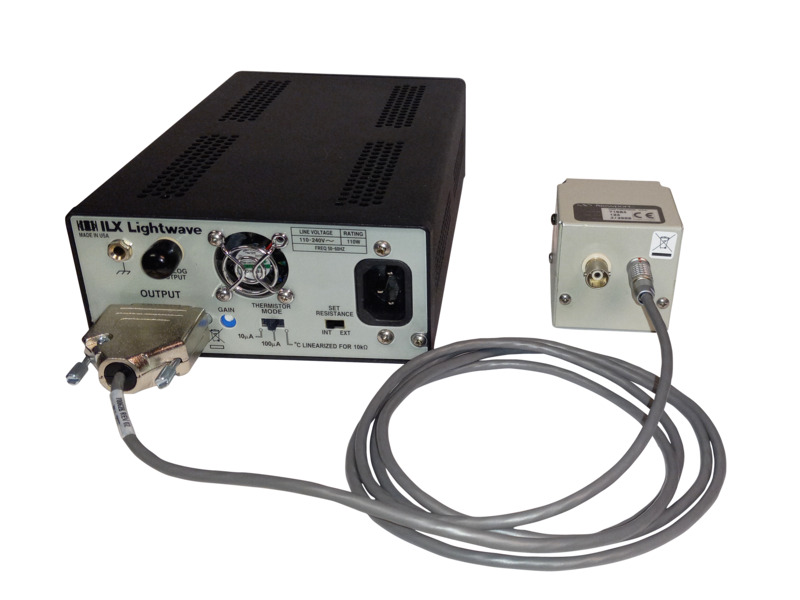

Our 71582 Silicon detector connected to our ILX LDT-5416, using the 70062B cable
