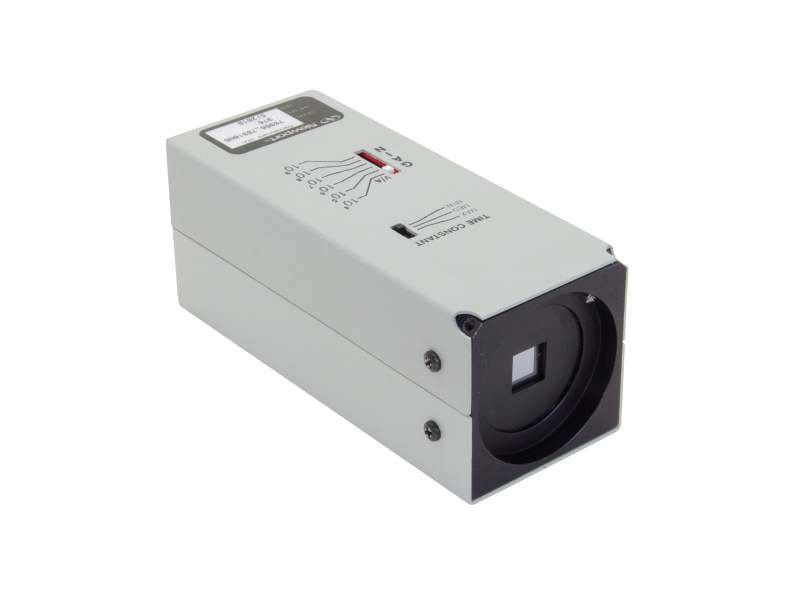

UV-Si Photodiode, Transimpedance Amplifier, 200-1100 nm, 10 x 10 mm, NIST

Technical Specs

  • Type
    UV-Si Photodiode
  • Detector Type
    Flange Mount Photodiode
  • Detector Input
    Free Space
  • Gain
    104 V/A to 109 V/A
  • Detector Material
    Silicon
  • Spectral Range
    200-1100 nm
  • Amplified
    Yes
  • Sensor Size
    10 x 10 mm
  • Connector Type

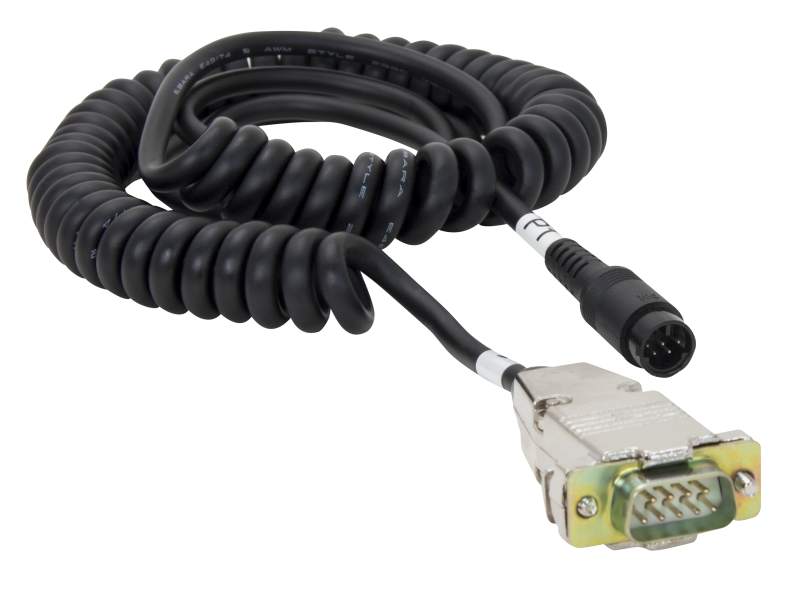

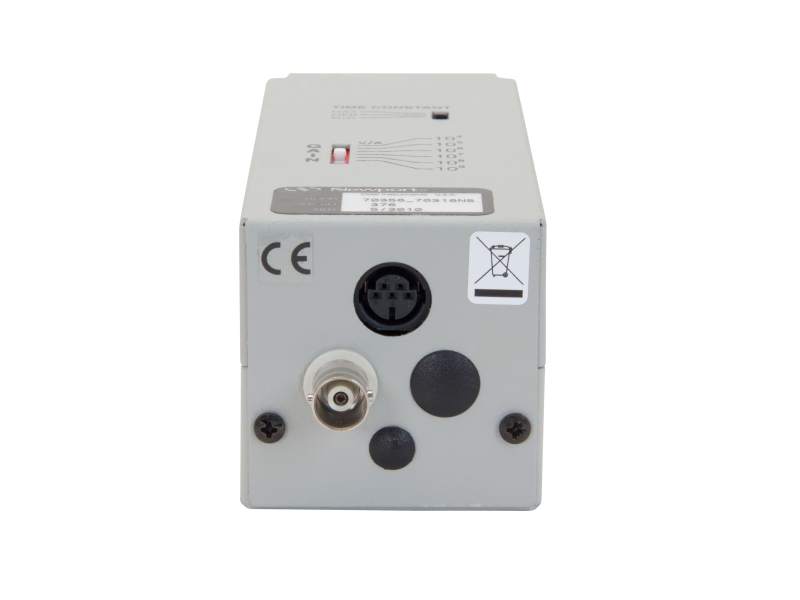

    BNC (signal), LIDA (power)
  • Power Requirements
    ±5 to ±15 VDC
  • Bandwidth
    0.01 Hz-100 kHz
  • Bias Voltage
    Unbiased
  • Dimensions
    52.3 x 52.3 x 127.0 mm
  • TE Cooled
    No
  • Flange Type
    1.5 Inch Series Female Flange
  • Calibrated
    Yes
