Pyroelectric Detector, Lithium Tantalate, 2 mm, FET Amplifier, 0.45-9 µm

  • Type
    Lithium Tantalate Pyroelectric Detector
  • Detector Type
    Flange Mount Photodiode
  • Gain
    Fixed
  • Detector Input
    Free Space
  • Spectral Range
    450-9000 nm
  • Sensor Size
    Ø2 mm
  • Bandwidth
    8 Hz-1.1 kHz
  • Detector Material
    Lithium Tantalate
  • Bias Voltage
    Unbiased
  • Amplified
    Yes
  • Dimensions
    52.3 x 52.3 x 127.0 mm
  • Calibrated
    Yes
  • Responsivity
    1000 V/W
  • TE Cooled
    No
  • Power Requirements
    ±15 VDC
  • Flange Type
    1.5 Inch Series Female Flange

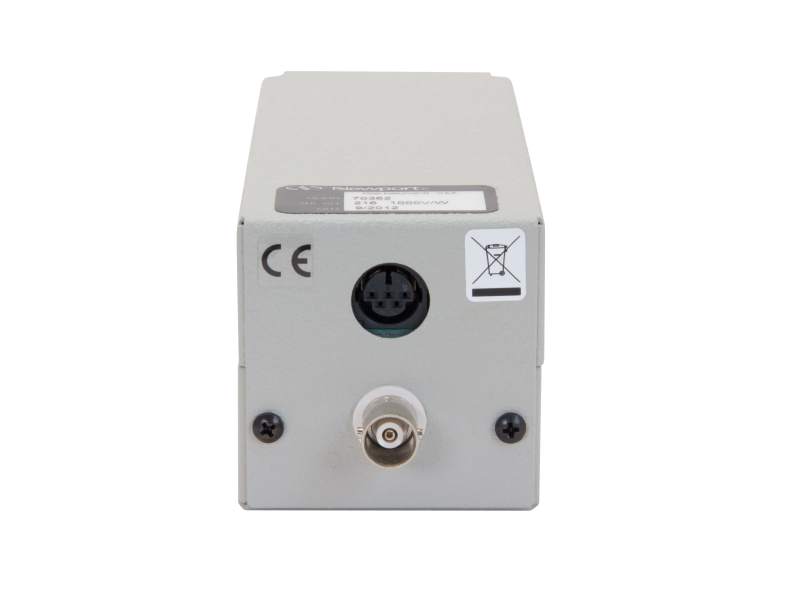

  • Connector Type
    BNC (signal), LIDATM (power)
