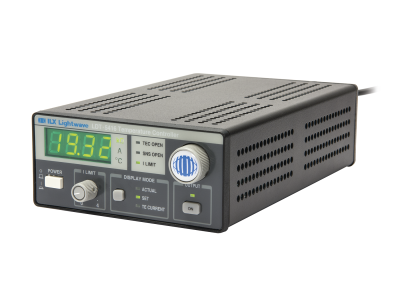

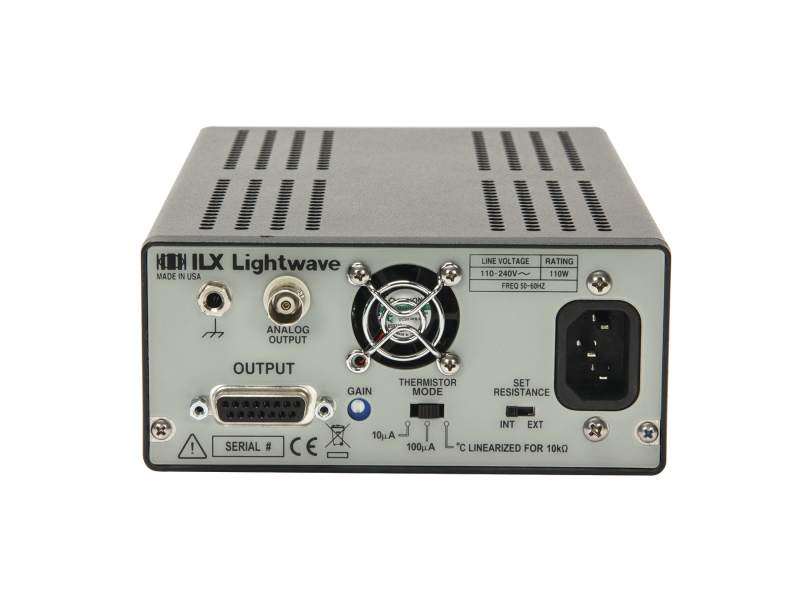

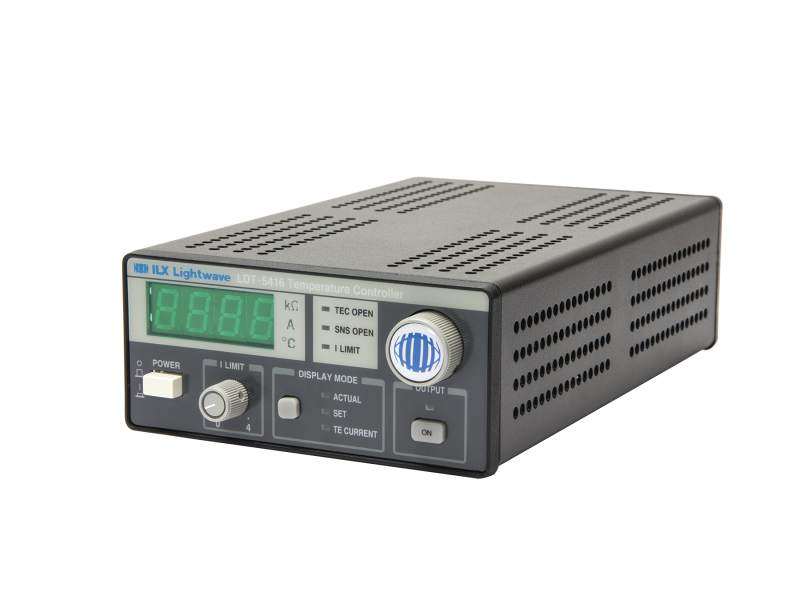

LDT-5416 Temperature Controller

The LDT-5416 Thermoelectric Temperature Controller offers a stable, low noise bipolar output and is optimized for controlling the temperature of laser diodes and photodetectors. The instrument controls and displays either thermistor resistance or temperature readings from a 10 kO thermistor while delivering bipolar current to a thermoelectric module. The unit’s hybrid proportional-integral control loop offers fast settling times with a typical temperature stability of ±0.01°C.

We offer a wide variety of precision laser diode mounts with plug and play compatibility with our laser diode instrumentation.

Specifications

Technical Specs

TE Current Range

-4.00 to +4.00 A
TE Voltage Range

-4 to +4 V
TE Output Power

16 W
Thermistor Control Range

0 - 199.9 kΩ

Connector Type

DB15
Computer Interfaces

None
Display Type

3.5 digit green LED

TE Current Range

-4.00 to +4.00 A
TE Voltage Range

-4 to +4 V
TE Output Power

16 W
Thermistor Control Range

0 - 199.9 kΩ

Connector Type

DB15
Computer Interfaces

None
Display Type

3.5 digit green LED

Resources & Downloads

Application Notes

Related Products

Accessories

Description	Compatibility	Avail.	Price
CC501H Cable, TEC Controller to Bare Wire, 6 Amp, DB15 Male	UNIVERSAL	In Stock	$145
CC501HT Control Cable, TEC Controller to Mount, 6 Amp, DB15 Male to 7W2 Female	UNIVERSAL	In Stock	$220
CC501S Cable, TEC Controller to Bare Wire, 5 Amp, DB15 Male	UNIVERSAL	In Stock	$105
CC505S Control Cable, TEC Controller to Mount, 5 Amp, DB15 Male to DB9 Female	UNIVERSAL	In Stock	$110

Frequently Purchased Together

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		CC505S Control Cable, TEC Controller to Mount, 5 Amp, DB15 Male to DB9 Female	UNIVERSAL		In Stock	$110
		LDM-4984T Laser Diode Mount, 14-pin Butterfly, Temp Controlled	UNIVERSAL		In Stock	$1,090

Temperature Controller, Thermoelectric, ±4A, ±4V, 16W, Low Power
