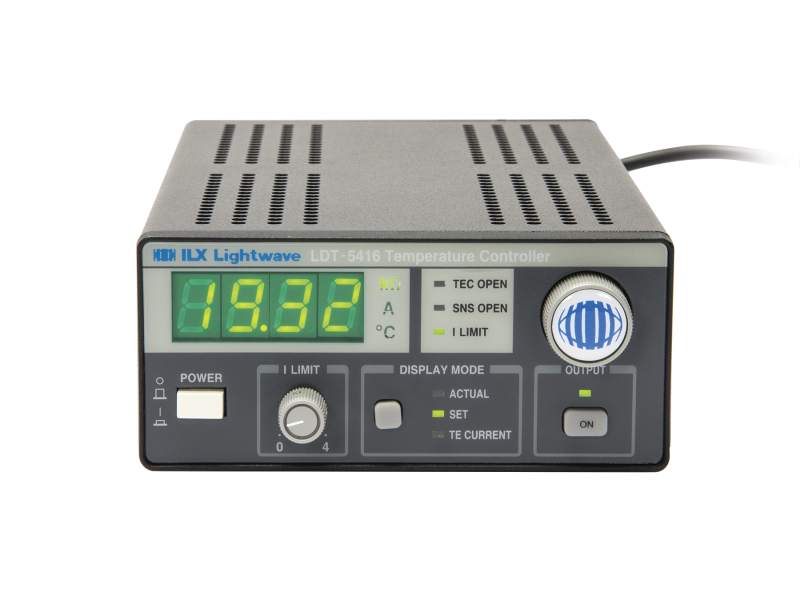

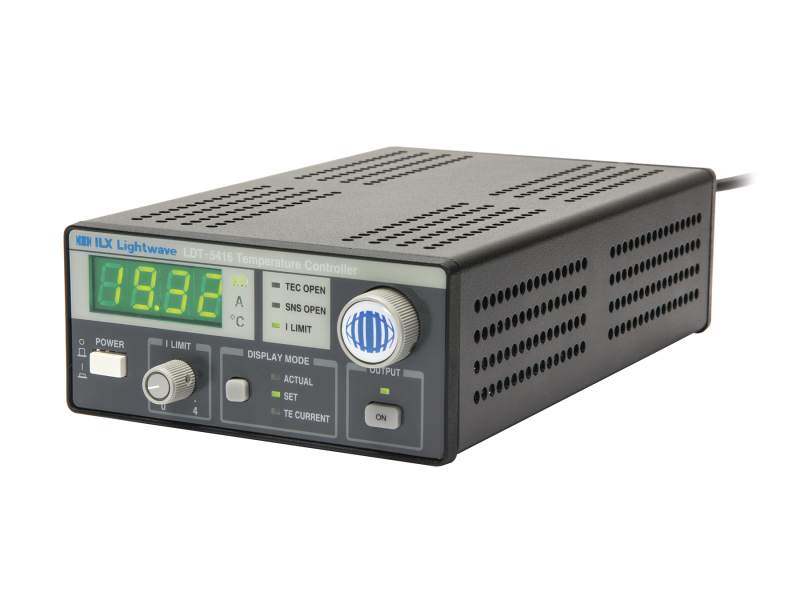

Designed to be economical and flexible, the LDT-5416 Thermoelectric Temperature Controller offers a stable, low noise bipolar output and is optimized for controlling the temperature of laser diodes and photodetectors. The unit’s hybrid proportional-integral control loop offers fast settling times with a typical long term temperature stability of ±0.01°C
16W output to work with the majority of lower power applications
High stability within 0.01°C for sensitive experiments
Hybrid P-I control loop for simple & fast settling time
Three display modes provide easy access to information
Three thermistor modes for a wide variety of usable thermistors
Visual fault indicators for immediate notification of errors
Additional drawings are not available for this product.
Specifications
TE Current Range
-4.0 to +4.0 A
TE Voltage Range
-4 to +4 V
TE Output Power
16 W
Thermistor Control Range
0 - 199.9 kΩ
Connector Type
DB15
Computer Interfaces
None
Display Type
4 digit green LED
Features
Maintain Laser Diode Threshold Current and Wavelength

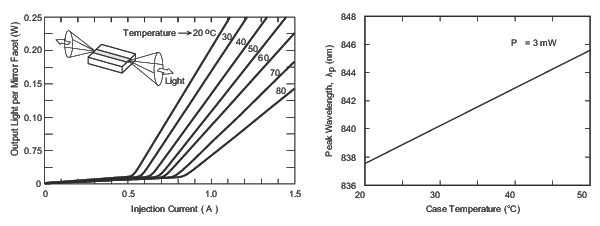

The above figure figure shows that the threshold current and differential responsivity of a laser diode are strongly affected by the laser’s temperature. The laser threshold will increase exponentially with temperature as exp(T/T0), where T is the laser temperature and T0 is the “characteristic temperature” of the laser (typically between 60 to 150°C). T0 is a measure of the temperature sensitivity of the device with higher values implying that the device is more thermally stable. T0 is an important laser diode characteristic and is commonly extracted from multiple L-I curves. Changes in temperature also affect the bandgap of the semiconductor junction and therefore, the peak wavelength of the gain profile. This results in a linear relationship between temperature and the center wavelength of the laser diode (see above figure) with typical temperature tuning coefficients of 0.3 nm/°C. As a result, a temperature controller plays a key role in determining the laser wavelength. Please see Fundamentals of Laser Diode Control for additional information.
