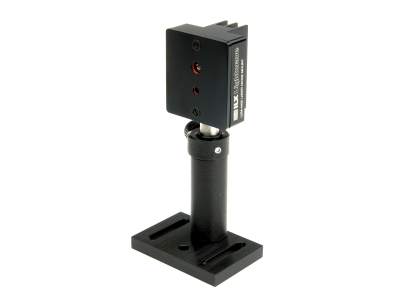

Laser Diode Mount, 3-pin TO-Can, Temp Controlled

Technical Specs

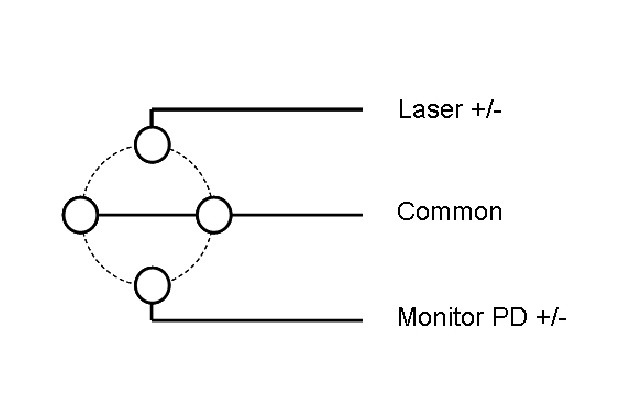

  • Package Type
    3-pin & 4-pin TO-Can
  • TE Cooler
    3.9 A, 3.7 V maximum
  • Temperature Range
    10 to 85°C
  • Temperature Sensor
    10 kΩ NTC Thermistor
  • Maximum Current
    500 mA

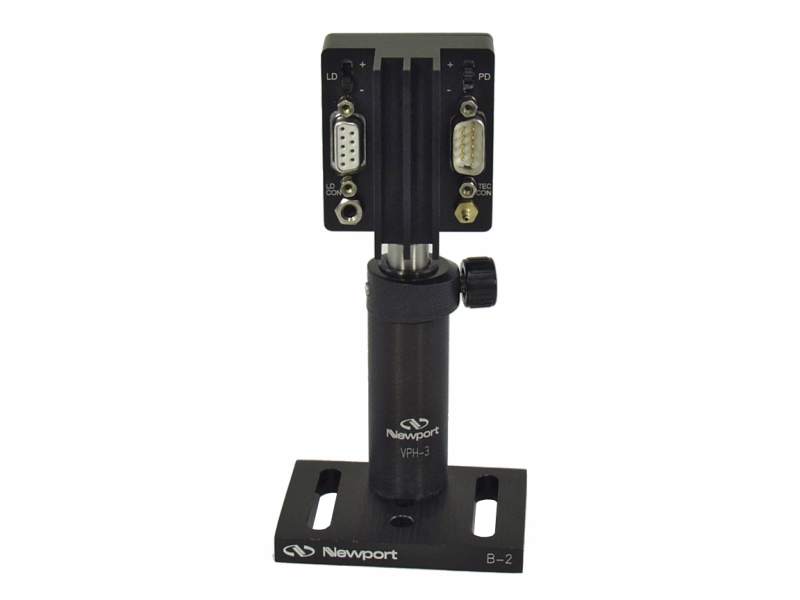

  • Laser Driver Connector Type
    DB9 Female
  • TEC Controller Connector Type
    DB9 Male
  • Dimensions
    57.2 x 50.8 x 40.6 mm
