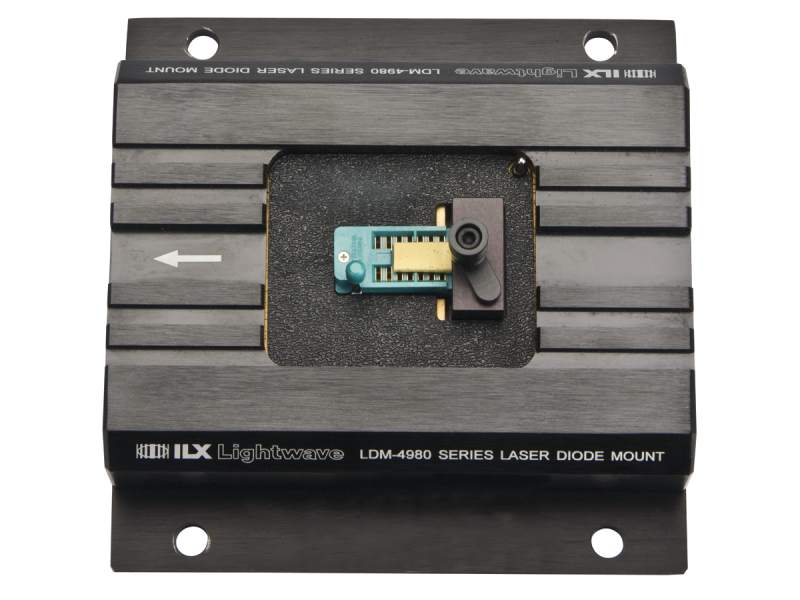

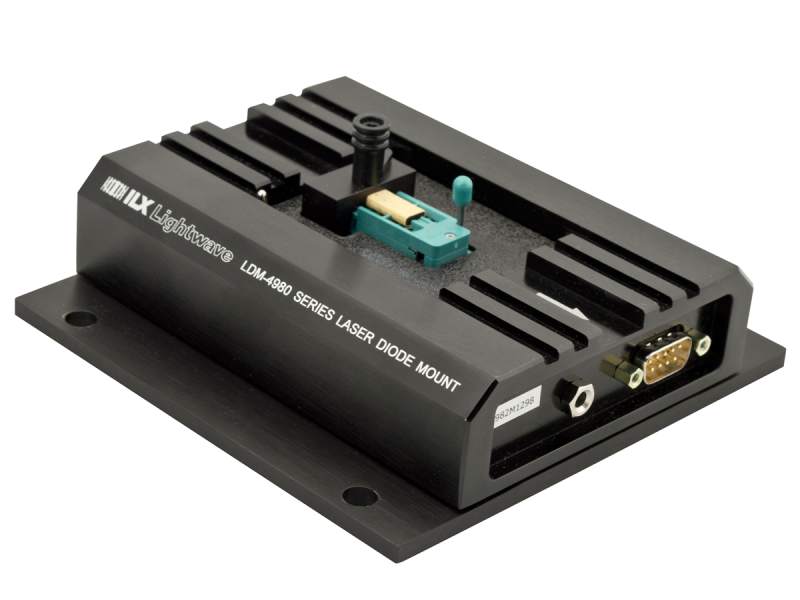

Laser Diode Mount, 8-pin Mini-DIL, Temp Controlled

Technical Specs

  • Package Type
    8-pin Mini-DIL
  • Laser Current
    2 A
  • TE Cooler
    Yes
  • TE Current Range
    -6.0 to +6.0 A
  • TE Voltage Range
    -4.2 to +4.2 V
  • Temperature Range
    -5 to 50°C
  • Temperature Sensor
    10 kΩ NTC Thermistor
  • Laser Driver Connector Type
    Female 9-pin DSUB
  • TEC Controller Connector Type
    Male 9-pin DSUB
  • Dimensions
    39.4 x 140 x 140 mm
