Compare Model Drawings, CAD & Specs Isolator Height Load per Isolator Minimum Isolator Load Interface Compatibility Base size Availability Price
$131
M-ND01-A 35 mm 115 kg 30 kg Breadboard, Microlock 64 x 38 mm $131

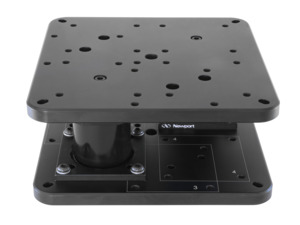

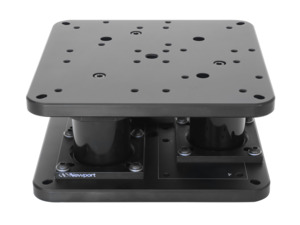

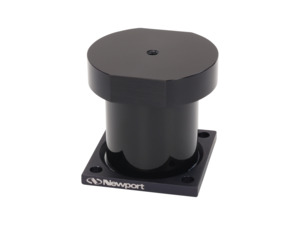

NewDamp elastomer vibration isolators with constant natural frequency design model nd30
$367
3 Weeks
M-ND20-A 83 mm 115 kg 20 kg Breadboard, Microlock 114 x 114 mm
3 Weeks
$367
NewDamp elastomer vibration isolators with constant natural frequency design model nd30
$424
M-ND30-A 83 mm 135 kg 30 kg Breadboard, Microlock 114 x 114 mm $424
$277
3 Weeks
M-ND40-A 67 mm 200 kg 45 kg Breadboard, Microlock X95 Rail 76 x 76 mm
3 Weeks
$277
$277
M-ND40-B 67 mm 200 kg 45 kg Breadboard, Microlock 64 x 64 mm $277
$333
4 Weeks
M-ND41-A 57 mm 100 kg 30 kg Breadboard, Microlock X95 Rail 64 x 64 mm
4 Weeks
$333
$311
M-ND41-B 57 mm 100 kg 30 kg Breadboard, Microlock 64 x 64 mm $311
NewDamp elastomer vibration isolators with constant natural frequency design model nd30
$157
3 Weeks
M-ND50-A 33 mm 13 kg 8 kg Breadboard, Microlock 64 x 64 mm
3 Weeks
$157
$131
4 Weeks
ND01-A 35 mm 115 kg 30 kg Breadboard, Microlock 64 x 38 mm
4 Weeks
$131
NewDamp elastomer vibration isolators with constant natural frequency design model nd30
$367
3 Weeks
ND20-A 83 mm 115 kg 20 kg Breadboard, Microlock 114 x 114 mm
3 Weeks
$367
NewDamp elastomer vibration isolators with constant natural frequency design model nd30
$424
ND30-A 83 mm 135 kg 30 kg Breadboard, Microlock 114 x 114 mm $424
$277
ND40-A 67 mm 200 kg 45 kg Breadboard, Microlock X95 Rail 76 x 76 mm $277
$277
ND40-B 67 mm 200 kg 45 kg Breadboard, Microlock 64 x 64 mm $277
$333
3 Weeks
ND41-A 57 mm 100 kg 30 kg Breadboard, Microlock X95 Rail 64 x 64 mm
3 Weeks
$333
$311
4 Weeks
ND41-B 57 mm 100 kg 30 kg Breadboard, Microlock 64 x 64 mm
4 Weeks
$311
NewDamp elastomer vibration isolators with constant natural frequency design model nd30
$157
ND50-A 33 mm 13 kg 8 kg Breadboard, Microlock 64 x 64 mm $157
$188
ND60-A 33 mm 8 kg 6 kg Breadboard, Microlock 64 x 64 mm $188

Features

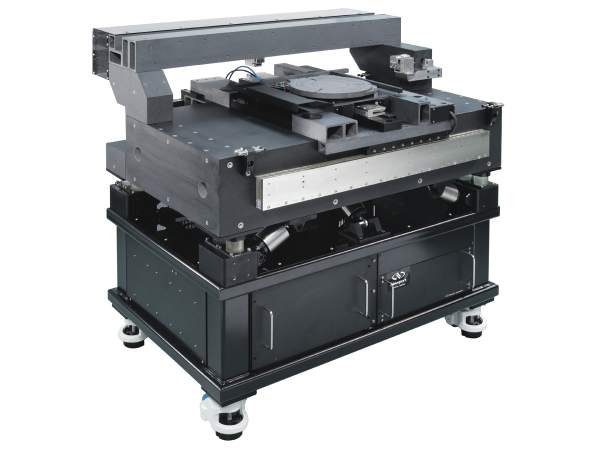

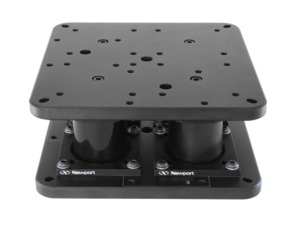

Ideal Solution for High Throughput Motion or Machinery Applications

NewDamp isolators provide a remarkably high damping with loss factors around 0.5 to 0.8 at room temperatures in the 10–100 Hz frequency range. This level of damping is two to five times better than other commercial elastomers. The high damping factor makes them ideal for supporting and damping the high acceleration amplitudes produced by very high throughput stages used in wafer positioning, inspection and electronic manufacturing applications. NewDamp elastomers can be built into equipment isolation supports and even custom machinery feet.

ND50 Natural frequency of vertical vibration vs. load.

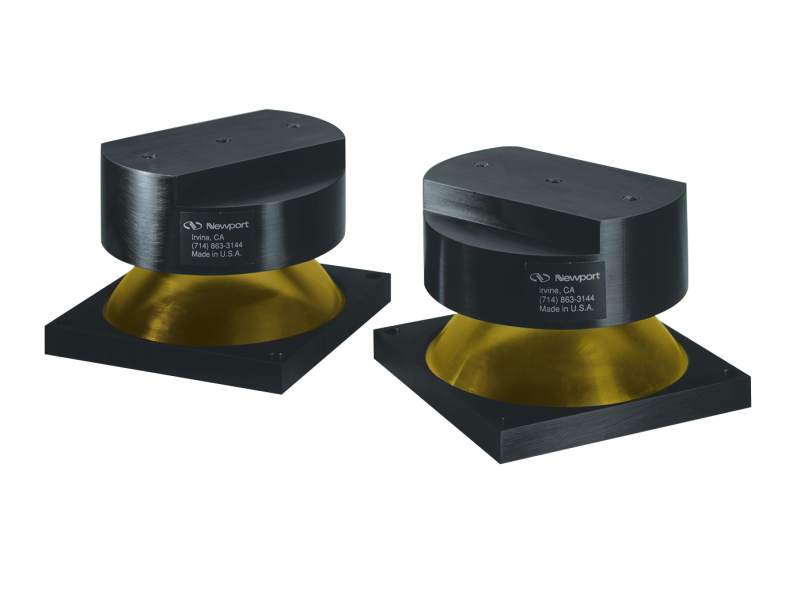

Superior Constant Natural Frequency (CNF) Design

Constant Natural Frequency (CNF) is a complex property that reduces sensitivity to load deviations and offers a high degree of modal decoupling. The natural frequency of most elastomeric mounts lowers with increasing mass or increases with decreasing mass. This means that the vibration isolation characteristics will vary with load. NewDamp elastomeric isolators use special geometry profiled elastomers and mounting fixtures. These isolators accommodate changes in load with changes in stiffness which holds the stiffness to mass ratio constant. As a result, the CNF isolators deliver much better isolation than even softer conventional isolators do.

Faster Settling Times

A remarkable property of NewDamp™ isolators is their ability to quickly attenuate the transient motions, thereby reducing the settling time of the equipment after the stage movements or other disturbances. The following comparison was made for a dual-axis air bearing stage mounted on a granite basis (total weight: 800 kg) and supported by four NewDamp™ ND40 isolators.

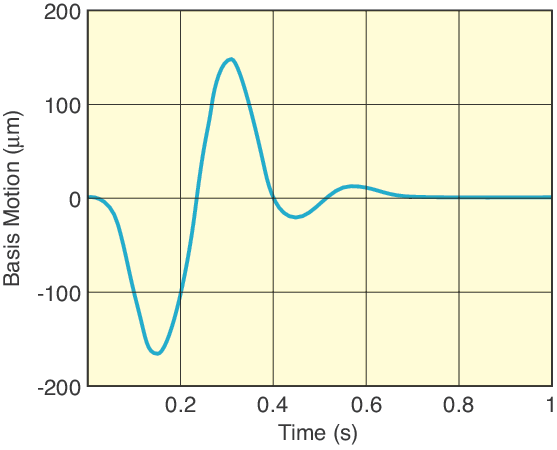

ND40 isolator settling time.

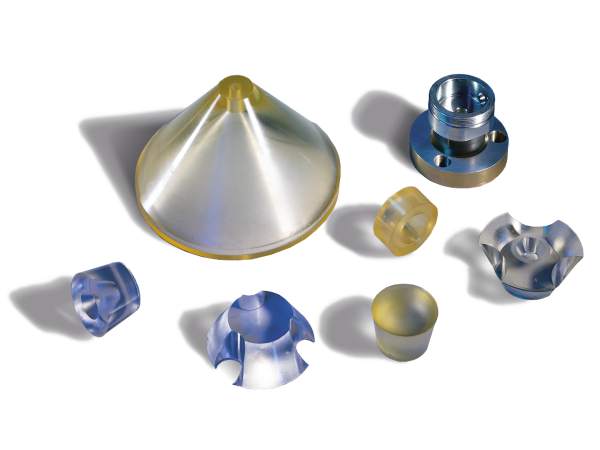

Super High Damping Material

NewDamp products exhibit a remarkably high damping with loss factors around 0.5 to 0.8 at room temperatures in the 10–100 Hz frequency range which is two to five times better than other commercial elastomers. The high damping factor makes them ideal for supporting and damping the high acceleration amplitudes produced by very high throughput stages used in wafer positioning and electronic manufacturing applications. NewDamp elastomers can be built into equipment isolation supports and even custom machinery feet.

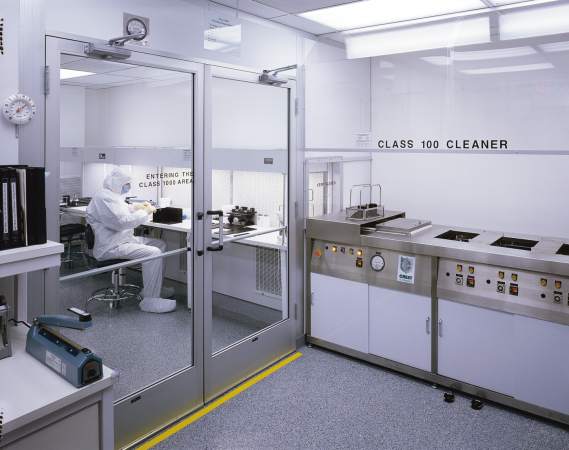

Cleanroom Compatible Design

NewDamp is made from a highly engineered polyurethane U-16 compound that is fully cleanroom compatible. These products have been used in Class 100 Fabs to support wafer inspection and positioning systems. NewDamp polymers meet NASA spacecraft use outgassing requirements with a Total Mass Loss (TML) of only 0.72%; and Collected Volatile Condensable Material (CVCM) of only 0.01% (testing per the American Society of Testing and Materials standard E-595-77/84/90).

and Collected Volatile Condensable Material (CVCM) of only 0.01% (testing per the American Society of Testing and Materials standard E-595-77/84/90).

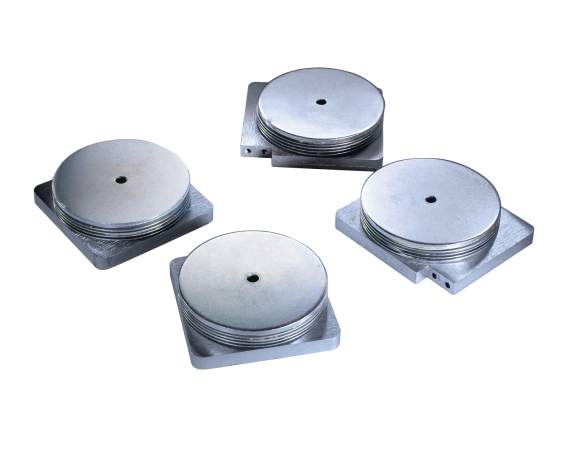

Custom Design Capabilities

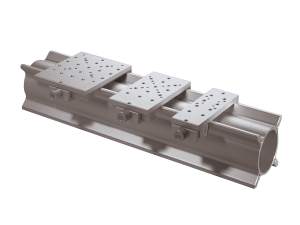

NewDamp™ elastomers are available as elastic elements, to be incorporated into the customer's vibration isolation system, with Newport standard interfaces (Microlock; X95; breadboard) as standard vibration isolators, and with Newport custom interface plates, as custom vibration isolators. Moreover, the Newport vibration control engineering group has developed proprietary software and test systems to customize elastomers for specific machinery needs. Once provided with primary machinery characteristics such as load, shock response, and resonance modes, Newport can develop a tuned solution. First articles can be produced quickly in our rapid prototype shops. Contact Newport Sales for more information.
