Compare Model Drawings, CAD & Specs Mounting Holes Width Length Availability Price

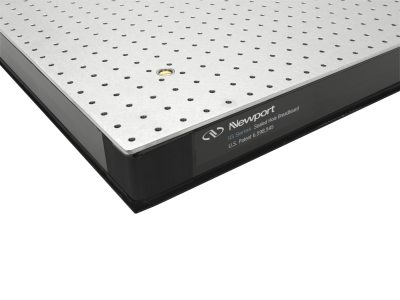

Honeycomb Optical Breadboard, 3.4 mm Skin, 12 x 12 x 2.3 in., 1/4-20, Microlocks
$981
4 Weeks
1/4-20 12 in. 12 in.
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 12 x 24 x 2.3 in., 1/4-20, Microlocks
$1,069
4 Weeks
1/4-20 12 in. 24 in.
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 12 x 36 x 2.3 in., 1/4-20, Microlocks
$1,147
4 Weeks
1/4-20 12 in. 36 in.
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 12 x 48 x 2.3 in., 1/4-20, Microlocks
$1,317
4 Weeks
1/4-20 12 in. 48 in.
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 24 x 24 x 2.3 in., 1/4-20, Microlocks
$1,361
4 Weeks
1/4-20 24 in. 24 in.
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 24 x 36 x 2.3 in., 1/4-20, Microlocks
$1,477
4 Weeks
1/4-20 24 in. 36 in.
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 24 x 48 x 2.3 in., 1/4-20, Microlocks
$1,647
4 Weeks
1/4-20 24 in. 48 in.
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 24 x 60 x 2.3 in., 1/4-20, Microlocks
$1,876
4 Weeks
1/4-20 24 in. 60 in.
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 24 x 72 x 2.3 in., 1/4-20, Microlocks
$2,598
4 Weeks
1/4-20 24 in. 72 in.
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 36 x 36 x 2.3 in., 1/4-20, Microlocks
$1,758
4 Weeks
1/4-20 36 in. 36 in.
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 36 x 48 x 2.3 in., 1/4-20, Microlocks
$2,153
4 Weeks
1/4-20 36 in. 48 in.
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 36 x 60 x 2.3 in., 1/4-20, Microlocks
$2,506
4 Weeks
1/4-20 36 in. 60 in.
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 36 x 72 x 2.3 in., 1/4-20, Microlocks
$2,803
4 Weeks
1/4-20 36 in. 72 in.
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 48 x 48 x 2.3 in., 1/4-20, Microlocks
$2,380
4 Weeks
1/4-20 48 in. 48 in.
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 48 x 60 x 2.3 in., 1/4-20, Microlocks
$2,759
4 Weeks
1/4-20 48 in. 60 in.
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 48 x 72 x 2.3 in., 1/4-20, Microlocks
$3,131
4 Weeks
1/4-20 48 in. 72 in.
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 48 x 96 x 2.3 in., 1/4-20, Microlocks
$3,691
4 Weeks
1/4-20 48 in. 96 in.
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 300 x 300 x 58 mm, Microlocks, M6
$981
4 Weeks
M6 300 mm 300 mm
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 300 x 600 x 58 mm, Microlocks, M6
$1,069
4 Weeks
M6 300 mm 600 mm
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 300 x 900 x 58 mm, Microlocks, M6
$1,147
4 Weeks
M6 300 mm 900 mm
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 300x1200x58 mm, Microlocks, M6
$1,317
4 Weeks
M6 300 mm 1200 mm
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 600 x 600 x 58 mm, Microlocks, M6
$1,361
4 Weeks
M6 600 mm 600 mm
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 600 x 900 x 58 mm, Microlocks, M6
$1,477
4 Weeks
M6 600 mm 900 mm
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 600x1200x58 mm, Microlocks, M6
$1,647
4 Weeks
M6 600 mm 1200 mm
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 600x1500x58 mm, Microlocks, M6
$1,876
4 Weeks
M6 600 mm 1500 mm
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 600x1800x58 mm, Microlocks, M6
$2,598
4 Weeks
M6 600 mm 1800 mm
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 900 x 900 x 58 mm, Microlocks, M6
$1,758
4 Weeks
M6 900 mm 900 mm
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 900x1200x58 mm, Microlocks, M6
$2,153
4 Weeks
M6 900 mm 1200 mm
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 900x1500x58 mm, Microlocks, M6
$2,506
4 Weeks
M6 900 mm 1500 mm
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 900x1800x58 mm, Microlocks, M6
$2,803
4 Weeks
M6 900 mm 1800 mm
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 1200x1200x58 mm, Microlocks, M6
4 Weeks
M6 1200 mm 1200 mm
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 1200x1500x58 mm, Microlocks, M6
$2,759
4 Weeks
M6 1200 mm 1500 mm
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 1200x1800x58 mm, Microlocks, M6
$3,131
4 Weeks
M6 1200 mm 1800 mm
4 Weeks
Honeycomb Optical Breadboard, 3.4 mm Skin, 1200x2400x58 mm, Microlocks, M6
$3,691
4 Weeks
M6 1200 mm 2400 mm
4 Weeks

For industrial grade optical breadboards without microlocks, click here

Specifications

  • Type
    Honeycomb Core Optical Breadboard
  • Modal Damping
    No
  • Broadband Damping
    Constrained layer core, damped working surface, and composite edge finish
  • Thickness
    2.3 in. (59 mm)
  • Working Surface
    0.134 in. (3.4 mm) thick 430 ferromagnetic stainless steel
  • Surface Flatness
    ±0.006 in. (0.15 mm) over any 2 ft. (600 mm) square
  • Bottom Skin Material
    3.4 mm thick carbon steel
  • Microlocks
    Yes
  • Mounting Holes
    1/4-20
    M6 (M- Versions)
  • Mounting Hole Type
    Cut (not rolled) threads with countersink
  • Mounting Hole Pattern
    1.0 in. grid
    25 mm grid (M- Versions)
  • Mounting Hole Borders
    0.5 in.
    12.5 mm (M- Versions)
  • Hole Sealing Type
    Easy clean conical cup, 0.75 in. (19 mm) deep, non-corrosive high impact polymer material
  • Core Design
    Trussed hexagonal honeycomb, vertically bonded closed cell construction, 0.010 in. (0.25 mm) steel sheet materials, 0.030 in. (0.76 mm) triple core interface

Features
