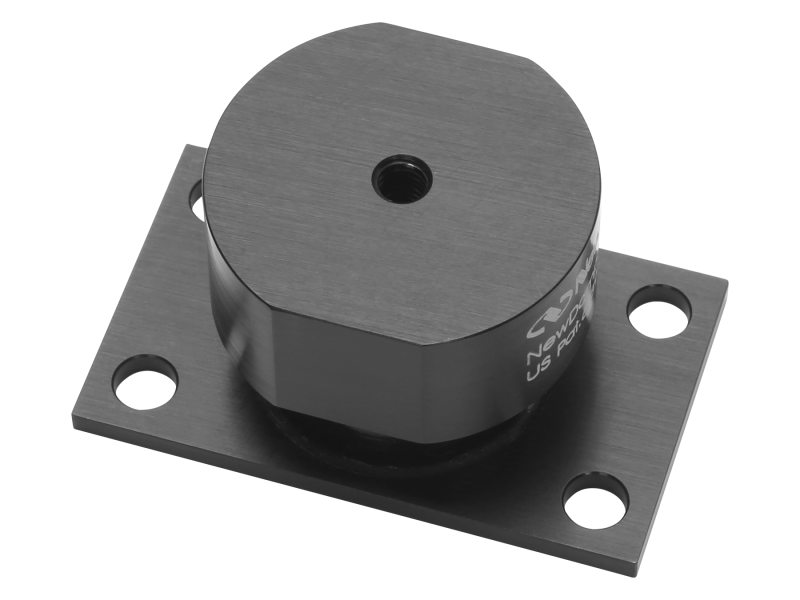

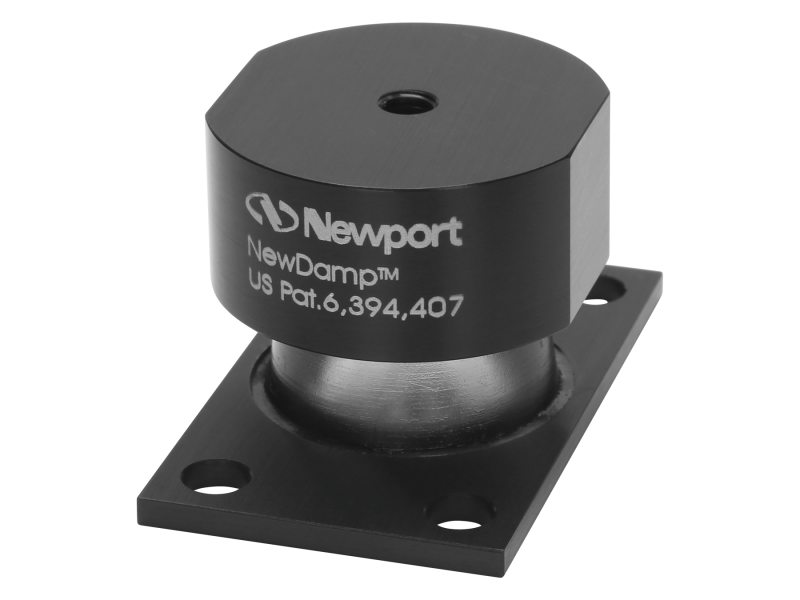

NewDamp Elastomeric Mount, 70-250 lb., BB Microlock Compatible

Model: ND01-A

NewDamp Elastomeric Mount, 70-250 lb., BB Microlock Compatible

Model: ND01-A

Technical Specs

  • Isolator Height
    35 mm
  • Load per Isolator
    115 kg
  • Minimum Isolator Load
    30 kg
  • Interface Compatibility
    Breadboard, Microlock
  • Base size
    64 x 38 mm

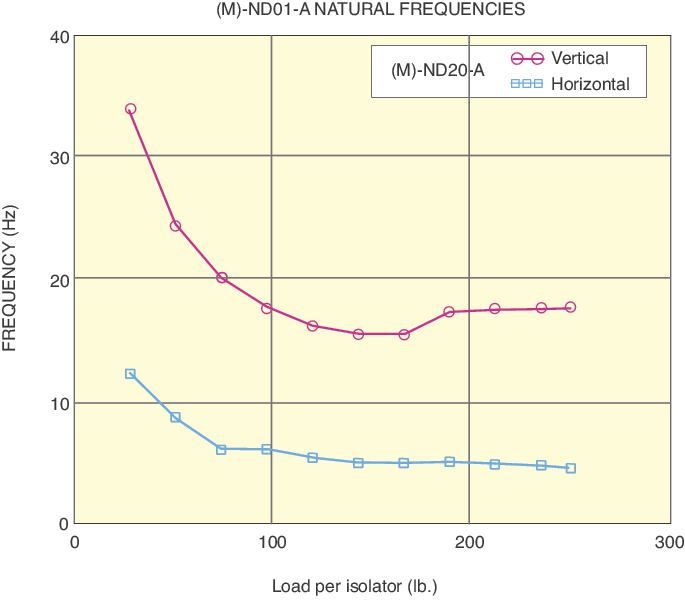

  • Natural Frequency, Vertical Max.
    22 Hz
  • Natural Frequency, Vertical Min.
    21 Hz
  • Natural Frequency, Horizontal Max.
    7 Hz
  • Natural Frequency, Horizontal Min.
    5 Hz

Resources & Downloads

2D / 3D CAD Software
Drawings And Cad
