Fiber Optic Illuminator

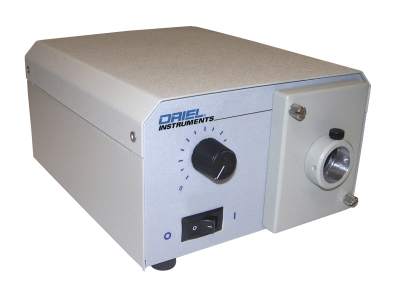

The 66088 is a cost-effective, compact, fully integrated 150 W QTH Light Souce designed to be easily coupled for light delivery into a fiber optic light guide. Its plug and play capability as well as highly stable, integrated power supply make this illuminator ideal for machine vision or quantum efficiency measurement applications.

150 W QTH lamp provides broadband VIS-IR emission
Minimal light ripple with integrated DC power supply
No lamp alignment necessary
Manual control knob on front panel for simple light intensity adjustment
Remote intensity control and shutter function possible
CE, RoHS, UL/c-UL compliant (pending)

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		66088Fiber Optic Illuminator, 150 W QTH	UNIVERSAL		In Stock	$1,295

Specifications

Lamp Type
QTH
Lamp Wattage
150 W
F/#
F/1.1
Intensity Control
Solid State 0-100%
Light Ripple
±6% pk. to pk. rms

Line Regulation
±1% change in light intensity for a ±10% change in line voltage
Power Requirements
100/240 VAC, 50/60 Hz
Lamp Voltage
21 VAC, nominal; adjustable from 0 - 21 VAC
Color Temperature
3200 K Maximum

Features

150 W QTH Lamp Provides Broadband VIS-IR Emission

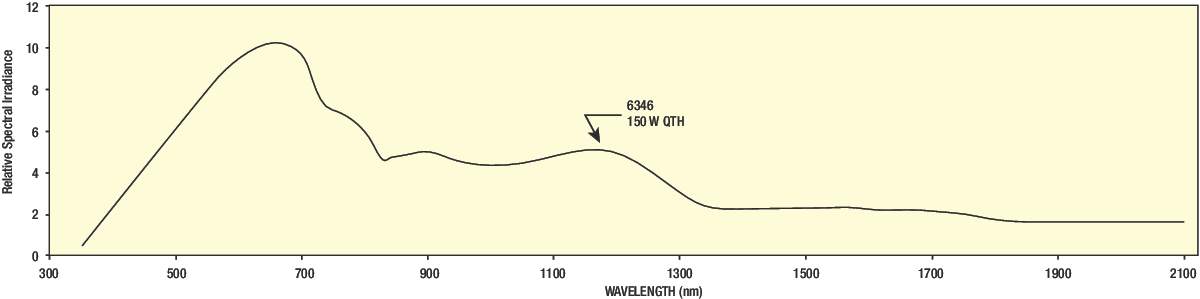

The 66088 uses the 150 W QTH lamp as its illumination source. QTH lamps exhibit better output stability than arc lamps and do not produce strong UV light emission or toxic ozone. Their smooth spectral output curve make them useful for radiometric and photometric applications. The 6346 is a specialized QTH lamp with a dichroic reflector for collecting any backscatter from the lamp and focusing nearly all of the lamp's output light into a focused point several mm in diameter.

No Lamp Alignment Necessary

Upon receiving the 66088, the unit is ready to use after a simple drop-in installation of the lamp. The user does not have to spend time aligning the lamp or programming the power supply to output the proper voltage and current. Simply plug in the unit and it is ready for use.

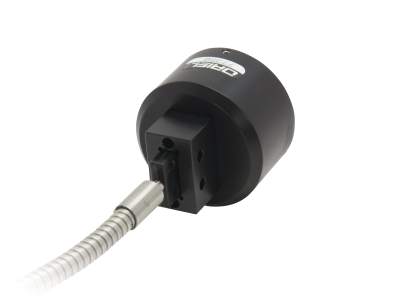

Fiber Coupling Adapter Required

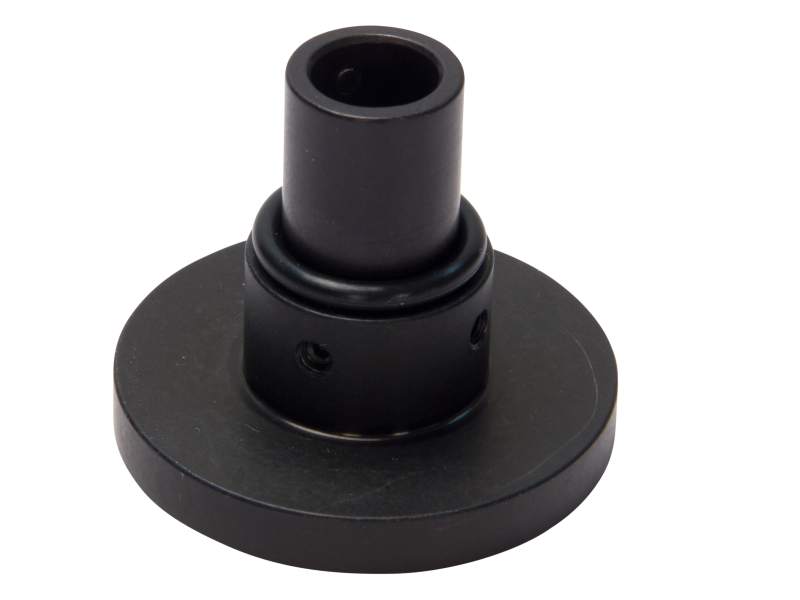

The 66088 light source can be used as a fiber optic coupling solution for flexible light delivery. When using a Liquid Light Guide or Fiber Bundle terminated with an 11 mm ferrule, Fiber Bundle Mount model is required for compatibility. Simply install the mount to the output port of the 66088 and insert the 11 mm ferrule end.

Minimized Light Ripple with Integrated DC Power Supply

QTH lamps operate in constant current mode in order to prolong lifetime by maintaining a stable light output throughout the operation of the lamp. Highly stable light output with minimal ripple is dependent on the current supplied to the QTH lamp's filament. Integrated into the 66068 is a highly regulated power supply, capable of supplying current with such stability that output light ripple is maintained to ±6% peak to peak.

Manual Control Knob on Front Panel for Simple Light Intensity Adjustment

Adjusting the output light intensity is as easy as turning in the knob located on the front panel. Output intensity and thus color temperature of the lamp can be adjusted from 0 to 100%, or 0 to 3300 K.

Remote intensity and shutter control functionality

If remote control of the light source is preferred, the output intensity of the 66088 can be adjusted by connecting an external 0 to 5 VDC power supply to the 9-pin, D-style connector on the rear panel of the illuminator. Using this external connector also enables remote on/off functionality, in which a TTL signal can be input to turn the lamp on/off, mimicking the function of an external shutter.

Accessories

Replacement Lamp

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

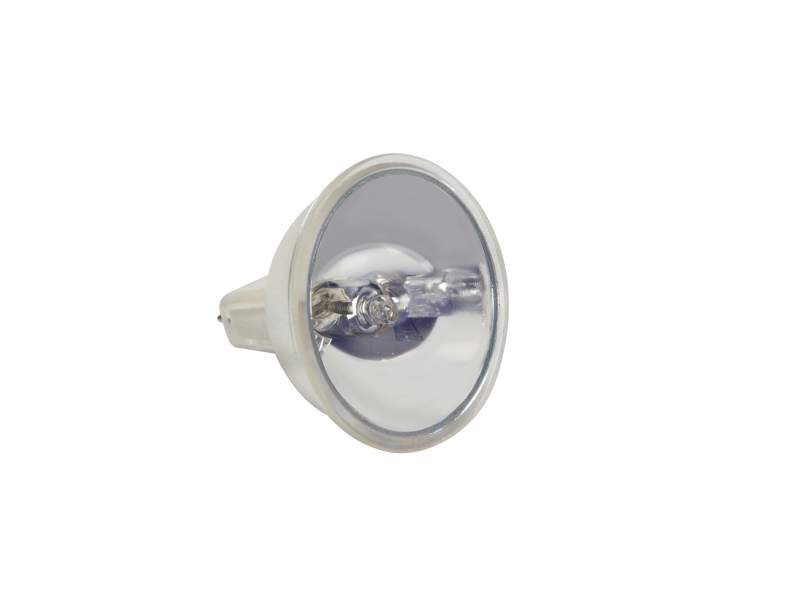

		6346Quartz Tungsten Halogen Lamp, 150 W, Integrated Full Reflector	UNIVERSAL		In Stock	$105

Liquid Light Guides

Description	Compatibility	Avail.	Price
76841Liquid Light Guide, 79 in., 220-600 nm, 0.12 in. Core, 0.43 NA	UNIVERSAL	Contact Us	$1,250
76843Liquid Light Guide, 79 in., 220-600 nm, 0.2 in. Core, 0.43 NA	UNIVERSAL	In Stock	$1,870
76848Liquid Light Guide, Bifurcated, 340-800 nm, 0.12 in. Core, 39.4 in. Legs	UNIVERSAL	4 Weeks	$1,665
76846Liquid Light Guide, Bifurcated, 300-650 nm, 0.12 in. Core, 39.4 in. Legs	UNIVERSAL	Contact Us	$1,745
76842Liquid Light Guide, 39.4 in., 220-600 nm, 0.2 in. Core, 0.43 NA	UNIVERSAL	Contact Us	$1,350
76847Liquid Light Guide, Bifurcated, 300-650 nm, 0.12 in. Core, 79 in. Legs	UNIVERSAL	5 Weeks	$1,640
77564Fiber Optic Bundle, Fused Silica, 11 mm Ferrules, 0.125 in., 36 in.	UNIVERSAL	6 Weeks	$785
77554Liquid Light Guide, 39.4 in., 300-650 nm, 0.12 in. Core, 0.59 NA	UNIVERSAL	Contact Us	$300
77555Liquid Light Guide, 79 in., 300-650 nm, 0.12 in. Core, 0.59 NA	UNIVERSAL	In Stock	$430
77557Liquid Light Guide, 79 in., 300-650 nm, 0.2 in. Core, 0.59 NA	UNIVERSAL	Contact Us	$645

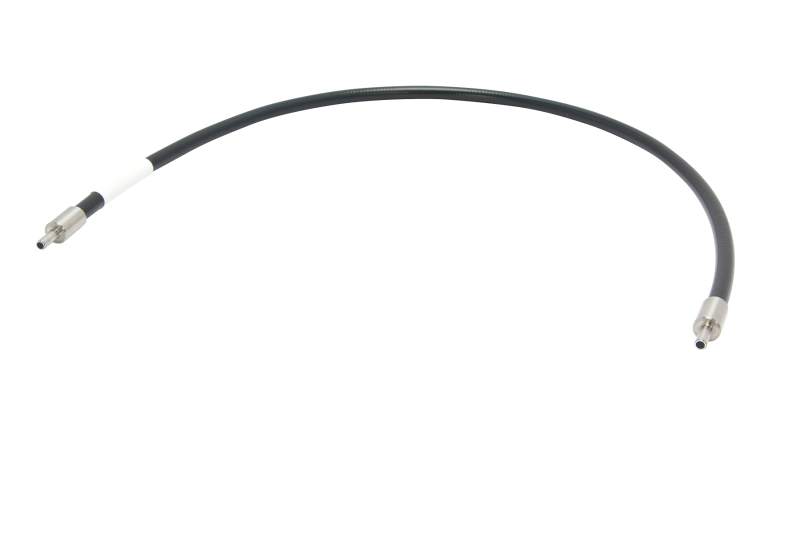

77576Fiber Optic Bundle, High Grade FS, 11 mm Ferrule, 0.063 in., 36 in.	UNIVERSAL	Contact Us	$835
76849Liquid Light Guide, Bifurcated, 340-800 nm, 0.12 in. Core, 79 in. Legs	UNIVERSAL	4 Weeks	$2,085
77556Liquid Light Guide, 39.4 in., 300-650 nm, 0.2 in. Core, 0.59 NA	UNIVERSAL	4 Weeks	$505
77568Liquid Light Guide, 39.4 in., 340-800 nm, 0.2 in. Core, 0.59 NA	UNIVERSAL	In Stock	$465
77575Fiber Optic Bundle, High Grade FS, 11 mm Ferrule, 0.063 in., 24 in.	UNIVERSAL	4 Weeks	$705
77565Fiber Optic Bundle, Bifurcated, High Grade Fused Silica, 0.22 NA	UNIVERSAL	In Stock	$2,185
77566Liquid Light Guide, 39.4 in., 340-800 nm, 0.12 in. Core, 0.59 NA	UNIVERSAL	4 Weeks	$430
77567Liquid Light Guide, 79 in., 340-800 nm, 0.12 in. Core, 0.59 NA	UNIVERSAL	2 Weeks	$480
77569Liquid Light Guide, 79 in., 340-800 nm, 0.2 in. Core, 0.59 NA	UNIVERSAL	4 Weeks	$680
77577Fiber Optic Bundle, High Grade FS, 11 mm Ferrule, 0.125 in., 24 in.	UNIVERSAL	Contact Us	$1,135
77628Liquid Light Guide, 39.4 in., 300-650 nm, 0.3 in. Core, 0.59 NA	UNIVERSAL	4 Weeks	$705
77635Liquid Light Guide, 79 in., 420-2000 nm, 0.12 in. Core, 0.52 NA	UNIVERSAL	In Stock	$830
77634Liquid Light Guide, 39.4 in., 420-2000 nm, 0.12 in. Core, 0.52 NA	UNIVERSAL	Contact Us	$385
77636Liquid Light Guide, 39.4 in., 420-2000 nm, 0.2 in. Core, 0.52 NA	UNIVERSAL	Contact Us	$500
77638Liquid Light Guide, 39.4 in., 420-2000 nm, 0.3 in. Core, 0.52 NA	UNIVERSAL	4 Weeks	$895
77632Liquid Light Guide, 79 in., 340-800 nm, 0.3 in. Core, 0.59 NA	UNIVERSAL	Contact Us	$1,250
77637Liquid Light Guide, 79 in., 420-2000 nm, 0.2 in. Core, 0.52 NA	UNIVERSAL	4 Weeks	$730
77639Liquid Light Guide, 79 in., 420-2000 nm, 0.3 in. Core, 0.52 NA	UNIVERSAL	4 Weeks	$1,330
77629Liquid Light Guide, 79 in., 300-650 nm, 0.3 in. Core, 0.59 NA	UNIVERSAL	5 Weeks	$1,045
77631Liquid Light Guide, 39.4 in., 340-800 nm, 0.3 in. Core, 0.59 NA	UNIVERSAL	In Stock	$830

Fiber Bundles

Description	Compatibility	Avail.	Price

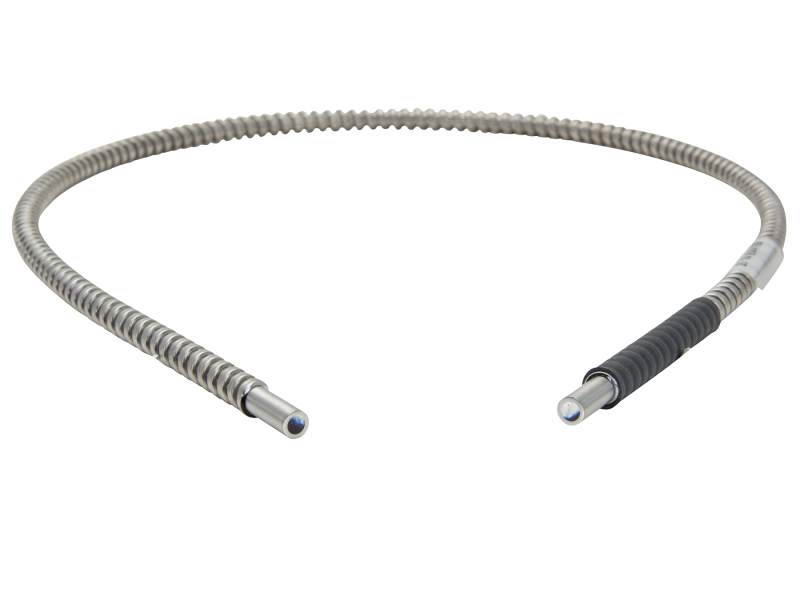

77524Fiber Optic Bundle, Glass, 11 mm Ferrules, 0.125 in. Diameter, 24 in. (RoHS Pending)	UNIVERSAL	3 Weeks	$200
77525Fiber Optic Bundle, Glass, 11 mm Ferrules, 0.125 in. Diameter, 36 in. (RoHS Pending)	UNIVERSAL	3 Weeks	$230

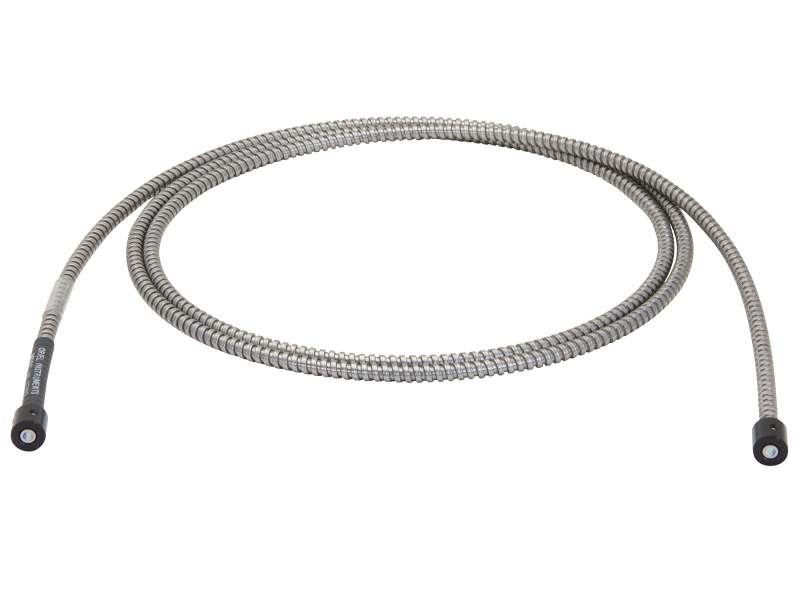

77527Fiber Optic Bundle, Glass, 11 mm Ferrules, 0.125 in. Diameter, 72 in.	UNIVERSAL	4 Weeks	$455
77526Fiber Optic Bundle, Glass, 11 mm Ferrules, 0.125 in. Diameter, 48 in.	UNIVERSAL	Contact Us	$300

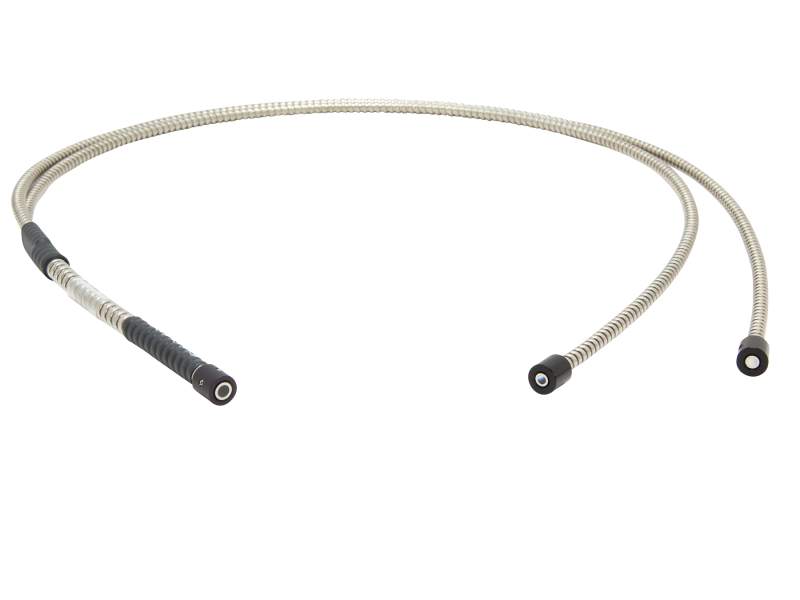

77533Fiber Optic Bundle, Bifurcated, Glass, 0.55 NA	UNIVERSAL	4 Weeks	$500
77817Fiber Bundle Mount, Circular Bundle to 1.5 Inch Male Flange	UNIVERSAL	In Stock	$145
