Fiber Optic Bundle, Glass, 11 mm Ferrules, 0.125 in. Diameter, 36 in. (RoHS Pending)

Fiber Optic Bundle, Glass, 11 mm Ferrules, 0.125 in. Diameter, 36 in. (RoHS Pending)

Model: 77525

$225

Compare

Add to List

Product Series Overview

Single Branch Fiber Optic Bundles

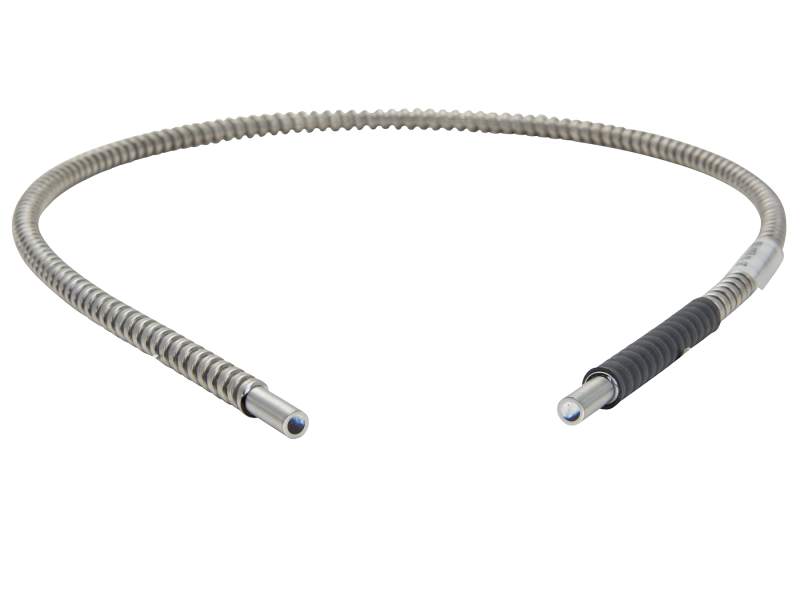

The 77525 Glass Fiber Optic Bundle uses a stainless steel protective sheathing around the fibers. This 36 inch long, 0.125 inch diameter glass fiber bundle uses a silica/silica polyimide buffer. It has 11 mm ferrule terminations for mounting in our standard fiber adapters.

Specifications

Technical Specs

Type

Single Branch Fiber Bundle
Core Diameter

3.2 mm
Numerical Aperture

0.56
Transmittance Range

400 - 1500 nm
Fiber Length

36 in.
Fiber Connector

11 mm Ferrule

Acceptance Cone, 2a

68°
F/#

0.9
Fiber Material

Glass
Transmittance

0.4

Type

Single Branch Fiber Bundle
Core Diameter

3.2 mm
Numerical Aperture

0.56
Transmittance Range

400 - 1500 nm
Fiber Length

36 in.
Fiber Connector

11 mm Ferrule

Acceptance Cone, 2a

68°
F/#

0.9
Fiber Material

Glass
Transmittance

0.4

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

LS-253a (619.2 kB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		77642 Fiber Bundle Ferrule, 11mm, 0.18 inch Inner Dia., 0.48 inch Length	UNIVERSAL		In Stock	$26
