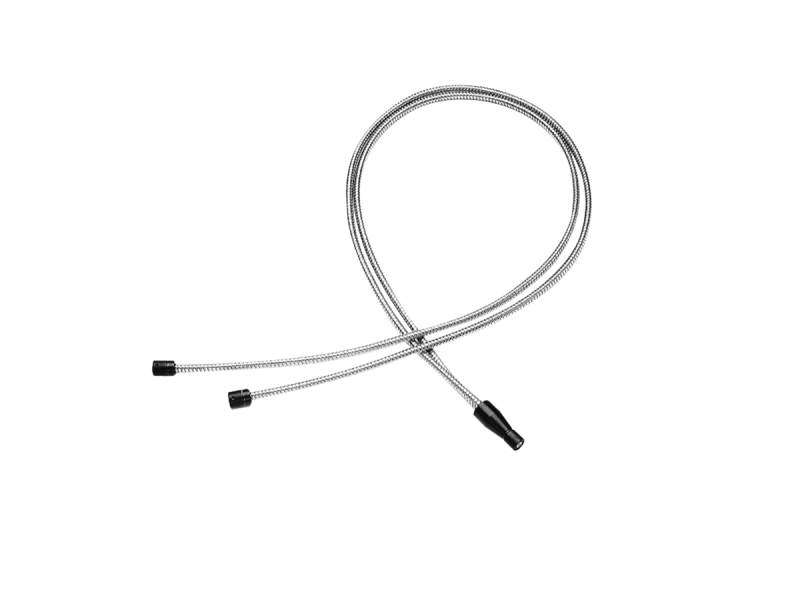

Fiber Optic Bundle, Bifurcated, High Grade Fused Silica, 0.22 NA
Fiber Optic Bundle, Bifurcated, High Grade Fused Silica, 0.22 NA
Model: 77565
In Stock
Product Series Overview
Multi-branch Fiber BundlesThe 77565 Bifurcated High Grade Fused Silica Fiber Optic Bundle is comb randomized to produce evenly divided outputs. When light is uniformly focused onto the large unified 0.22 NA input, each leg of a bifurcated bundle receives 43% of the total incident energy (approximately 4% is reflected at the input and output and packing fraction is 0.9). Note: these bundles are sensitive to position changes. Changing the position of the common end or either leg will change the output beam distribution and power. Try to avoid movement of the bundle during a measurement.
Resources & Downloads
2D Product Drawings
LS-253Ac(794.1 kB, PDF)
