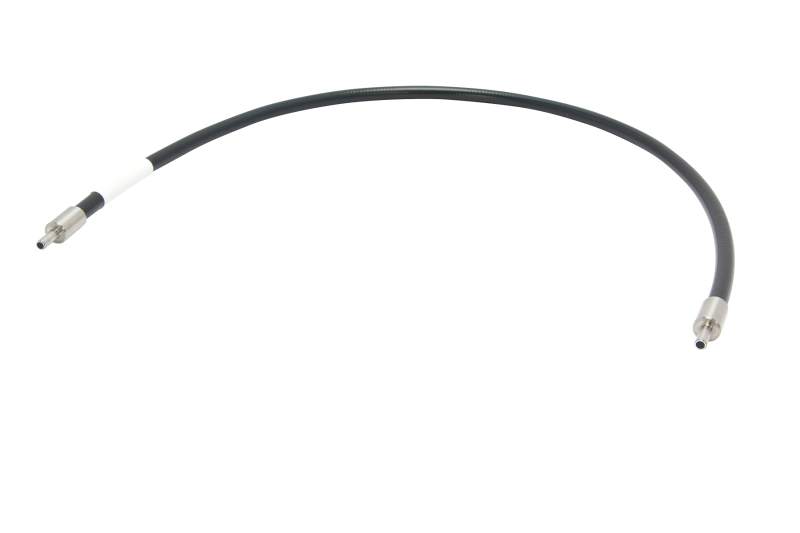

Fiber Optic Bundle, High Grade FS, 11 mm Ferrule, 0.063 in., 36 in.

Fiber Optic Bundle, High Grade FS, 11 mm Ferrule, 0.063 in., 36 in.

Model: 77576

$825

Compare

Add to List

Product Series Overview

Single Branch Fiber Optic Bundles

The 77576 High Grade Fused Silica Fiber Optic Bundle uses a stainless steel protective sheathing around the fibers. This 36 inch long, 0.063 inch diameter High Grade Fused Silica bundle uses a silica/silica polyimide buffer. It has 11 mm ferrule terminations for mounting in our standard fiber adapters.

Specifications

Technical Specs

Type

Single Branch Fiber Bundle
Core Diameter

1.6 mm
Numerical Aperture

0.22
Transmittance Range

260 - 2200 nm
Fiber Length

36 in.
Fiber Connector

11 mm Ferrule

Acceptance Cone, 2a

25°
F/#

2.3
Fiber Material

High Grade Fused Silica
Transmittance

0.55

Type

Single Branch Fiber Bundle
Core Diameter

1.6 mm
Numerical Aperture

0.22
Transmittance Range

260 - 2200 nm
Fiber Length

36 in.
Fiber Connector

11 mm Ferrule

Acceptance Cone, 2a

25°
F/#

2.3
Fiber Material

High Grade Fused Silica
Transmittance

0.55

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

LS-253a (619.2 kB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		77642 Fiber Bundle Ferrule, 11mm, 0.18 inch Inner Dia., 0.48 inch Length	UNIVERSAL		In Stock	$26
