Fiber Optic Bundle, Glass, 11 mm Ferrules, 0.125 in. Diameter, 72 in.
Fiber Optic Bundle, Glass, 11 mm Ferrules, 0.125 in. Diameter, 72 in.
Model: 77527
Product Series Overview

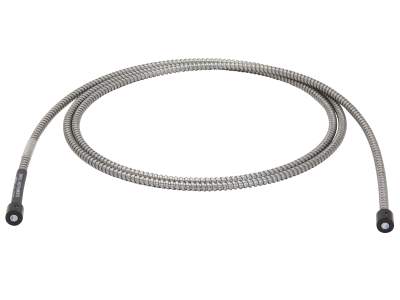

Single Branch Fiber Optic BundlesThe 77527 Glass Fiber Optic Bundle uses a stainless steel protective sheathing around the fibers. This 72 inch long, 0.125 inch diameter glass fiber bundle uses a silica/silica polyimide buffer. It has 11 mm ferrule terminations for mounting in our standard fiber adapters.
Specifications
- TypeSingle Branch Fiber Bundle
- Core Diameter3.2 mm
- Numerical Aperture0.56
- Transmittance Range400 - 1500 nm
- Fiber Length72 in.
- Fiber Connector11 mm Ferrule
- Acceptance Cone, 2a68°
- F/#0.9
- Fiber MaterialGlass
- Transmittance0.55
Resources & Downloads
2D Product Drawings
LS-253a(619.2 kB, PDF)
Related Products
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 77642Fiber Bundle Ferrule, 11mm, 0.18 inch Inner Dia., 0.48 inch Length |
Frequently Purchased Together
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 10BPF10-450Bandpass Filter, 25.4 mm, 450±2 nm Center, 10±2 nm FWHM | |||||
 | 77799Focusing Assembly, Fiber Bundle, Glass Aspheric, F/0.85, 4 mm Spot |
