Fiber Optic Detector, UV-Si, 200-1100 nm, 1.5 mW, DB15

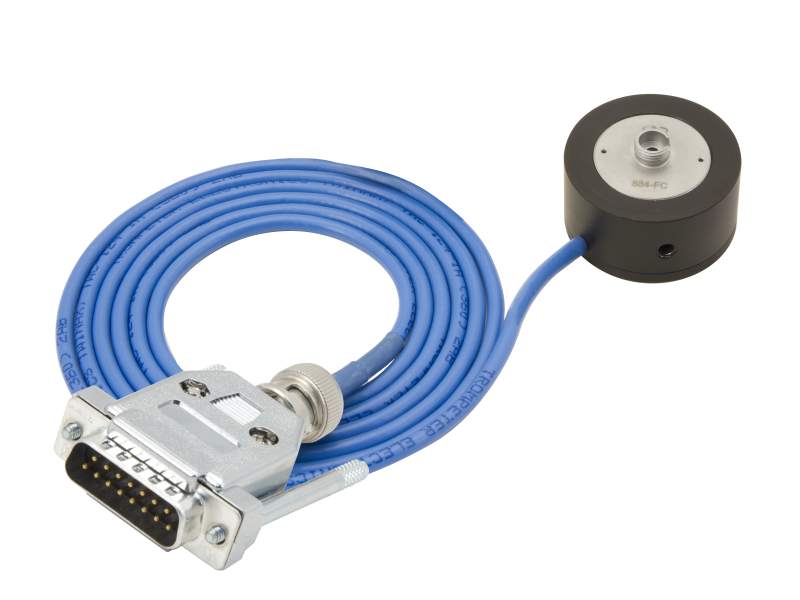

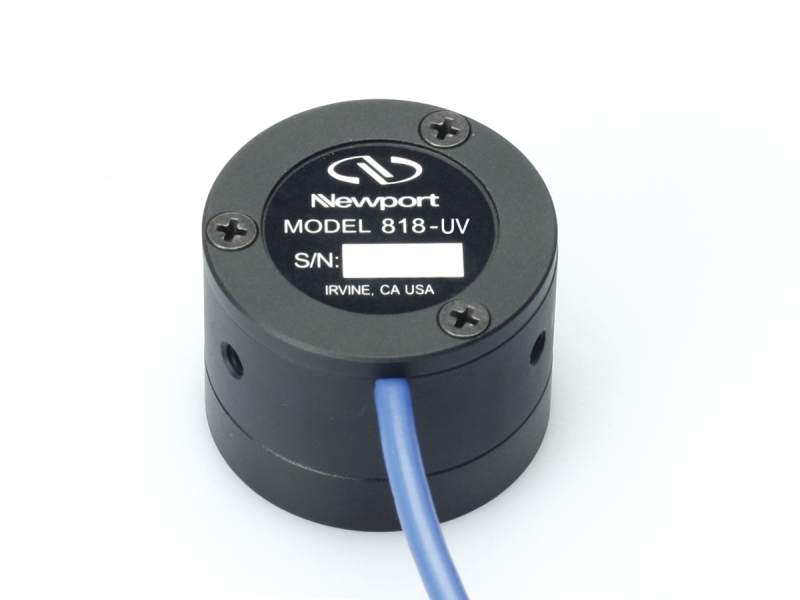

low cost photodiode-based fiber optic detector model 818-SL-L-FC-DB

Model: 818-UV-L-FC/DB

$608

Compare

Product Series Overview

818 Fiber-Optic Photodiode Power Sensors

The 818-UV-L-FC/DB is a flexible fiber optic detector based on the popular 818 series photodiode sensors, without an attenuator that comes with the standard 818 series. It can easily be converted to a free space detector simply by removing the 884-FC fiber optic adapter installed on it. Please note that models 818-UV-L and 818-UV-L/DB are no longer available for purchase. Purchase 818-UV-L-FC/DB and remove the connector and/or the fiber adapter.

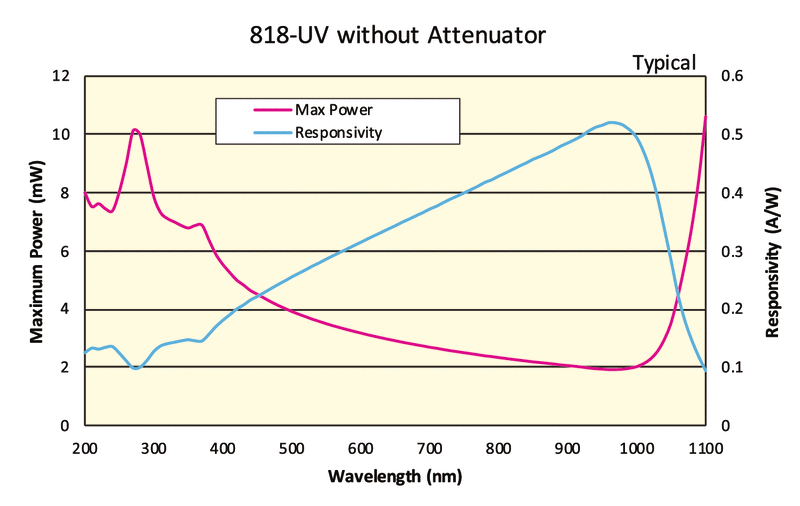

The newly redesigned UV photodiode (noted by the serial numbers 20,000 and above), which uses a 10 x 10 mm diode with a 10.3 mm diameter aperture on top of it, improves the maximum measurable power specifications.

Please refer to Newport Power Meter and Detector Legacy and Compatibility for a complete list of meters that are compatible with this model.

Specifications

Technical Specs

Detector Type
Post Mounted
Detector Input
Fiber-Optic
Fiber-Optic Connector
FC/PC, interchangeable
Detector Material
UV Enhanced Silicon
Spectral Range
200 - 1100 nm
Sensor Size
10 x 10 mm
Attenuator
None
Minimum Measurable Power
20 pW
Maximum Measurable Power Benchtop Meter
0.1 mW
Maximum Measurable Power Handheld Meter
0.1 mW
Maximum Power Density
0.2 W/cm²
Maximum Pulse Energy
0.1 nJ/cm²

Power Range
-75 to 1.8 dBm
Calibration Module
Removable DB15 Connector
Calibration Uncertainty
3.4% (220-300 nm)
1.65% (300-430 nm)
1.1% (430-1000 nm)
4.3% (1035-1065 nm)
Linearity
±1 %
Uniformity
±2 %
Rise Time
≤2 µs
Clear Aperture
Ø10.3 mm
Connector Type
DB15
Cable Length
1.5 m
RoHS
Not compliant

Detector Type
Post Mounted
Detector Input
Fiber-Optic
Fiber-Optic Connector
FC/PC, interchangeable
Detector Material
UV Enhanced Silicon
Spectral Range
200 - 1100 nm
Sensor Size
10 x 10 mm
Attenuator
None
Minimum Measurable Power
20 pW
Maximum Measurable Power Benchtop Meter
0.1 mW
Maximum Measurable Power Handheld Meter
0.1 mW
Maximum Power Density
0.2 W/cm²
Maximum Pulse Energy
0.1 nJ/cm²

Power Range
-75 to 1.8 dBm
Calibration Module
Removable DB15 Connector
Calibration Uncertainty
3.4% (220-300 nm)
1.65% (300-430 nm)
1.1% (430-1000 nm)
4.3% (1035-1065 nm)
Linearity
±1 %
Uniformity
±2 %
Rise Time
≤2 µs
Clear Aperture
Ø10.3 mm
Connector Type
DB15
Cable Length
1.5 m
RoHS
Not compliant

Resources & Downloads

2D Product Drawings

818-UV-L-FC-DB-DWG.pdf(100.6 kB, PDF)

Manuals

818-xx-L-FC Fiber Optic Detectors Quick Start Guide(24.9 kB, PDF)
RevB 818 Series Manual(2.6 MB, PDF)

Technical Notes

Other

818-UV-L-FC/DB Detector RoHS Certificate.pdf(272.9 kB, PDF)
818-SL & 818-UV RoHS Certificate(291.5 kB, PDF)
818 Series EU27 Declaration of Conformity(208 kB, PDF)

Literature

Fiber Optic Detector Datasheet(425.2 kB, PDF)
