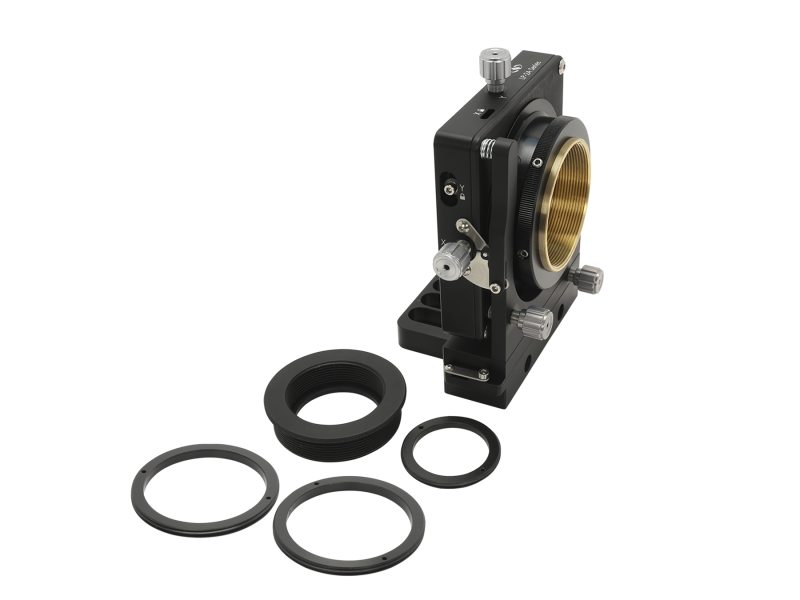

Precision Lens Positioner, 2.0 in., 100 TPI XYθXθY, 80 TPI Z

Technical Specs

  • Type
    Lens Positioner
  • Optic Diameter
    50.8 mm
  • Retaining Ring
    LP-2-T-RR (2 Included)
  • Retaining Ring Thread
    2.063-20
  • Thread Type
    1/4-20 and M6
  • Included Optic Holder
    LPLH-1.5T
  • Optical Axis Height
    76.2 mm
  • Adjustments
    XYZ θXθY
  • Angular Range
    ±5°
  • Adjustment Screw Thread
    80 TPI: Z, 100 TPI: XY θXθY
  • Travel, Z
    ±3.2 mm
  • Travel, X
    ±3.2 mm
  • Travel, Y
    ±3.2 mm
