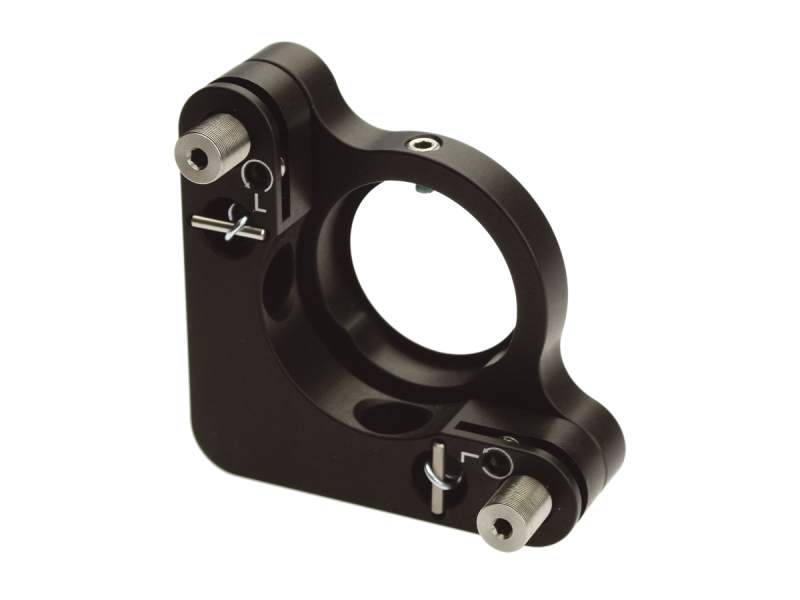

Mirror Mount, PERFORMA-i, 1.0 in., 80 TPI, 2 Locking Allen-Keys

Technical Specs

  • Mechanism
    Kinematic
  • Optic Diameter
    25.4 mm
  • Adjustment Screw Thread
    80 TPI
  • Adjustments
    θx, θy
  • Sensitivity
    4.8 arc sec
  • Angular Range
    ±4°
  • Material
    Anodized Aluminum
  • Drive Type
    Allen-Key, locking
  • Thread Type
    8-32 (M4) CLR
  • Optical Axis Height
    25.4 mm
  • Special Features
    Slim Profile
