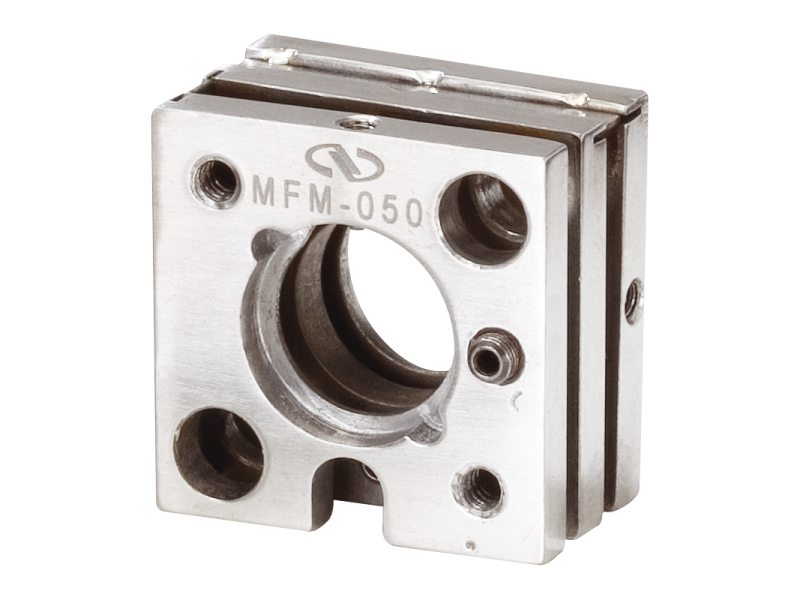

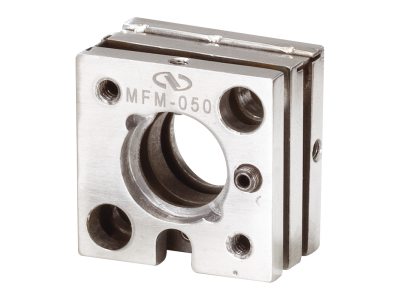

Industrial Optical Mount, Flexure, 0.5 in., 100-TPI Hex Adjustment x 2

Technical Specs

  • Mechanism
    Flexure
  • Optic Diameter
    12.7 mm
  • Adjustment Screw Thread
    100 TPI
  • Adjustments
    θx, θy
  • Sensitivity
    7 arc sec
  • Angular Range
    ±2.5°
  • Material
    Stainless Steel
  • Drive Type
    Allen-Key, non-locking
  • Thread Type
    4-40
  • Special Features
    Shock Resistant
