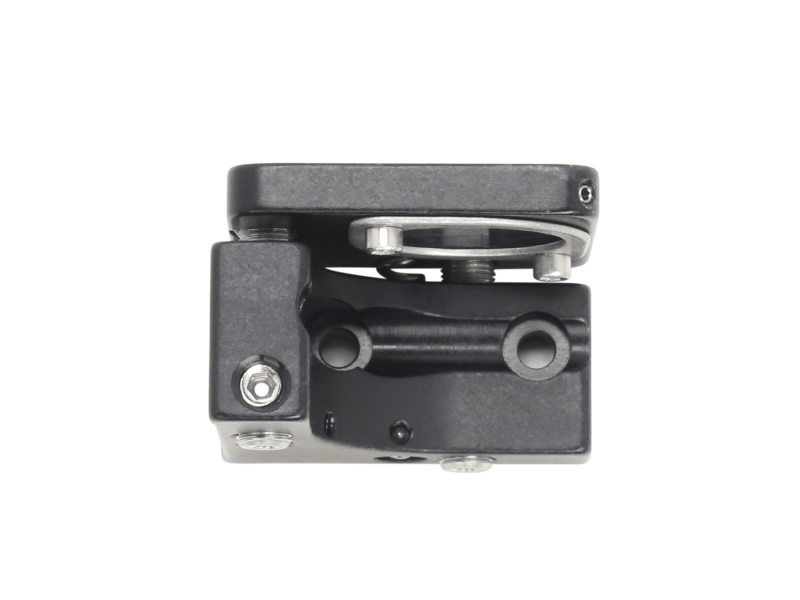

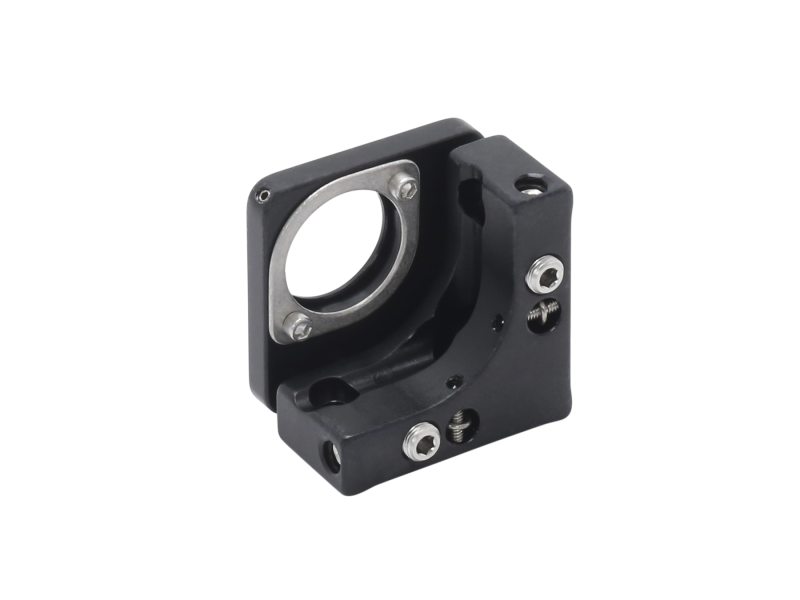

Mirror Mount, Tiny, Commercial, Corner, 0.5 in., 2 Locking Allen-Keys, Retaining Plate

Technical Specs

  • Mechanism
    Kinematic
  • Optic Diameter
    12.7 mm
  • Adjustment Screw Thread
    80 TPI
  • Adjustments
    θx, θy
  • Sensitivity
    14.3 arc sec
  • Angular Range
    ±4°
  • Material
    Anodized Aluminum
  • Drive Type
    Allen-Key, locking
  • Thread Type
    2X, 2-56 (M2) CLR
  • Optical Axis Height
    16 mm
