Mirror Mount Pack, Fixed, 25.4 mm Diameter, 8-32, A-LINE, Qty 10

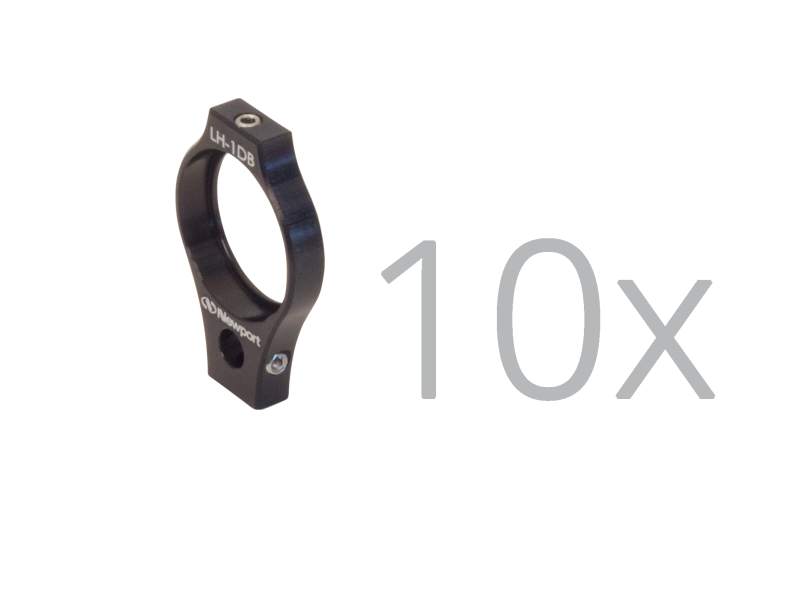

a-line fixed lens mounts with multiple lens mount sizes shown

Mirror Mount Pack, Fixed, 25.4 mm Diameter, 8-32, A-LINE, Qty 10

Model: LH-1DB-PK

$205

In Stock

Compare

Add to List

Product Series Overview

A-Line Fixed Optic Mounts

This is a 10-pack of the LH-1DB Fixed Mirror Mount. The cost-saving A-LINE™ LH-1DB Fixed Mirror Mount 10 pack is a convenient and economical solution for mounting Ø1.0 inch (25.4 mm) mirrors, beamsplitters or UPA series 1-in adaptors. The mount consists of a double-bored aperture and set screw to hold the optic firmly, but gently. The holder incorporates an 8-32 threaded mounting hole for post mounting on English SP and MSP Series posts. The front of the holder also has a special 6 mm alignment hole, which can be used with GR Series Guide Rods for fast alignment of several A-LINE™ lens mounts.

Specifications

Technical Specs

Type

Pack of Mounts
Optic Diameter

25.4 mm
Adjustments

Fixed
Optical Axis Height

31.8 mm

Thread Type

8-32
Clear Aperture

23.9 mm
Pack Quantity

10

Type

Pack of Mounts
Optic Diameter

25.4 mm
Adjustments

Fixed
Optical Axis Height

31.8 mm

Thread Type

8-32
Clear Aperture

23.9 mm
Pack Quantity

10

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

LH-1DB-349 (115.3 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
SK-25A Black Oxide Screw Kit, 1/4-20, Assortment, Qty 261	UNIVERSAL	In Stock	$72
SW-OM Spanner Wrench, Compact, 6.35 to 50.8 mm Diameter Optics	UNIVERSAL	In Stock	$67
BB-M Optical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL	In Stock	$35
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock	$19.40
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock	$38

Similar

Description	Compatibility	Avail.	Price
LH-1T Thin Lens Mount, Fixed, 25.4 mm Diameter, 8-32 Thread., A-LINE	IMPERIAL	In Stock	$20
LH-0.5A Fixed Lens Mount, 0.50 in. (12.7 mm) Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock	$19.40
LCM-1 Lens Mount, Self-Centering, 0.125-1.063 in. Diameter Lenses	IMPERIAL	In Stock	$274
LH-1A Fixed Lens Mount, 1.0 in. (25.4 mm) Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock	$19.40
LH-30M Fixed Lens Mount, 30 mm Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock	$33
VLH-1A V-Groove Lens Holder, 0.25 to 1.25 in. Diameter Lenses	UNIVERSAL	In Stock	$156
LH1-1R Optic Holder Cell, 1.0 in. Diameter Optics, Requires LM1-R Mount	UNIVERSAL	In Stock	$29
LH-3A Fixed Lens Mount, 3.0 in. (76.2 mm), 8-32 Thread, A-LINE	IMPERIAL	In Stock	$67
LPV-1 Compact Lens Positioner, XYZ θXθY, 1.0 in. Diameter, 100 TPI	UNIVERSAL	In Stock	$355
LH-CMT Fixed Lens Mount, C-Mount Camera Lens Thread (1.00-32), 8-32 Thread, A-LINE	IMPERIAL	In Stock	$35
ALM-1A Variable Size Lens Mount, 12.7-35 mm, 40 TPI XY Adjusters	UNIVERSAL	Show	$202
LH-RMS Microscope Objective Mount, Fixed, A-LINE, 0.800-36 Thread, 8-32	IMPERIAL	In Stock	$29
LT10-10 Lens Tube, 1 inch LT Series, 1 inch length	UNIVERSAL	In Stock	$22
AC-1A Variable Size Lens Mount, 5.0-46.2 mm, Thumbscrew Support Arms	UNIVERSAL	In Stock	$56
LA1V-XY Compact Lens Positioner, XY, 1.0 in. Diameter, 100 TPI	UNIVERSAL	In Stock	$183
LP-1A Precision Lens Positioner, 1.0 in., 100 TPI XYθXθY, 80 TPI Z	UNIVERSAL	In Stock	$993
LH-1.5A Fixed Lens Mount, 1.5 in. (38.1 mm) Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock	$33
LH-2A Fixed Lens Mount, 2.0 in. (50.8 mm), 8-32 Thread, A-LINE	IMPERIAL	In Stock	$35
