Compare Model Drawings, CAD & Specs Type Optic Diameter Optic Retaining Thread Thread Type Availability Price
Mirror Mount, Fixed, 12.7 mm Diameter, 8-32 Thread, A-LINE
$15.50
In Stock
Fixed Mirror Mount 12.7 mm 0.5-in. Double Bore 8-32
In Stock
Double-Bore Mount, Fixed, 25.4 mm Diameter, 8-32 Thread, A-LINE
$18
In Stock
Fixed Mirror Mount 25.4 mm 1-in. Double Bore 8-32
In Stock
Mirror Mount, Fixed, 50.8 mm Diameter, 8-32 Thread, A-LINE
$22
In Stock
Fixed Mirror Mount 50.8 mm 2-in. Double Bore 8-32
In Stock
Mirror Mount, Fixed, 12.7 mm Diameter, M4 Thread, A-LINE
$15.50
In Stock
Fixed Mirror Mount 12.7 mm 0.5-in. Double Bore M4
In Stock
Double-Bore Mount, Fixed, 25.4 mm Diameter, M4 Thread, A-LINE
$18
In Stock
Fixed Mirror Mount 25.4 mm 1-in. Double Bore M4
In Stock
Mirror Mount, Fixed, 50.8 mm Diameter, M4 Thread, A-LINE
$22
In Stock
Fixed Mirror Mount 50.8 mm 2-in. Double Bore M4
In Stock
45 Degree Optic Mount, Fixed, 25.4 mm Diameter, A-LINE
$62
In Stock
45-Degree Optic Mount 25.4 mm 1.035‐40 8-32 (M4) CLR
In Stock

For Cost-Saving 10 packs and additional accessories click here.

Features

A-Line Double-Bore Fixed Mirror Mounts

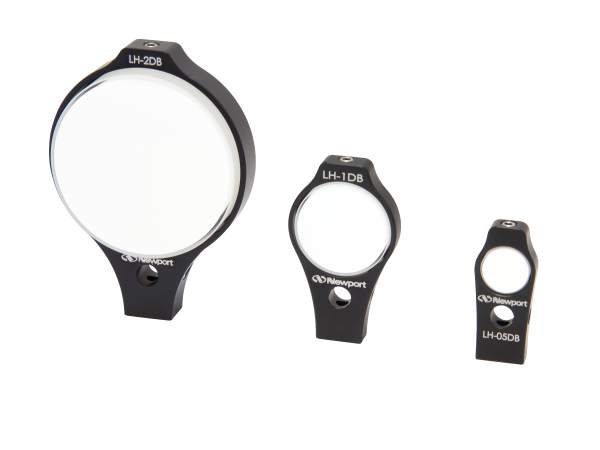

The A-Line double-bore fixed mirror mounts LH-05DB (M-LH-05DB), LH-1DB (M-LH-1DB), and LH-2DB (M-LH-2DB) provide convenient and economical solution for mounting 0.5 in. (12.7 mm), 1 in. (25.4 mm), and 2 in. (50.8 mm) mirrors, beamsplitters, or adaptors. Featuring double-bored aperture and set screws, those mounts are able to hold the optic firmly yet gently.

Versatile Mounting of Fixed Mirror Mounts

A-Line mirror mounts can be used with standard Optical Posts, or with LH-GR Series Guide Rods for fast alignment of several A-Line optic mounts.

A-Line Fixed 45 degree Optic Mount

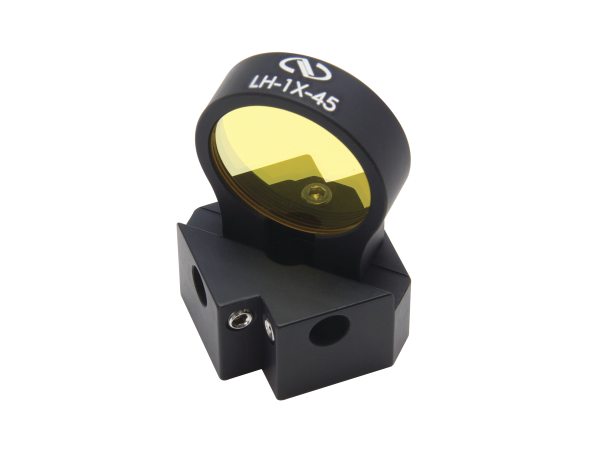

The LH-1X-45 is designed for easy 90-degree beam folding with the A-LINE™ system. The mount holds standard Ø1 in. (25.4 mm) mirrors, beam splitters and filters with a threaded retaining ring. It could be post mounted or work with LH-GR series guide rods for fast alignment of several A-Line lens mounts.

Simple Set-up with A-Line Components

Shown above are the LH-1DB and UPA-CFC fiber adaptor, the LH-RMS with microscope objective and the LH-1A with lens.

A-Line Lens Adaptors

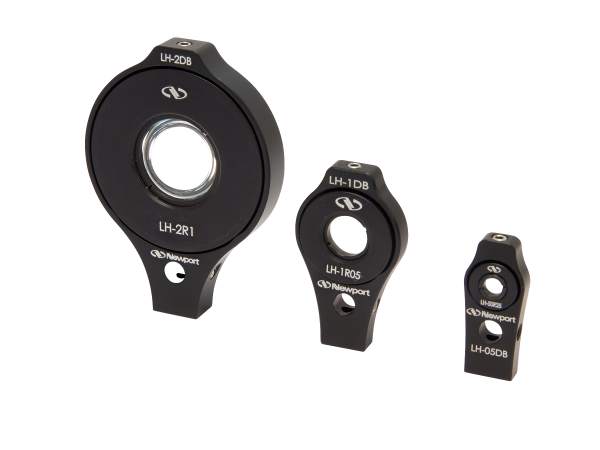

A-Line Lens Adaptors LH-2R1.5, LH-2R1, LH-1R05 and LH-50R25 allow lens to be adapted to various lens holders. For example, The LH-2R1 allows Ø1.0 in. lens to be mounted into Ø2.0 in. lens mount like the LH-2A or LH-2N or LH-2DB. The adaptors are particularly useful for mounting different size lens on the same LH-GR guide rod. These Lens adaptor also have chamfered external edges to ensure the retaining rings on host mounts are automatically centered. These adaptors also can be used with most mirror mounts and lens tubes.

A-Line Lens Adapters in LH Lens Mounts

A-Line Lens Adaptors Mounted in LH Series lens mounts.

Versatile A-Line Mounts and Adaptors

Besides lens mounts, A-Line family of mounts also include all kinds of optic mounts, key rods and adaptors.

A-Line family of mounts can be used in many different ways to build your optical beam path easily and fast. For example, one can below opto-mechanical parts to build a vertical beam path shown above using A-Line components and adaptors:

Self-Aligning Mounts Simplify Alignment and Focusing

The A-Line™ family of self-aligning mounts are designed to make mounting, aligning, and focusing lens groups fast and easy. Each lens mount is equipped with a special 6 mm alignment hole on the front. The mounts are designed to be horizontally "stacked" onto GR Series Guide Rods  -- several A-Line lens holders can be mounted together in a self-aligned row. This overview video demonstrates the easy and fast aligning process using the A-Line lens mounts.
