Mirror Mount, Fixed, 25.4 mm Diameter, M4 Thread, A-LINE

A-Line Fixed Optic Mounts

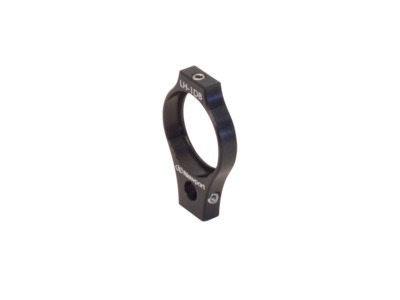

The A-LINE™ M-LH-1DB Fixed Mirror Mount is a convenient and economical solution for mounting 1.0 inch (25.4 mm) mirrors, beamsplitters or UPA series 1-in adaptors. The mount consists of a double-bored aperture and set screw to hold the optic firmly, but gently. The holder incorporates an M4 threaded mounting hole for post mounting on Metric SP and MSP Series posts. The front of the holder also has a special 6-mm alignment hole, which can be used with GR Series Guide Rods for fast alignment of several A-LINE™ lens mounts. This product is also available in 10-piece saving pack .

Specifications

Technical Specs

Type
Fixed Mirror Mount
Optic Diameter
25.4 mm
Adjustments
Fixed
Optical Axis Height
31.8 mm

Thread Type
M4
Clear Aperture
23.9 mm

Type
Fixed Mirror Mount
Optic Diameter
25.4 mm
Adjustments
Fixed
Optical Axis Height
31.8 mm

Thread Type
M4
Clear Aperture
23.9 mm

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

LH-1DB-349(115.3 kB, PDF)

Other

M-LH-1DB RoHS Certificate(278.7 kB, PDF)
M-LH-1DB_RoHS2021.pdf(682.4 kB, PDF)
