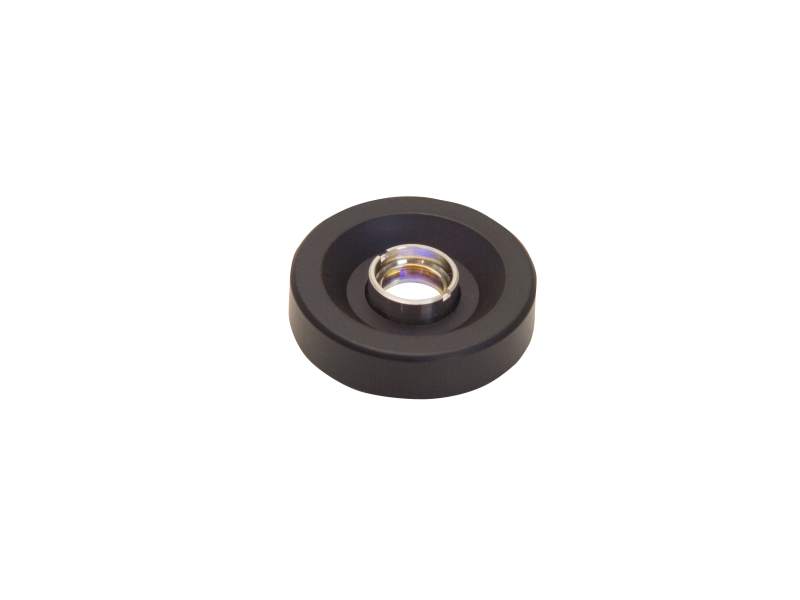

Aspherical Lens Adapter, KGA Series, M9 x 0.5 Thd.

Aspherical Lens Adapter, KGA Series, M9 x 0.5 Thd.

Model: UPA1-AS9

$29

In Stock

Compare

Add to List

Product Series Overview

Mounted Molded Glass Aspheric Lenses

The UPA1-AS9 Adapter allows the use of KGA Series Mounted Aspherical lenses with standard 1 in. diameter lens and mirror mounts. The mounting thread on this adapter is M9 x 0.5.

Specifications

Technical Specs

Optic Diameter

25.4 mm
Material

Anodized Aluminum

Special Features

Mounting adapter

Optic Diameter

25.4 mm
Material

Anodized Aluminum

Special Features

Mounting adapter

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

UPA1-AS9 AS12 (90.9 kB, PDF)

Other

UPA1-AS9_RoHS2021.pdf (685.8 kB, PDF)
