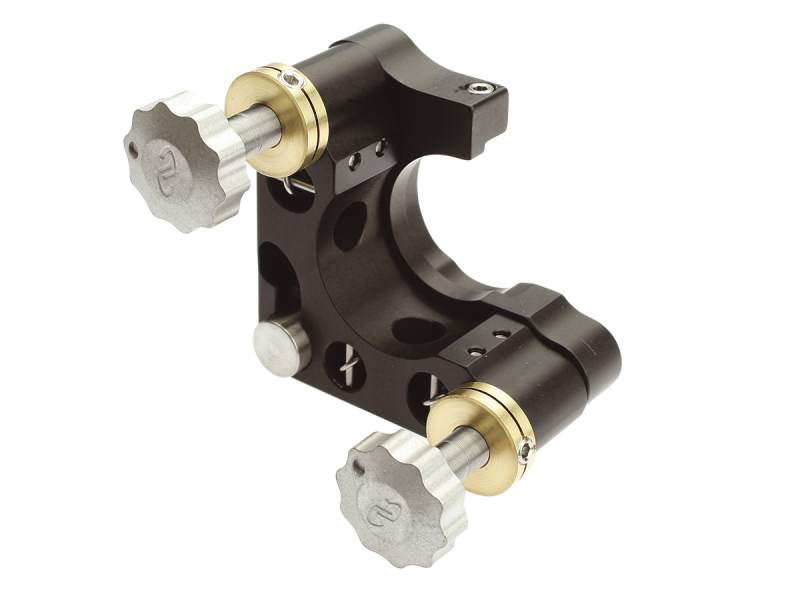

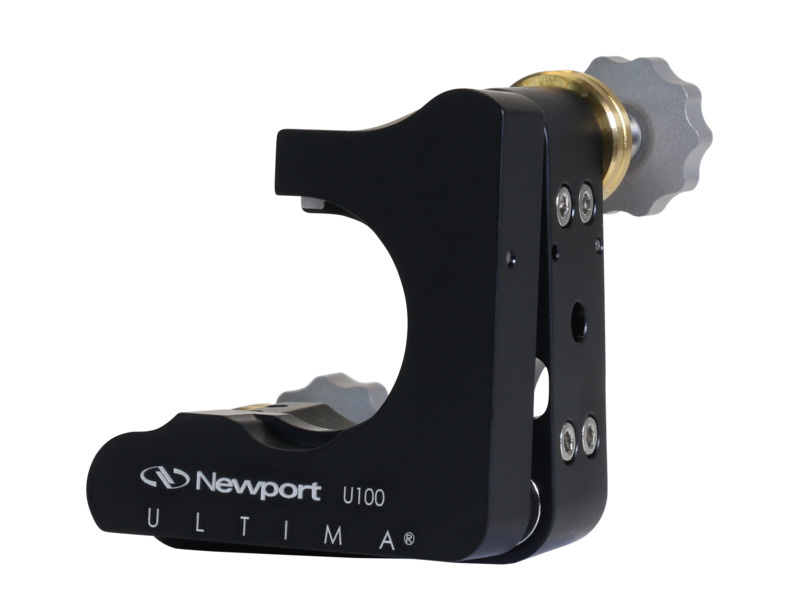

Ultima Clear Edge Mirror Mount, 1.0 in., 2 Locking Knob Adjustment

Model: U100-A2K

Ultima Clear Edge Mirror Mount, 1.0 in., 2 Locking Knob Adjustment

Model: U100-A2K

Technical Specs

  • Optic Diameter
    25.4 mm
  • Drive Type
    Knob, locking
  • Adjustments
    θx, θy
  • Sensitivity
    3.8 arc sec
  • Special Features
    Clear Edge
  • Angular Range
    ±7°
  • Adjustment Screw Thread
    100 TPI
  • Material
    Anodized Aluminum
  • Mechanism
    Kinematic
  • Thread Type
    8-32 (M4) CLR

Resources & Downloads

2D / 3D CAD Software
Drawings And Cad

Ultima Clear Edge Mirror Mount, 1.0 in., 2 Locking Knob Adjustment

Model: U100-A2K

$106
