Pivot Insert, SN/SX/SU Series Suprema® Optical Mirror Mounts
Pivot Insert, SN/SX/SU Series Suprema® Optical Mirror Mounts
Model: CP-0.5
In Stock
Product Series Overview

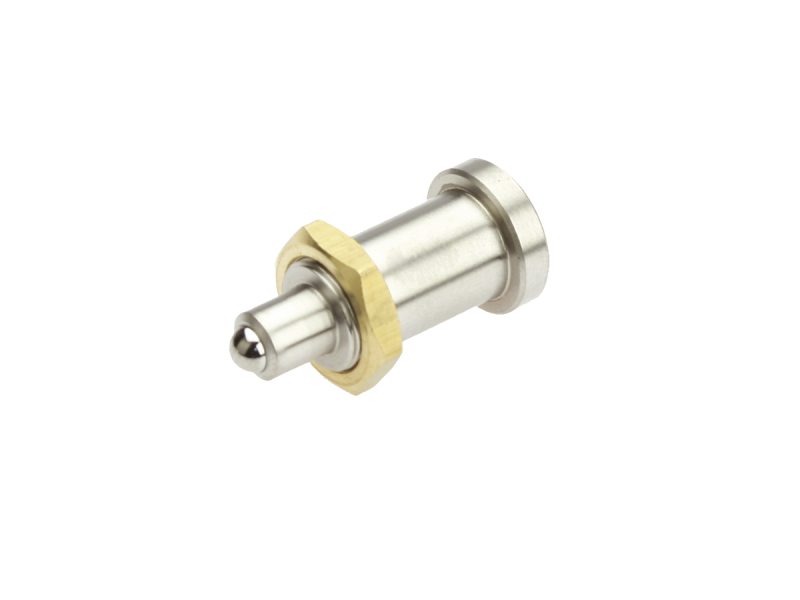

Mirror Mount Pivot InsertThe CP-0.5 Pivot Insert is used on the SN100 and 200 as well as SX100 and 200 Series Suprema® mirror mounts that are sold without actuators. This part functions as the corner pivot point and is used for creating 2-axis adjustable mirror mount configurations.
Resources & Downloads
Other
CP-0-5_RoHS2021.pdf(682.2 kB, PDF)
