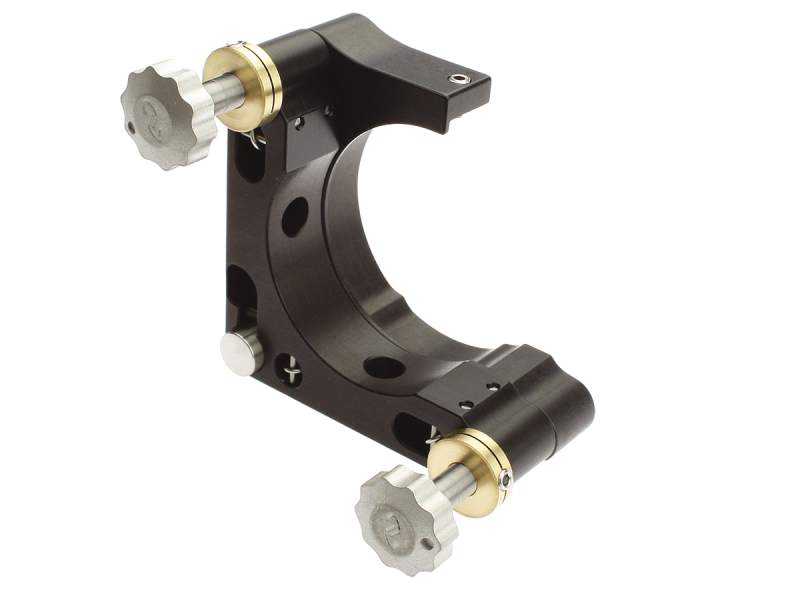

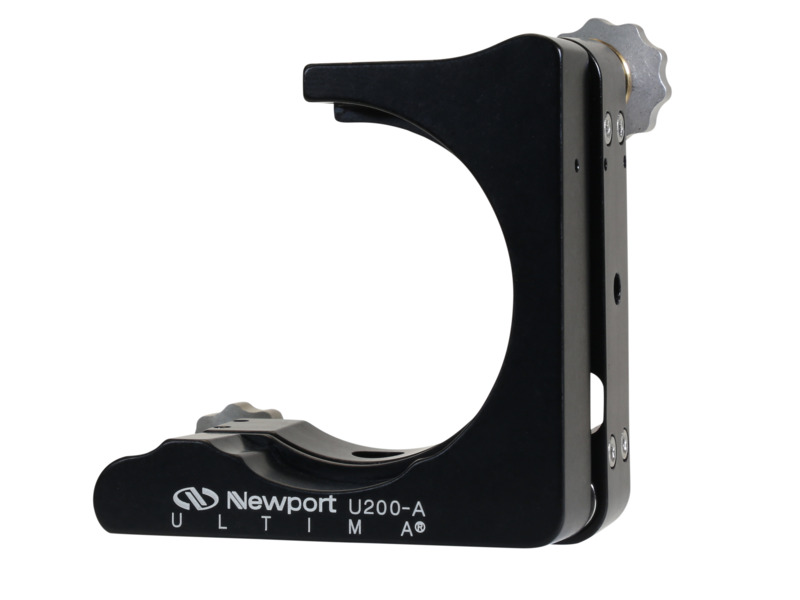

Mirror Mount, ULTIMA®, Clear Edge, 2.0 in., 2 Locking Knobs

Technical Specs

  • Mechanism
    Kinematic
  • Optic Diameter
    50.8 mm
  • Number of Actuators
    2
  • Actuator Locks
    Yes
  • Adjustment Screw Thread
    100 TPI
  • Adjustments
    θx, θy
  • Sensitivity
    2.4 arc sec
  • Angular Range
    ±5°
  • Actuator Orientation
    Right-handed
  • Optic Loading
    Front
  • Material
    Anodized Aluminum
  • Drive Type
    Knob, locking
  • Thread Type
    8-32 (M4) CLR
  • Optical Axis Height
    34.9 mm
