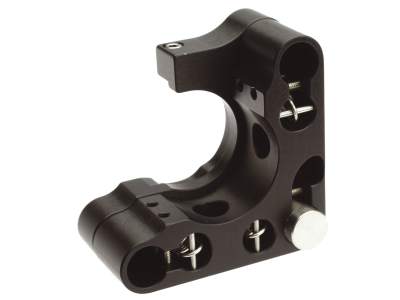

Mirror Mount, ULTIMA®, Clear Edge, 1.0 in., No Actuators, Left-Handed
The U100-A-LH ULTIMA® Clear Quadrant Left Handed Mirror Mount offers unsurpassed functionality. This optical mount for 1 inch (25.4 mm) diameter optics does not include actuators. Thick front and rear plates and optimized, stiff springs improve the long-term stability and provide greater protection against vibrations. Hard carbide pads enable smooth, repeatable motion. A large array of optical mounting accessories is available for these mounts making ULTIMA a basic building block for many optical systems. Convenient clearance mounting holes on each of two sides are compatible with either 8-32 or M4 screws providing quicker, more precise, and more secure mounting. ULTIMA mounts can be mounted to posts for adjustable height or pedestal posts for a stable fixed height.
The Clear Edge Advantage
With the Clear Edge design, beams can be reflected from one mount to another at smaller incident angles (Φ) taking less space between the mounts (d). Clear Edge Mounts are also ideal for compensating for pulse dispersion effects through multiple reflections on Chirped Mirrors.
Replaceable Actuators
The ULTIMA's industry-standard clamp design allows many different types of actuators to be used to adjust the mirror position to meet the requirements for any application. Actuators can be replaced with ease by simply loosening two screws to allow the actuator to gently slide into and out of the mount. ULTIMA mounts are compatible not only with standard knob and hex-key adjustment screws, but also with micrometers and motorized actuators. See our Recommended Compatible Actuators in the Accessories section below.
Right- and Left-Handed Options
Select models are available in both right- and left-handed versions: U100-A2K and U100-A-LH-2K, U100-A3K and U100-A-LH-3K. They are essentially mirror images of each other to provide flexibility and convenience in optical system setups.
Extra Thick Frame
ULTIMA mounts have extra thick frames for optimal stiffness and exceptional stability. The additional stiffness lowers deflection during adjustment, allowing fast and easy alignment.
Specifications
-
Mechanism
Kinematic
-
Optic Diameter
25.4 mm
-
Number of Actuators
0
-
z, θx, θy
-
Actuator Orientation
Left-handed
-
Optic Loading
Front
-
Material
Anodized Aluminum
-
Not Included
-
Thread Type
8-32 (M4) CLR
-
Optical Axis Height
25.4 mm
-
Special Features
Left-handed
-
Mechanism
Kinematic
-
Optic Diameter
25.4 mm
-
Number of Actuators
0
-
z, θx, θy
-
Actuator Orientation
Left-handed
-
Optic Loading
Front
-
Material
Anodized Aluminum
-
Not Included
-
Thread Type
8-32 (M4) CLR
-
Optical Axis Height
25.4 mm
-
Special Features
Left-handed
