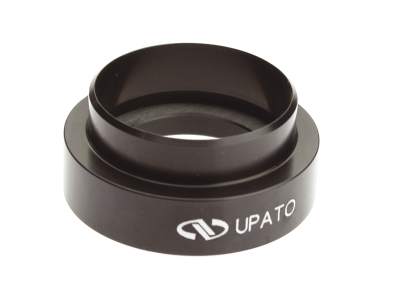

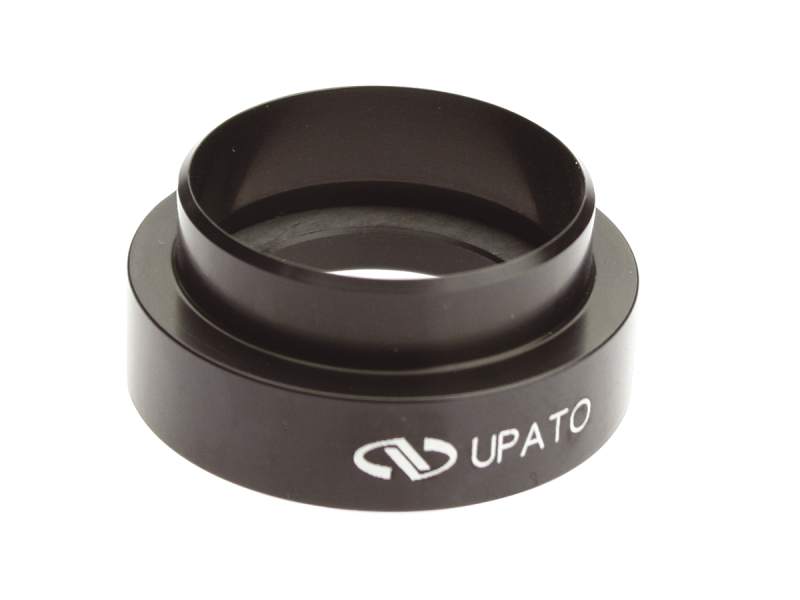

Thin Optics Adapter, 1.0 in. (25.4 mm) Diameter

Specialty Mirror Mount Adapters

This Thin Optic Adapter inserts into U100-A aperture mounts and provides a secure method of mounting thin 1 inch (25.4 mm) diameter optics.

Specifications

Technical Specs

Optic Diameter
25.4 mm
Material
Anodized Aluminum
Special Features
Mounting adapter

Optic Diameter
25.4 mm
Material
Anodized Aluminum
Special Features
Mounting adapter

Resources & Downloads

2D Product Drawings

UPATODWG-S(76.6 kB, PDF)

Other

UPATO RoHS Certificate(274.8 kB, PDF)
UPATO_RoHS2021.pdf(679.8 kB, PDF)
