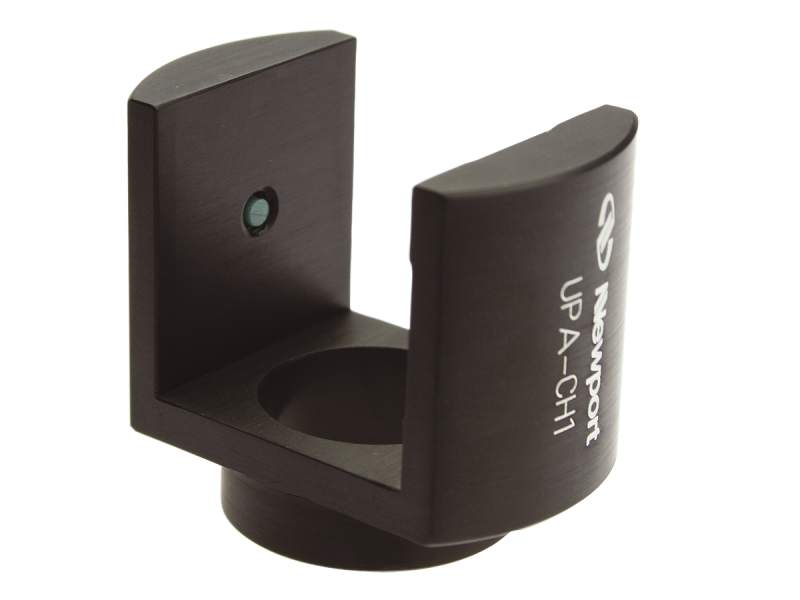

Cube Beamsplitter Holder, 1.0 in. Cubes, For 1.0 in. Mirror Mounts

Model: UPA-CH1

$101

In Stock

Compare

Add to List

Product Series Overview

Cube Beamsplitter Holders

The UPA-CH1 Cube Beamsplitter Holder allows 1.0 inch (25.4 mm) cube beamsplitters to be mounted to a 1.0 inch (25.4 mm) mirror mount. They have a clear aperture to allow a transmissive beam to pass through the mount.

Specifications

Technical Specs

Optic Diameter

25.4 mm
Material

Anodized Aluminum

Special Features

Mounting adapter

Optic Diameter

25.4 mm
Material

Anodized Aluminum

Special Features

Mounting adapter

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

UPA-CH1-S (74.3 kB, PDF)

Other

UPA-CH1_RoHS2021.pdf (681.9 kB, PDF)
