45 Degree Optic Mount, Fixed, 25.4 mm Diameter, A-LINE
45 Degree Optic Mount, Fixed, 25.4 mm Diameter, A-LINE
Model: LH-1X-45
Product Series Overview

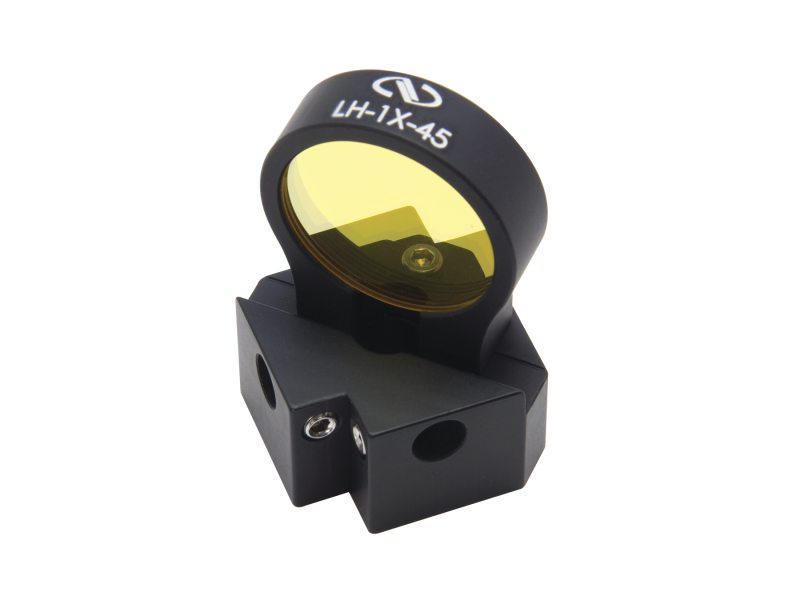

A-Line Fixed Optic MountsThe LH-1X-45 is a fixed optic mount designed for making 90-degree beam folds with the A-LINE™ system. The mount holds standard Ø1 in. (25.4 mm) mirrors, beam splitters and filters with a threaded retaining ring . It is designed to be mounted on LH-GR guide rods but can also be post mounted as well.
Resources & Downloads
Other
LH-1X-45 RoHS Certificate(278.4 kB, PDF) LH-1X-45_RoHS2021.pdf(681.6 kB, PDF)
2D Product Drawings
LH-1X-45 DWG.pdf(121.1 kB, PDF)
Related Products
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | SW-OMSpanner Wrench, Compact, 6.35 to 50.8 mm Diameter Optics | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | LT10-WRSpanner Wrench, 1 inch LT Series Lens Tubes | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | LT10-RRRetaining Ring, 22.9 mm ID, 1.035-40 Thread | 1 Week | ||||
 | LH1-ATNAlignment Target, Insertable, A-Line | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

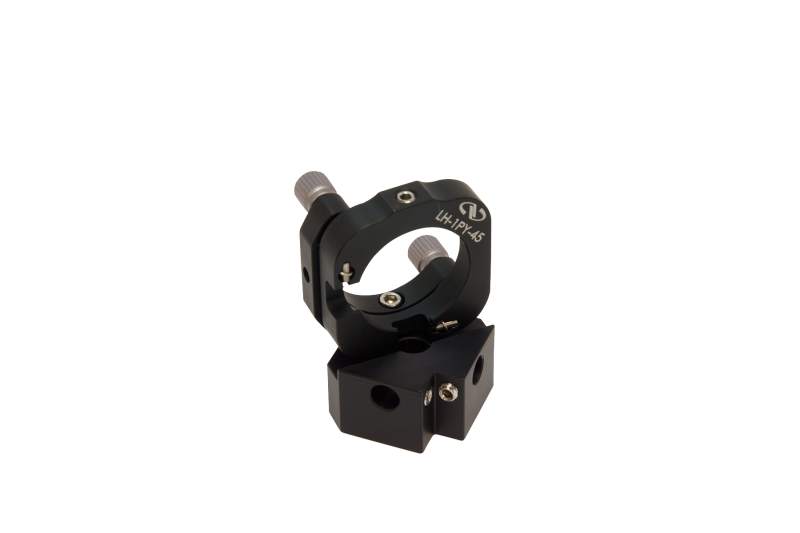

 | LH-1PY-45Kinematic Mirror Mount, 45 Degree, 25.4 mm, Rear Load, CenterPoint, A-LINE | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
