Fixed Lens Mount, C-Mount Camera Lens Thread (1.00-32), 8-32 Thread, A-LINE

A-Line™ Objective and C-Mount Lens Mounts

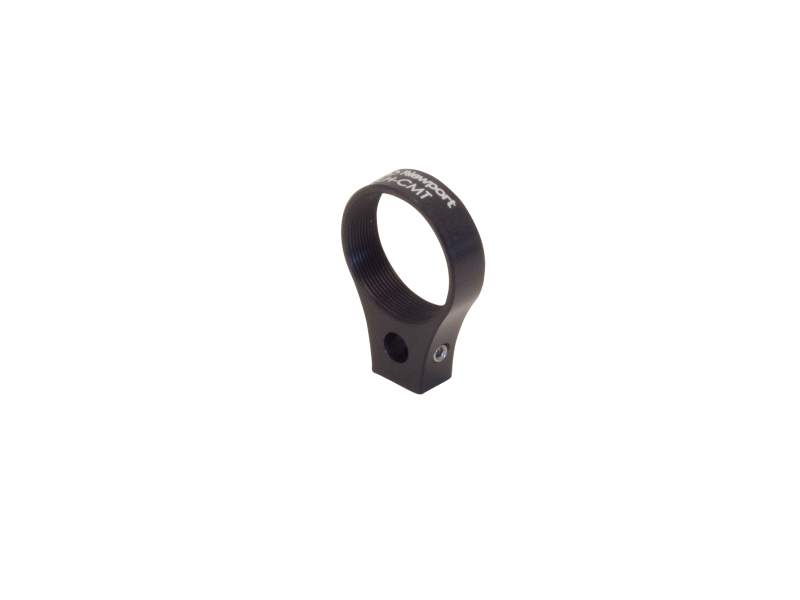

The A-LINE™ LH-CMT C-Mount Camera Lens holder is a convenient and economical solution for fixed mounting of Camera Lenses with 1.00-32 threads. The holder incorporates an 8-32 threaded mounting hole for post mounting on both English SP and MSP Series posts. The front of the holder also has a special 6-mm alignment hole, which can be used with GR Series Guide Rods for fast alignment of several A-LINE™ lens mounts.

Specifications

Technical Specs

Type
Optic Adaptor
Adjustments
Fixed
Optic Diameter
C-Mount
Optical Axis Height
31.8 mm

Thread Type
8-32
Optic Retaining Thread
1.000‐32

Type
Optic Adaptor
Adjustments
Fixed
Optic Diameter
C-Mount
Optical Axis Height
31.8 mm

Thread Type
8-32
Optic Retaining Thread
1.000‐32

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

LH-A(128.2 kB, PDF)

Other

LH-CMT RoHS Certificate(278.5 kB, PDF)
LH-CMT_RoHS2021.pdf(683.5 kB, PDF)
