Light Shield System, Connector, Internal Corner, 12 in. Height

Model: ELM-CL

$44

In Stock

Compare

Add to List

Product Series Overview

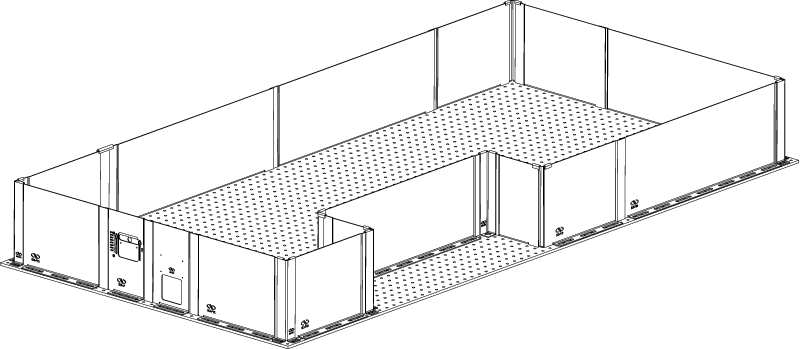

Perimeter Light Shields

The ELM-CL corner connector is used to build a light-blocking enclosure. This item is used to connect two 12-inch-tall ELM Light Shield Plates in a right-angle corner. The mounting slots are located on the interior of the corner. Create what you need for your setup assured the pieces are made to work together.

Specifications

Technical Specs

Type

Corner
Material

Anodized Aluminum

Height

304.8 mm

Type

Corner
Material

Anodized Aluminum

Height

304.8 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

ELM-CL.PDF (19.1 kB, PDF)

Other

ELM-CL_RoHS2021.pdf (682.2 kB, PDF)
