VIBe™ VIP100 Super Compact Mechanical Vibration Isolation Platforms

Products
Features
Contact Us

Overview

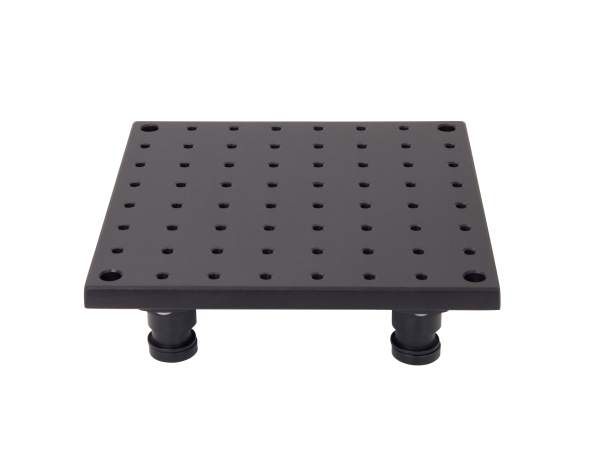

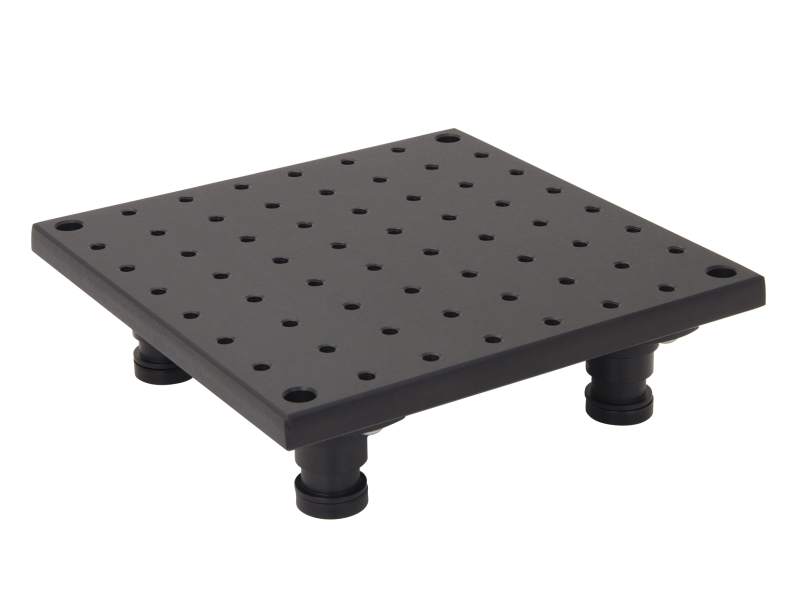

Featuring VIBe™ mechanical vibration isolation technology, VIP100 series platform consists of an aluminum plate with mounting holes supported by VIB100 isolators. It is similar to VIP320 but with a super compact footprint. It provides good isolation both vertically and horizontally starting at 10 Hz.

Aluminum platform for isolating loads up to 35 lbs
Ideal for compact applications that require a small footprint
Integrated with 1 in. VIB100 isolators that isolate from 10Hz
Mechanical vibration isolation, no air hoses or compressor needed

See All Features

Products

Showing 14 of 14 total products

Compatibility:

Show entries

Search:

Compare	Model		Thread Type	Width	Length	Minimum Platform Load	Load Capacity	Availability	Price	Brand
VIP100-0808-0518 Vibration Isolation Platform, Mechanical, 8 x 8 in., 5-18 lb. $901.00 Contact Us	VIP100-0808-0518 Vibration Isolation Platform, Mechanical, 8 x 8 in., 5-18 lb.	1.0	1/4-20	8 in.	8 in.	5 lb	18 lb	Contact Us	$901.00	Newport
VIP100-0808-1845 Vibration Isolation Platform, Mechanical, 8 x 8 in., 18-45 lb. $901.00 3 Weeks	VIP100-0808-1845 Vibration Isolation Platform, Mechanical, 8 x 8 in., 18-45 lb.	2.0	1/4-20	8 in.	8 in.	18 lb	45 lb	3 Weeks	$901.00	Newport
VIP100-1212-0315 Vibration Isolation Platform, Mechanical, 12 x 12 in., 3-15 lb. $1,002.00 3 Weeks	VIP100-1212-0315 Vibration Isolation Platform, Mechanical, 12 x 12 in., 3-15 lb.	3.0	1/4-20	12 in.	12 in.	3 lb	15 lb	3 Weeks	$1,002.00	Newport
VIP100-1212-1543 Vibration Isolation Platform, Mechanical, 12 x 12 in.,15-43 lb. $1,002.00 3 Weeks	VIP100-1212-1543 Vibration Isolation Platform, Mechanical, 12 x 12 in.,15-43 lb.	4.0	1/4-20	12 in.	12 in.	15 lb	43 lb	3 Weeks	$1,002.00	Newport
VIP100-1218-0010 Vibration Isolation Platform, Mechanical, 12 x 18 in., 0-10 lb. $1,052.00 3 Weeks	VIP100-1218-0010 Vibration Isolation Platform, Mechanical, 12 x 18 in., 0-10 lb.	5.0	1/4-20	18 in.	12 in.	0 lb	10 lb	3 Weeks	$1,052.00	Newport
VIP100-1218-1239 Vibration Isolation Platform, Mechanical, 12 x 18 in., 12-39 lb. $1,052.00 3 Weeks	VIP100-1218-1239 Vibration Isolation Platform, Mechanical, 12 x 18 in., 12-39 lb.	6.0	1/4-20	18 in.	12 in.	12 lb	39 lb	3 Weeks	$1,052.00	Newport
VIP100-1818-0835 Vibration Isolation Platform, Mechanical, 18 x 18 in, 8-35 lb. $1,052.00 3 Weeks	VIP100-1818-0835 Vibration Isolation Platform, Mechanical, 18 x 18 in, 8-35 lb.	7.0	1/4-20	18 in.	18 in.	8 lb	35 lb	3 Weeks	$1,052.00	Newport
M-VIP100-0808-0518 Vibration Isolation Platform, Mechanical, 200 x 200 mm, 2.3-8.2 kg $901.00 3 Weeks	M-VIP100-0808-0518 Vibration Isolation Platform, Mechanical, 200 x 200 mm, 2.3-8.2 kg	11.0	M6	200 mm	200 mm	2.3 kg	8.2 kg	3 Weeks	$901.00	Newport
M-VIP100-0808-1845 Vibration Isolation Platform, Mechanical, 200 x 200 mm, 8.2-20.4 kg $901.00 3 Weeks	M-VIP100-0808-1845 Vibration Isolation Platform, Mechanical, 200 x 200 mm, 8.2-20.4 kg	12.0	M6	200 mm	200 mm	8.2 kg	20.4 kg	3 Weeks	$901.00	Newport
M-VIP100-1212-0315 Vibration Isolation Platform, Mechanical, 300 x 300 mm, 1.4-6.8 kg $1,002.00 3 Weeks	M-VIP100-1212-0315 Vibration Isolation Platform, Mechanical, 300 x 300 mm, 1.4-6.8 kg	13.0	M6	300 mm	300 mm	1.4 kg	6.8 kg	3 Weeks	$1,002.00	Newport

Showing 1 to 010 of 14 entries

Previous1 2Next

Show All

Specifications

Features

VIBe™ Mechanical Vibration Isolation Technology

The patented mechanical isolation technology features six degree of freedom isolator design to work within a defined range of weight under which the isolators deflect or compress. The amount of deflection is a function of the payload on each isolator. Vertical and horizontal vibration is effectively attenuated and your precision application is isolated from the vibration. It is a great alternative solution for applications that are not suitable for pneumatic isolation.

Superior Mechanical Design Ensures Vibration Isolation Performance

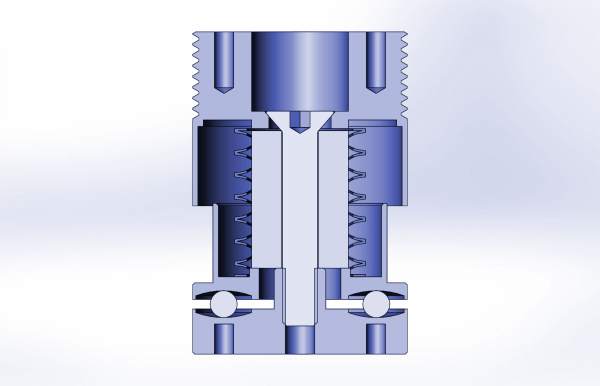

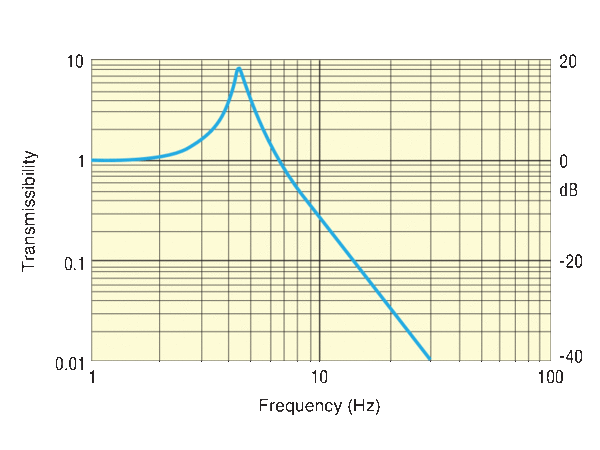

VIBe™ technology works in horizontal direction by utilizing ball bearings sandwiched between precision raceways, forming the plane of isolation. The balls that displace between the raceways due to micro-vibrations are restored to the neutral position by gravity, which acts as a non-linear spring. Since the spring force (i.e., the restoring force) is non-linear, it is constant and independent of the frequency and amplitude of the input vibrations, meaning the balls’ oscillating motion has no “natural” frequency. Instead, the motion has an infinite number of frequencies, one for each increment of displacement, which makes the resonance between the two halves of the plane of isolation physically impossible. As a result, the isolator filters out a broad band of input vibration frequencies and ensures a constant level of vibration transmission reduction.

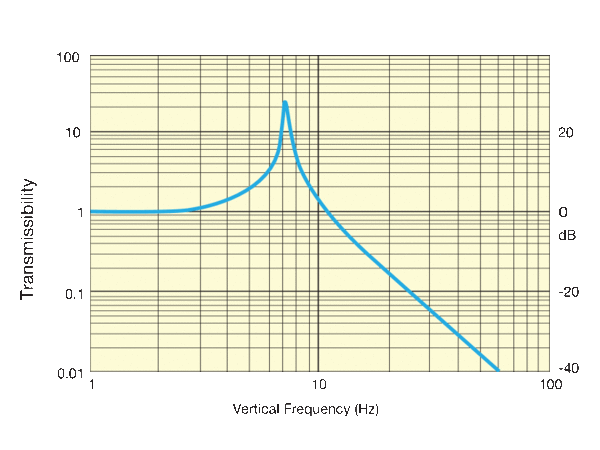

Vertical vibration isolation is addressed by the Newport's proprietary, nonlinear spring mechanism with near zero tangential stiffness for vibrations. The natural frequency of the spring remains relatively low and constant across a large range of spring compression, effectively isolating the vertical vibrations.

Super Compact Design

The VIP100 platform is designed specifically for applications that require small footprint. The VIB100 isolators used to support the aluminum plate are 1 inch diameter, and the aluminum plate sizes are from as compact as 8 in. x 8 in. to accommodate for the most tight spaces in OEM and research applications.
