Overview

Semi-rimless laser safety frames wrap-around the face to encompass your eyes with lens curvature for full coverage.

Featherweight frame you can wear all day
Wrap-around lens for uninterrupted peripheral vision and superior coverage
Comfort fit temples
Meets ANSI Z136.1, Z87+ (high impact), EN207, and EN208

See All Features

Products

Compare	Model	Compatibility	rankScore	Frame Style	Lens Material	CE	Availability	Price	Brand

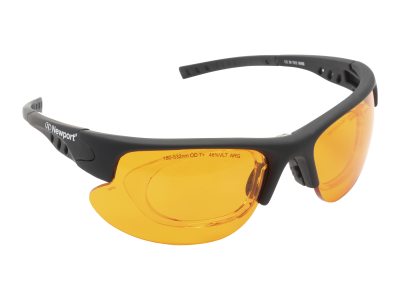

N-ARG-34 Lasersport Safety Glasses, Argon & 532 nm Laser Wavelengths $125 4 Weeks	N-ARG-34 Lasersport Safety Glasses, Argon & 532 nm Laser Wavelengths	UNIVERSAL	1.0	Lasersport	Polycarbonate	Yes	4 Weeks	$125	Newport

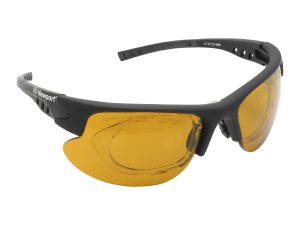

N-DBY-34 Lasersport Safety Glasses, ND:YAG & Harmonics, CO2, Excimer, Diode, GaAs $260 In Stock	N-DBY-34 Lasersport Safety Glasses, ND:YAG & Harmonics, CO2, Excimer, Diode, GaAs	UNIVERSAL	1.0	Lasersport	Polycarbonate	Yes	In Stock	$260	Newport

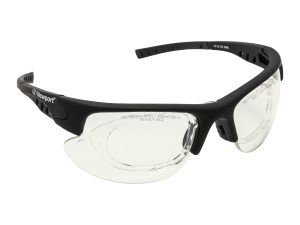

N-EC2-34 Lasersport Safety Glasses, CO2 Laser Wavelengths $155 In Stock	N-EC2-34 Lasersport Safety Glasses, CO2 Laser Wavelengths	UNIVERSAL	1.0	Lasersport	Polycarbonate	Yes	In Stock	$155	Newport

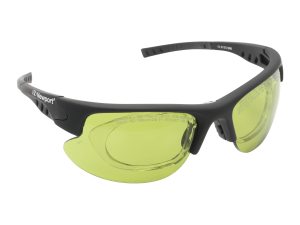

N-ML1-34 Lasersport Safety Glasses, 800 nm Diode and YAG Laser Wavelengths $230 In Stock	N-ML1-34 Lasersport Safety Glasses, 800 nm Diode and YAG Laser Wavelengths	UNIVERSAL	1.0	Lasersport	Polycarbonate	Yes	In Stock	$230	Newport

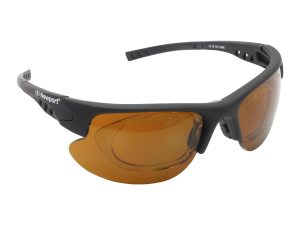

N-YAD-34 Lasersport Safety Glasses, Argon and NdGa:YAG Laser Wavelengths $365 4 Weeks	N-YAD-34 Lasersport Safety Glasses, Argon and NdGa:YAG Laser Wavelengths	UNIVERSAL	1.0	Lasersport	Polycarbonate	Yes	4 Weeks	$365	Newport

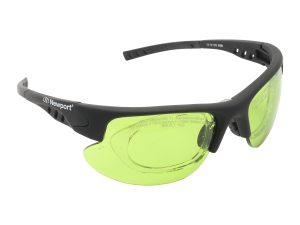

N-YG3-34 Lasersport Safety Glasses, Nd:YAG Laser Wavelengths $200 In Stock	N-YG3-34 Lasersport Safety Glasses, Nd:YAG Laser Wavelengths	UNIVERSAL	1.0	Lasersport	Polycarbonate	Yes	In Stock	$200	Newport
N-YG4-34 Lasersport Safety Glasses, Nd:YAG Laser Wavelength $285 In Stock	N-YG4-34 Lasersport Safety Glasses, Nd:YAG Laser Wavelength	UNIVERSAL	1.0	Lasersport	Polycarbonate	Yes	In Stock	$285	Newport
N-YGN-34 Lasersport Safety Glasses, Nd:YAG, 532 nm Alignment Laser Wavelengths $255 Contact Us	N-YGN-34 Lasersport Safety Glasses, Nd:YAG, 532 nm Alignment Laser Wavelengths	UNIVERSAL	1.0	Lasersport	Polycarbonate	Yes	Contact Us	$255	Newport

Show All

Specifications

Frame Style

Semi-Rimless
Lens Material

Polycarbonate

CE

Yes

Model	Filter Color	Visible Light Transmission	Laser Type	Optical Density	EN207
N-ARG-34	Orange	48%	Argon 532nm	OD7+ @ 180-532 nm	180–315 nm (D LB7 + IR LB4) >315–532 nm (DIRM LB6)
N-DBY-34	Amber	35%	Nd:YAG CO2 Excimer Diodes GaAs	OD 7+ @ 190–534 nm OD 5+ @ 850–925 nm OD 6+ @ 925–1070 nm OD 7+ @ 960–1064 nm	180–315 nm (D LB7 + R LB4) >315–534 nm (D LB5 + IRM LB6) 850–925 nm (D IRM LB5) >925–980 nm (D LB5 + IRM LB6) >980–1064 nm (D LB6 + IRM LB7) >1064–1085 nm (D IRM LB5)
N-EC2-34	Clear	93%	CO2	OD7+ @ 190-398 nm OD7+ @ 9,000-11,000 nm	190–315 nm (D LB7 + IR LB4) >315–398 nm (DIRM LB5) 9,000–11,000 nm (DI LB3)
N-ML1-34	Green	45%	800 nm diode YAG	OD5+ @ 190-420 nm OD5+ @ 765-1100 nm OD6+ @ 775-1085 nm OD7+ @ 790-1080 nm	190–315 nm (D LB8 + IR LB4) >315–420 nm (DIR LB5) >420–445 nm (DIR LB4) 765–1100 nm (DIRM LB5) 775–1085 nm (D LB5 + IRM LB6) 790–1080 nm (D LB6 + IRM LB7) 950–1085 nm (DIRM LB6)
N-YAD-34	Amber	11%	Argon NdGa:YAG	OD7+ @ 180-534 nm OD5+ @ 720-730 nm 6+ @ >730-740 nm OD7+ @ >740-1070 nm	180–315 nm (D LB7 + R LB4) >315–534 + 730–740 D nm (LB5 + IRM LB6) >740–1070 nm (D LB6 + IRM LB7)
N-YG3-34	Green	59%	Nd:YAG	OD5+ @ 190-400 nm OD4+ @ 808-840 nm OD5+ @ >840-950 nm OD7+ @ >950-1080 nm OD5+ @ >1080-1090	190–315 nm (D LB8 + IR LB4 + M LB6Y) >315–425 nm (DIRM LB5) 790–<808 nm (DIRM LB3) 808–840 nm (DIRM LB4) >840–950 nm (DIRM LB5) >950–1080 nm (D LB6 + IRM LB7) 1080–1090 nm (DIRM LB5)
N-YG4-34	Green	37%	Nd:YAG	OD6+ @ 190-400 nm OD6+ @750-1120 nm OD7+ @ 800-1100 nm	180–315 nm (D LB7 + IR LB4) 750–800 + >1100–1120 nm (DIR LB6 + M LB6Y) >800–1100 nm (D LB6 + IR LB7 + M LB7Y)
N-YGN-34	Amber	33%	Nd:YAG 532nm Alignment	OD5+ @ 190-400 nm OD3+ @ 532 nm OD4+ @ 808-850 nm OD5+ @ >850-1075 nm OD6+ @ 910-980 nm OD7+ @ >980-1070 nm	180–315 nm (D LB7 + IR LB4) >315–390 nm (DIRM LB5) 808–850 nm (DIR LB4) >850–1075 nm (DIR LB5) 910–1070 nm (DIR LB6 + M LB6Y) 1W 2*10E-4J 532 nm (RB3)

Specifications

Frame Style

Semi-Rimless
Lens Material

Polycarbonate

CE

Yes

Model	Filter Color	Visible Light Transmission	Laser Type	Optical Density	EN207
N-ARG-34	Orange	48%	Argon 532nm	OD7+ @ 180-532 nm	180–315 nm (D LB7 + IR LB4) >315–532 nm (DIRM LB6)
N-DBY-34	Amber	35%	Nd:YAG CO2 Excimer Diodes GaAs	OD 7+ @ 190–534 nm OD 5+ @ 850–925 nm OD 6+ @ 925–1070 nm OD 7+ @ 960–1064 nm	180–315 nm (D LB7 + R LB4) >315–534 nm (D LB5 + IRM LB6) 850–925 nm (D IRM LB5) >925–980 nm (D LB5 + IRM LB6) >980–1064 nm (D LB6 + IRM LB7) >1064–1085 nm (D IRM LB5)
N-EC2-34	Clear	93%	CO2	OD7+ @ 190-398 nm OD7+ @ 9,000-11,000 nm	190–315 nm (D LB7 + IR LB4) >315–398 nm (DIRM LB5) 9,000–11,000 nm (DI LB3)
N-ML1-34	Green	45%	800 nm diode YAG	OD5+ @ 190-420 nm OD5+ @ 765-1100 nm OD6+ @ 775-1085 nm OD7+ @ 790-1080 nm	190–315 nm (D LB8 + IR LB4) >315–420 nm (DIR LB5) >420–445 nm (DIR LB4) 765–1100 nm (DIRM LB5) 775–1085 nm (D LB5 + IRM LB6) 790–1080 nm (D LB6 + IRM LB7) 950–1085 nm (DIRM LB6)
N-YAD-34	Amber	11%	Argon NdGa:YAG	OD7+ @ 180-534 nm OD5+ @ 720-730 nm 6+ @ >730-740 nm OD7+ @ >740-1070 nm	180–315 nm (D LB7 + R LB4) >315–534 + 730–740 D nm (LB5 + IRM LB6) >740–1070 nm (D LB6 + IRM LB7)
N-YG3-34	Green	59%	Nd:YAG	OD5+ @ 190-400 nm OD4+ @ 808-840 nm OD5+ @ >840-950 nm OD7+ @ >950-1080 nm OD5+ @ >1080-1090	190–315 nm (D LB8 + IR LB4 + M LB6Y) >315–425 nm (DIRM LB5) 790–<808 nm (DIRM LB3) 808–840 nm (DIRM LB4) >840–950 nm (DIRM LB5) >950–1080 nm (D LB6 + IRM LB7) 1080–1090 nm (DIRM LB5)
N-YG4-34	Green	37%	Nd:YAG	OD6+ @ 190-400 nm OD6+ @750-1120 nm OD7+ @ 800-1100 nm	180–315 nm (D LB7 + IR LB4) 750–800 + >1100–1120 nm (DIR LB6 + M LB6Y) >800–1100 nm (D LB6 + IR LB7 + M LB7Y)
N-YGN-34	Amber	33%	Nd:YAG 532nm Alignment	OD5+ @ 190-400 nm OD3+ @ 532 nm OD4+ @ 808-850 nm OD5+ @ >850-1075 nm OD6+ @ 910-980 nm OD7+ @ >980-1070 nm	180–315 nm (D LB7 + IR LB4) >315–390 nm (DIRM LB5) 808–850 nm (DIR LB4) >850–1075 nm (DIR LB5) 910–1070 nm (DIR LB6 + M LB6Y) 1W 2*10E-4J 532 nm (RB3)

Features

Glasses Designed to Offer Complete Laser Protection

The advanced filter technology implemented in these glasses ensures maximum visibility with unsurpassed attenuation at specific laser wavelengths. The transmission curve for each model can be found by clicking on the model number in the order or specification table.
